10KN-150KN Wire Rope Pulley Block Casting Construction Hoisting Tackle

Large Image : 10KN-150KN Wire Rope Pulley Block Casting Construction Hoisting Tackle Get Best Price

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Suntech
Model Number:	QH1X1

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7-15days
Payment Terms:	L/C,T/T
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Sheave:	1	Rated Load:	10KN-150KN
Roller Dia:	100mm-280mm	Roller Width:	31mm-64mm
Max.Rope Diameter:	7.7mm-21.5mm	Weight:	3KG-41KG
Highlight:	150KN Wire Rope Pulley Block , 10KN Wire Rope Pulley Block , Casting Construction Hoisting Tackle

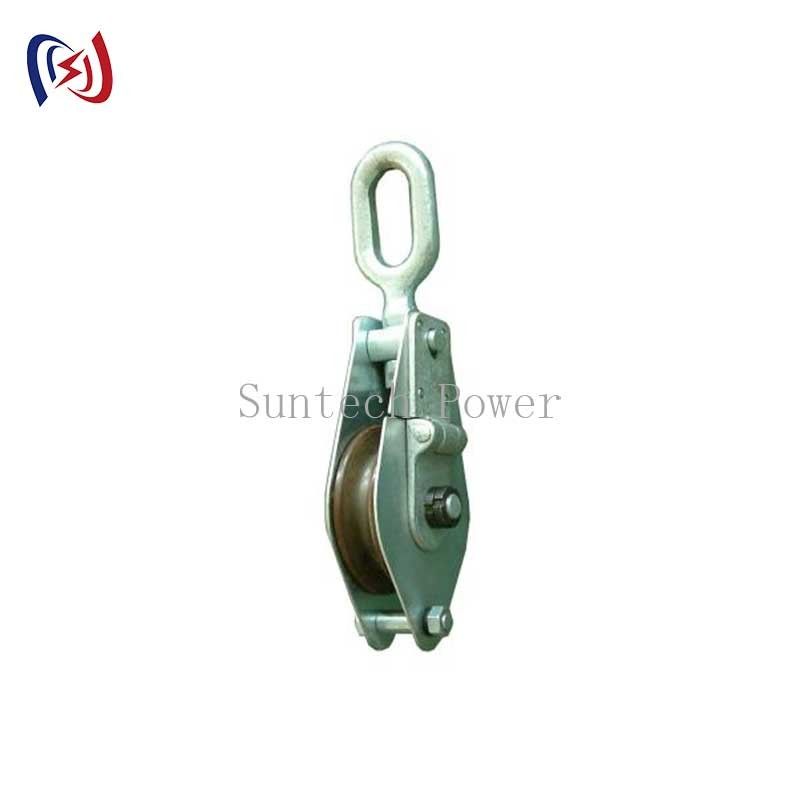

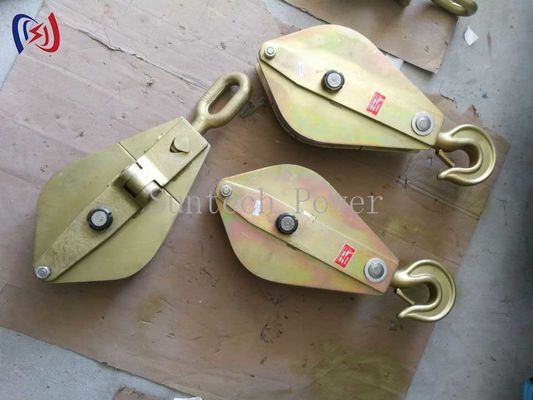

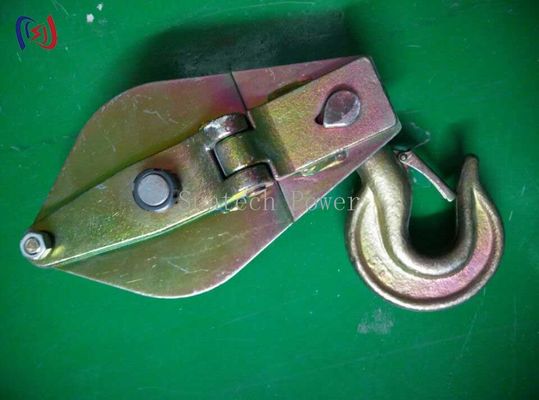

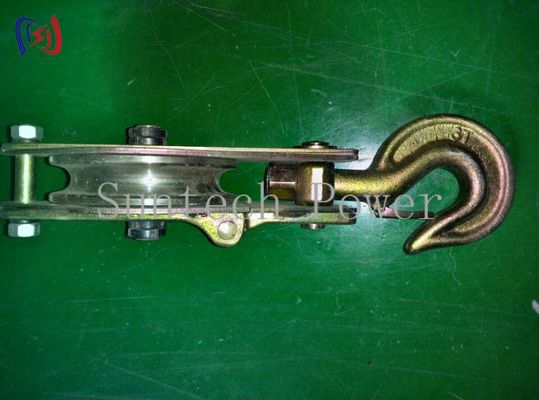

10KN-150KN Wire Rope Pulley Block Casting Construction Hoisting Tackle

Casting Steel Wheel Sheave Hook Type Hoisting Lifting Block Cable Pulling Pulley Construction Hoisting Tackle

Application

Designed for tower assembly, line construction hoist devices, and various hoisting operations.

Product Specifications

Hanger options include hook type, plate type, and ring type. Please specify your requirement when ordering.

Key Features

Material: High-quality steel construction
Single wheel type available in open hook or loop configurations
Double/triple wheel types feature closed loop design
Durable steel construction with lightweight design

Technical Specifications

Item Number	Model	Number of Sheaves	Rated Load (kN)	Roller Dia×Width (MM)	MAX. Rope Diameter (mm)	Weight (kg)
11301	QHL1x1	1	10	Φ100×31	Φ8	2
11302	QHL1x2	2	10	Φ80×27	Φ6	2
11303	QHL1x3	3	10	Φ80×27	Φ6	2
11311	QHL2x1	1	20	Φ120×35	Φ10	3
11312	QHL2x2	2	20	Φ100×31	Φ8	3
11313	QHL2x3	3	20	Φ100×31	Φ8	4
11321	QHL3x1	1	30	Φ150×39	Φ11	4
11322	QHL3x2	2	30	Φ120×35	Φ10	4
11323	QHL3x3	3	30	Φ100×31	Φ8	5
11331	QHL5x1	1	50	Φ166×40	Φ13	6
11332	QHL5x2	2	50	Φ150×39	Φ11	6
11333	QHL5x3	3	50	Φ120×35	Φ10	7
11341	QHL8x1	1	80	Φ205×49	Φ18	9
11342	QHL8x2	2	80	Φ166×40	Φ13	9
11343	QHL8x3	3	80	Φ150×39	Φ11	10
11351	QHL10x1	1	100	Φ246×60	Φ20	12
11352	QHL10x2	2	100	Φ166×40	Φ13	12
11353	QHL10x3	3	100	Φ150×39	Φ11	13
