Lightweight Hoisting Tackle Aluminum Alloy And MC Nylon Single Sheave Pulley Block
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item No.: | 11401 | Model: | QHJ1x1 |
|---|---|---|---|
| Rated Load: | 5-50KN | Max.Rope Diameter: | 10-22mm |
| Weight: | 1.8-8.3KG | Warranty: | 1 Year |
| Highlight: | Lightweight Hoisting Tackle,MC Nylon Single Sheave Pulley Block,Aluminum Alloy Single Sheave Pulley Block |
||

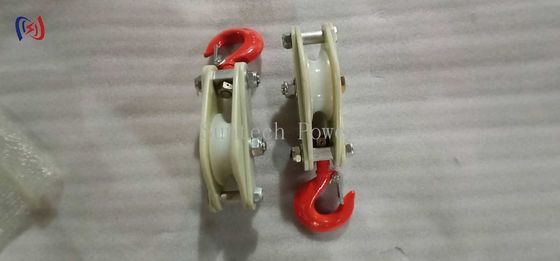

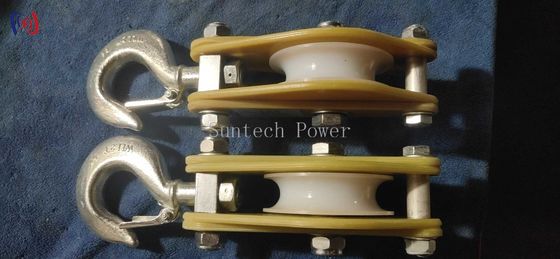

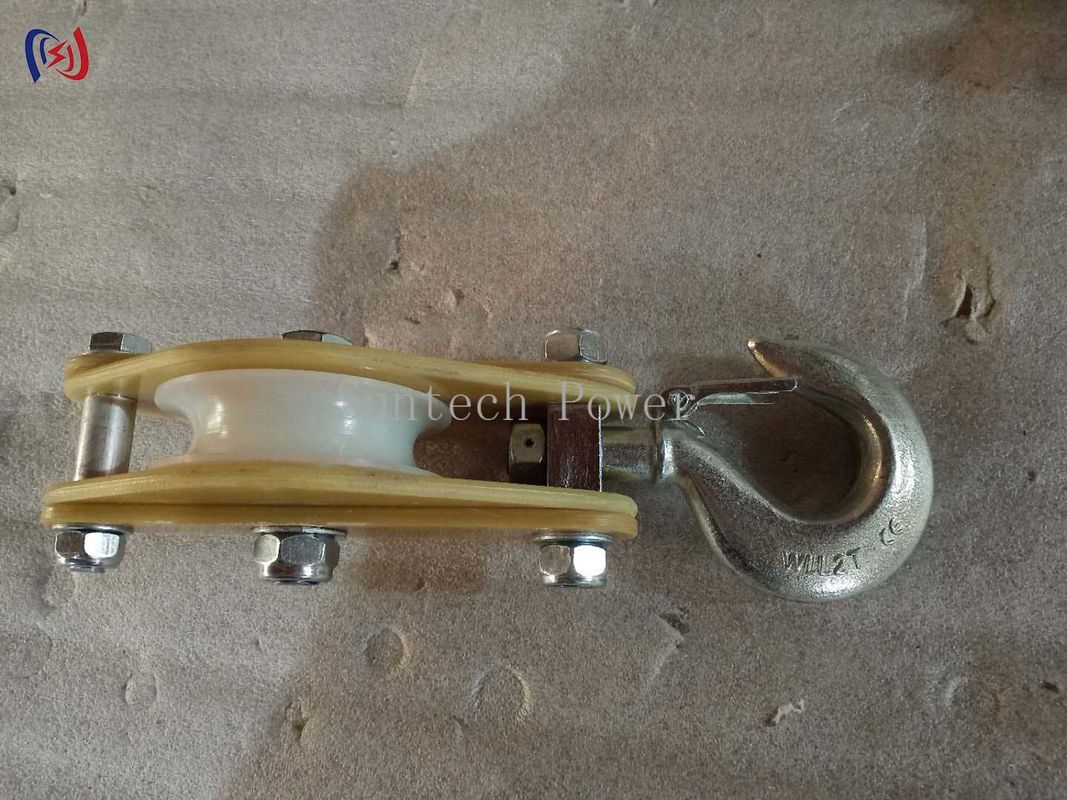

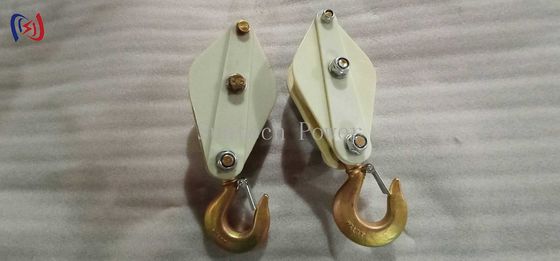

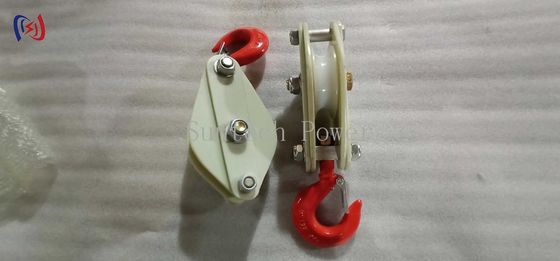

Lightweight Hoisting Tackle Aluminum Alloy And MC Nylon Single Sheave Pulley Block
This aluminum alloy and MC nylon open type hoisting tackle with hook features lightweight construction, combining aluminum alloy side panels with an MC nylon sheave. Designed as an open-type single sheave pulley block, it's ideal for lifting heavy objects and various operations in line construction.
Key Features
- Lightweight construction with aluminum alloy side panels and MC nylon sheave
- Open-style single sheave design for versatile applications
- Mounted on ball bearings for smooth operation
- Frame available in aluminum alloy or galvanized steel
- Compatible with various diameter steel ropes (rope and swivel joint not included)
Applications
- Line construction for lifting operations
- Tower assembly and erection
- Various hoisting operations
Note: Please specify accessory style (open type, close type, hook type, or ring type) when placing your order.
Technical Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | Roller Dia×Width (MM) | MAX. Rope Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | - | Φ80×27 | Φ6 | 2 |
| 11103 | QHN1x3 | 3 | - | Φ80×27 | Φ6 | 2 |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | - | Φ100×31 | Φ8 | 3 |
| 11113 | QHN2x3 | 3 | - | Φ100×31 | Φ8 | 4 |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | - | Φ120×35 | Φ10 | 4 |
| 11123 | QHN3x3 | 3 | - | Φ100×31 | Φ8 | 5 |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | - | Φ150×39 | Φ11 | 6 |
| 11133 | QHN5x3 | 3 | - | Φ120×35 | Φ10 | 5 |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | - | Φ166×40 | Φ13 | 8 |
| 11143 | QHN8x3 | 3 | - | Φ150×39 | Φ11 | 8 |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | - | Φ166×40 | Φ13 | 10 |
| 11153 | QHN10x3 | 3 | - | Φ150×39 | Φ11 | 12 |
