Insulated Hoisting Tackle 5KN - 50KN Transmission Line Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Insulated Hoisting Tackle(Epoxy Resin Plate With Nylon Sheave) | Item No.: | 11401-11443 |
|---|---|---|---|
| Sheave: | 1/2/3 | Rated Load: | 5-50KN |
| Max.Rope Diameter: | 10-22mm | Weight: | 1.3-8.3KG |
| Warranty: | 1 Year | Uses: | Apply To Assemble And Erect The Tower,line Construction,hoist Devices And Other Hoist Operation. |
| Feature: | Product Is Made Of Epoxy Resin Plate With MC Nylon Wheel,it Has Light Weight. | Explain: | Accessories Style Is Need To Indicated Such Like Open Type,close Type,hook Type And Ring Type When Customer Place Order. |
| Highlight: | Insulated Hoisting Tackle 5KN,50KN Hoisting Tackle,Transmission Line Tools Tackle |
||

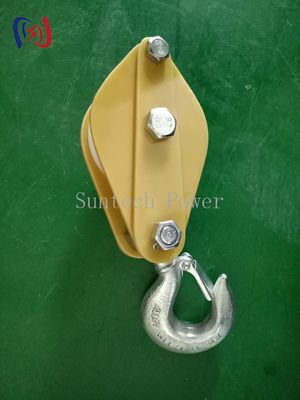

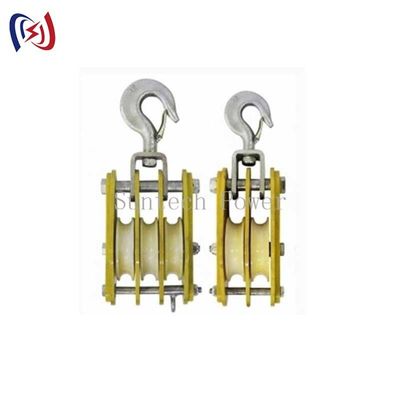

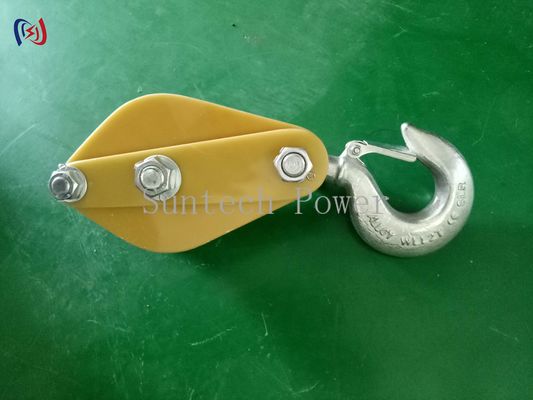

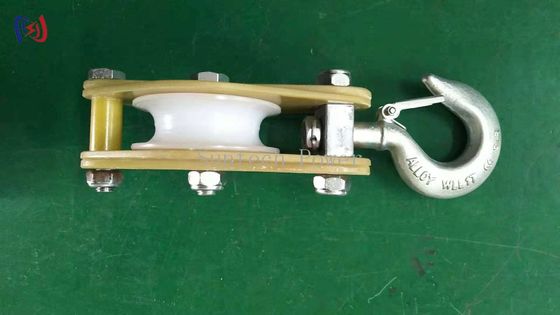

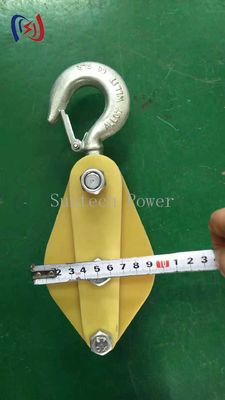

Insulated Hoisting Tackle 5KN - 50KN Transmission Line Tools
Nylon Sheave Insulated Hoisting Tackle Stringing Tools Transmission Line Tool
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools Leading City in China. We specialize in manufacturing cable pulling tools and hydraulic tension pullers for transmission work. All products are OEM-compatible and professionally produced per ISO 9001:2008 standards, exported to over 50 countries worldwide with excellent brand reputation. Customization available for items like stringing blocks, cable rollers, and cable jack stands. No MOQ required for Construction Safety Tools.
Applications
- Assembling and erecting towers
- Line construction
- Hoisting devices and other lifting operations
Key Features
- Constructed from epoxy resin plate with MC nylon wheel
- Lightweight design
- Available in multiple accessory styles (must be specified when ordering): open type, close type, hook type, and ring type
Product Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | MAX. Rope Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 11401 | QHJ1x1 | 1 | 10 | Φ8 | 1.8 |
| 11402 | QHJ1x2 | 2 | 10 | Φ6 | 1.8 |
| 11403 | QHJ1x3 | 3 | 10 | Φ6 | 2.1 |
| 11411 | QHJ2x1 | 1 | 20 | Φ10 | 2.9 |
| 11412 | QHJ2x2 | 2 | 20 | Φ8 | 3.1 |
| 11413 | QHJ2x3 | 3 | 20 | Φ8 | 3.8 |
| 11421 | QHJ3x1 | 1 | 30 | Φ11 | 4.1 |
| 11422 | QHJ3x2 | 2 | 30 | Φ10 | 4.3 |
| 11423 | QHJ3x3 | 3 | 30 | Φ8 | 5.3 |
| 11424 | QHJ3x4 | 4 | 30 | Φ8 | 6.3 |
| 11431 | QHJ5x1 | 1 | 50 | Φ13 | 5.6 |
| 11432 | QHJ5x2 | 2 | 50 | Φ11 | 6.1 |
| 11433 | QHJ5x3 | 3 | 50 | Φ10 | 7.3 |
| 11434 | QHJ5x4 | 4 | 50 | Φ10 | 8.3 |
| 11441 | QHJx1 | 1 | 50 | Φ8 | 1.3 |
| 11442 | QHJx2 | 2 | 50 | Φ6 | 1.3 |
| 11443 | QHJx3 | 3 | 50 | Φ6 | 1.8 |
