Fiber Optic Stringing Blocks 5KN-20KN Transmission Stringing Blocks
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Features: | Good Wear-resistance,no Deformation,long Life Cycle And So On. | Name: | Grounding Wire Stringing Block |
|---|---|---|---|
| Sheave Size: | 120mm-200mm | Max Steel Strand: | GJ150 |
| Rated Load: | 5-20KN | Weight: | 1.6KG-4.5KG |
| Used: | Apply To Pull Steel Strand. | ||
| Highlight: | Fiber Optic Stringing Blocks 5KN,20KN Transmission Stringing Blocks,Fiber Optic Stringing Blocks 20KN |
||

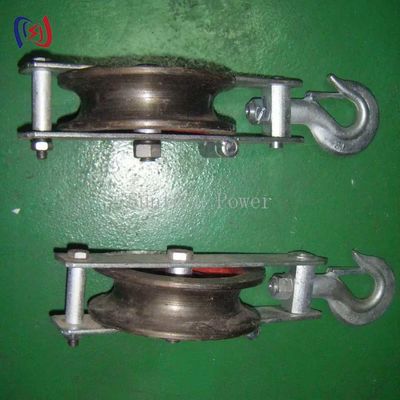

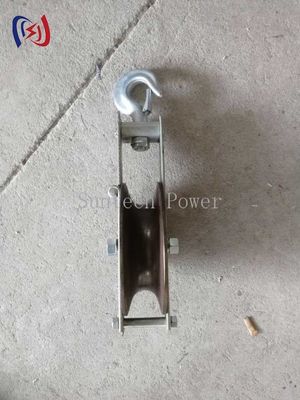

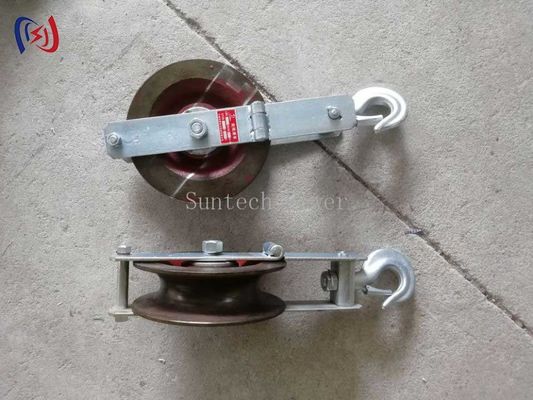

Fiber Optic Stringing Blocks 5KN-20KN Transmission Stringing Blocks
Cable Ground Stringing Roller Pulley Block For Power Transmission Grounding Wire Underground Cable Installation Equipment
Applications
Designed for pulling steel strands in power transmission applications.
Key Features
- Excellent wear resistance
- Maintains structural integrity with no deformation
- Extended service life
Product Specifications

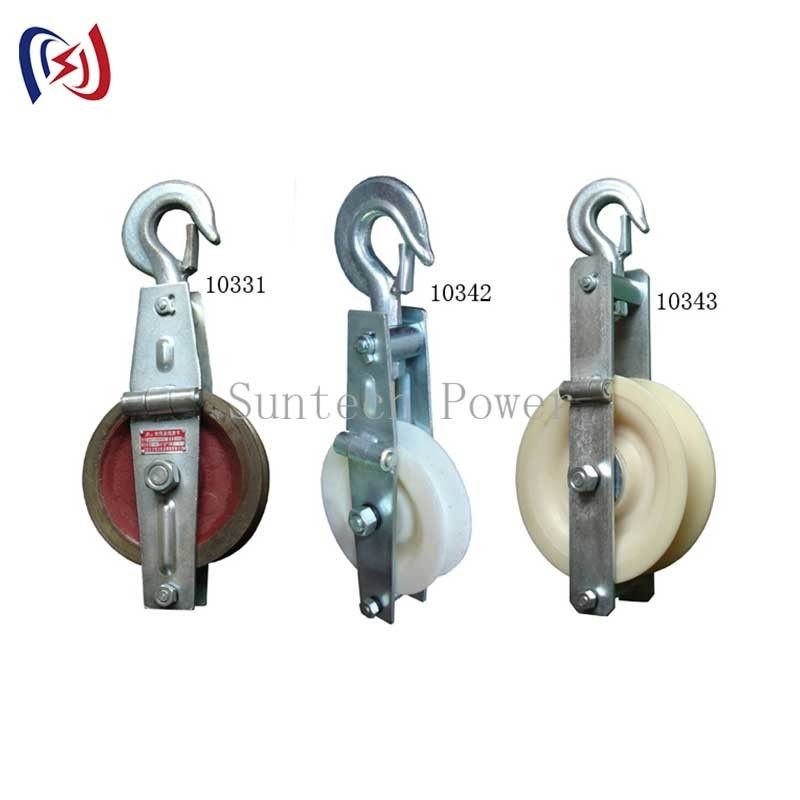

| Item Number | Model | Applicable Stranded Wire | Rated Load (kN) | Weight (kg) | Remark |
|---|---|---|---|---|---|
| 10331 | SHT-120×35 | GJ35 | 5 | 2 | Cast steel sheave |
| 10333 | SHT-150×50 | GJ120 | 20 | 4.5 | |
| 10341 | SHTN-120×35 | GJ35 | 5 | 1.6 | Nylon sheave |
| 10343 | SHTN-150×50 | GJ120 | 20 | 3.3 | |
| 10344 | SHTN-200×60 | GJ150 | 20 | 3.8 |
