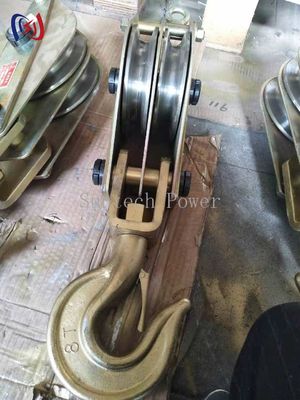

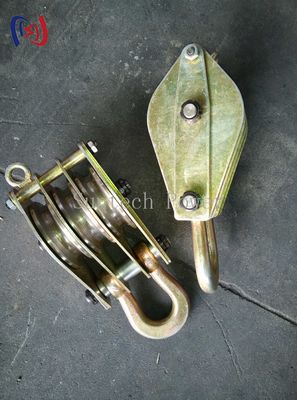

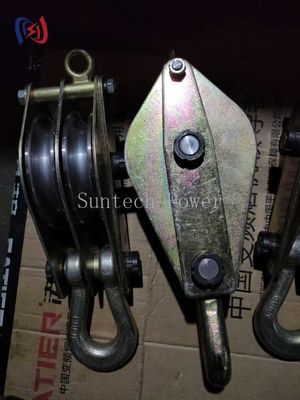

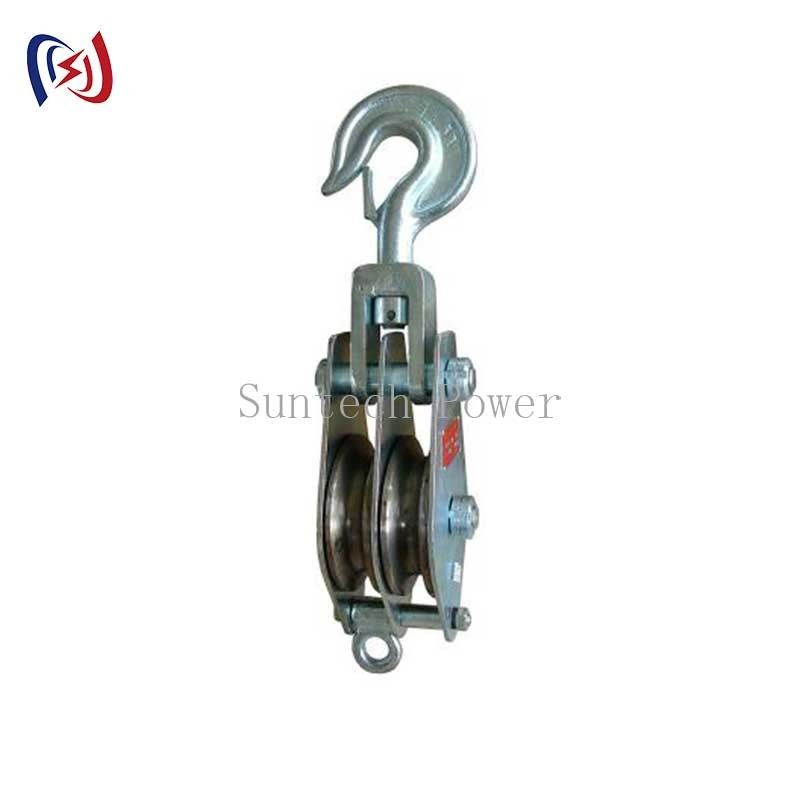

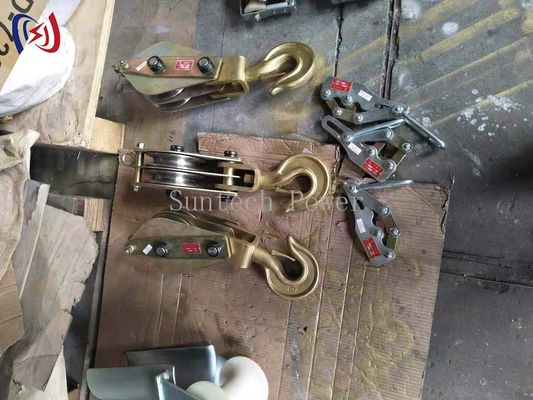

Casting Steel 50KG Hoisting Tackle Sheave Hoist Sheave
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hoisting Tackle(Casting Steel Sheave) | Item No.: | 11181-11248 |
|---|---|---|---|
| Sheave: | 1/2/3/4 | Rated Load: | 10-200KN |
| Max.Rope Diameter: | 5.7-20mm | Weight: | 3-50KG |
| Warranty: | 1 Year | ||
| Highlight: | Casting Steel Hoisting Tackle,50KG Hoisting Tackle,Sheave hoist sheave |
||
Casting Steel 50KG Hoisting Tackle Sheave Hoist Sheave
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools and hydraulic tension pullers to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation. We accept OEM orders and can customize items like stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity required.
Product Description
Hoisting Tackle Casting Steel Sheave for Hoist Operation
Applications
Designed for tower assembly, erection, line construction hoist devices, and other hoisting operations.
Configuration Options
Available in hook type, plate type, and ring type hangers. Please specify your preferred configuration when ordering.
Technical Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | Roller Dia×Width (mm) | MAX. Rope Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 11181 | QH1x1 | 1 | 10 | 100*31 | 8 | 3 |
| 11182 | QH1x2 | 2 | 80*27 | 6 | 3 | |
| 11183 | QH1x3 | 3 | 80*27 | 6 | 4 | |
| 11191 | QH2x1 | 1 | 20 | 120*35 | 10 | 4 |
| 11192 | QH2x2 | 2 | 100*31 | 8 | 5 | |
| 11193 | QH2x3 | 3 | 100*31 | 8 | 6 | |
| 11201 | QH3x1 | 1 | 30 | 150*39 | 11 | 6.5 |
| 11202 | QH3x2 | 2 | 120*35 | 10 | 5 | |
| 11203 | QH3x3 | 3 | 100*31 | 8 | 6 | |
| 11211 | QH5x1 | 1 | 50 | 166*40 | 15.5 | 9 |
| 11212 | QH5x2 | 2 | 150*39 | 12.5 | 13 | |
| 11213 | QH5x3 | 3 | 120*35 | 11 | 11 | |
| 11221 | QH8x1 | 1 | 80 | 205*50 | 13 | 20 |
| 11222 | QH8x2 | 2 | 166*40 | 11 | 19 | |
| 11223 | QH8x3 | 3 | 150*39 | 10 | 18 | |
| 11231 | QH10x1 | 1 | 100 | 246*60 | 19 | 22 |
| 11232 | QH10x2 | 2 | 166*40 | 13 | 21 | |
| 11233 | QH10x3 | 3 | 150*39 | 11 | 20 | |
| 11241 | QH15-1 | 1 | 150 | 280*64 | 22 | 40 |
| 11242 | QH15-2 | 2 | 205*50 | 18 | 33 | |
| 11243 | QH15-3 | 3 | 166*40 | 13 | 26 | |
| 11244 | QH15-4 | 4 | 150*39 | 11 | 28 | |
| 11245 | QH20-1 | 1 | 200 | 305*68 | 23 | 56 |
| 11248 | QH20-4 | 4 | 205*50 | 18 | 50 |
