OPGW Fiber Optic Pulling Grip 20KN-100KN Fiber Optic Cable Pulling Grips
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Optical Cable Wire Gripper | Item No.: | 20101-20104 |
|---|---|---|---|
| Rated Load: | 20-100KN | Applicable Anti Twist Steel Rope: | 7-24mm |
| Weight: | 5.6-20KG | Warranty: | 1 Year |
| Uses: | Apply To OPGW Construction | Feature: | The Main Body Is Made Of Aluminum Alloy And It Can Protect The OPGW Effectivelv. |
| Highlight: | OPGW Fiber Optic Pulling Grip,Fiber Optic Pulling Grip 20KN,100KN Fiber Optic Cable Pulling Grips |
||

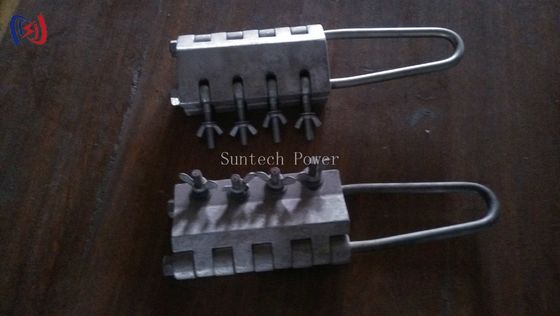

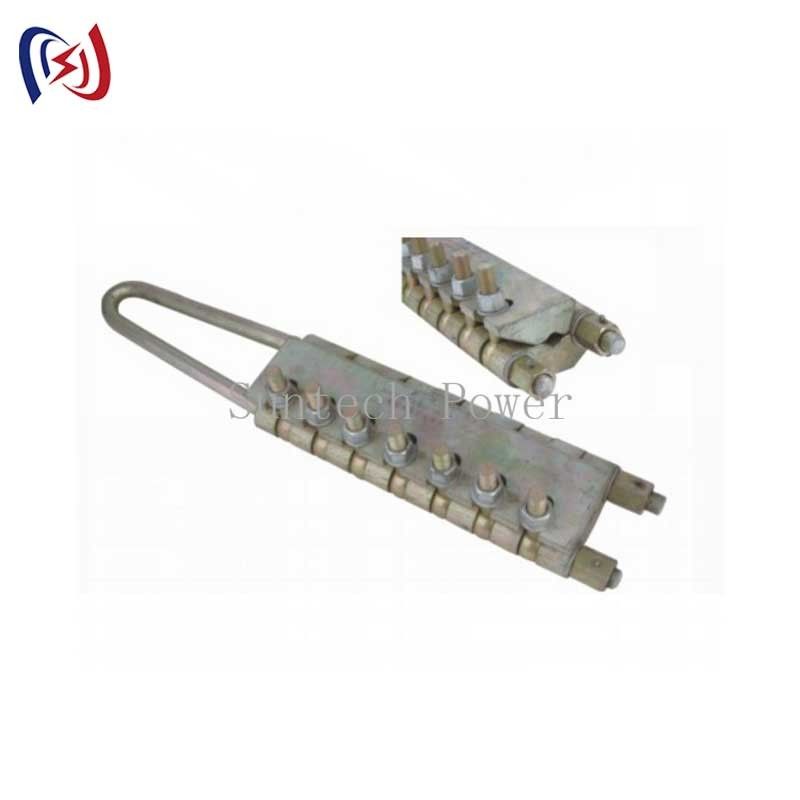

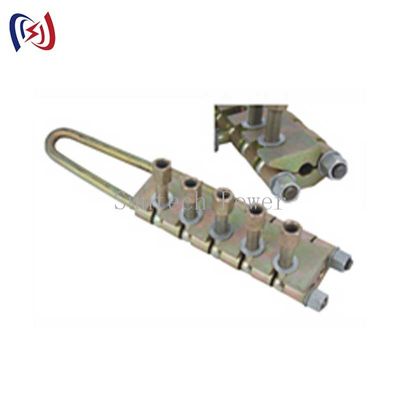

OPGW Fiber Optic Pulling Grip 20KN-100KN Fiber Optic Cable Pulling Grips
Bolt Type Anti Twist Steel Rope Gripper Stringing Conductor Come Along Clamp
Suntech Power Tools, located in southeast China, is the earliest origin Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tensioners, and pullers to support transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide, earning excellent brand reputation. We accept OEM orders and can customize items like stringing blocks, cable rollers, and jack stands. Construction Safety Tools have no minimum order quantity requirements.
Key Features
- The clamp body is fabricated from high tensile steel
- Two hinged halves with high tensile bolts and nuts on one side
Applications
Designed to grip specific round strand wire rope. Ideal for anti-twisting steel rope applications.
Product Specifications
| Item Number | Model | Rated Load (KN) | Applicable Anti Twist Steel Rope | Weight (KG) |
|---|---|---|---|---|
| 13171 | SKGF-2 | 20 | 7,9 | 5.6 |
| 13172 | SKGF-3 | 30 | 11 | 5.6 |
| 13173 | SKGF-5 | 50 | 13,15 | 18 |
| 13174 | SKGF-6 | 60 | 16,18 | 18 |
| 13175 | SKGF-8 | 80 | 20 | 20 |
| 13176 | SKGF-10 | 100 | 22,24 | 20 |
