Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle

Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle
Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle

Large Image :  Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle Get Best Price

Product Details:
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: QHJ1x1
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: T/T,L/C
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description

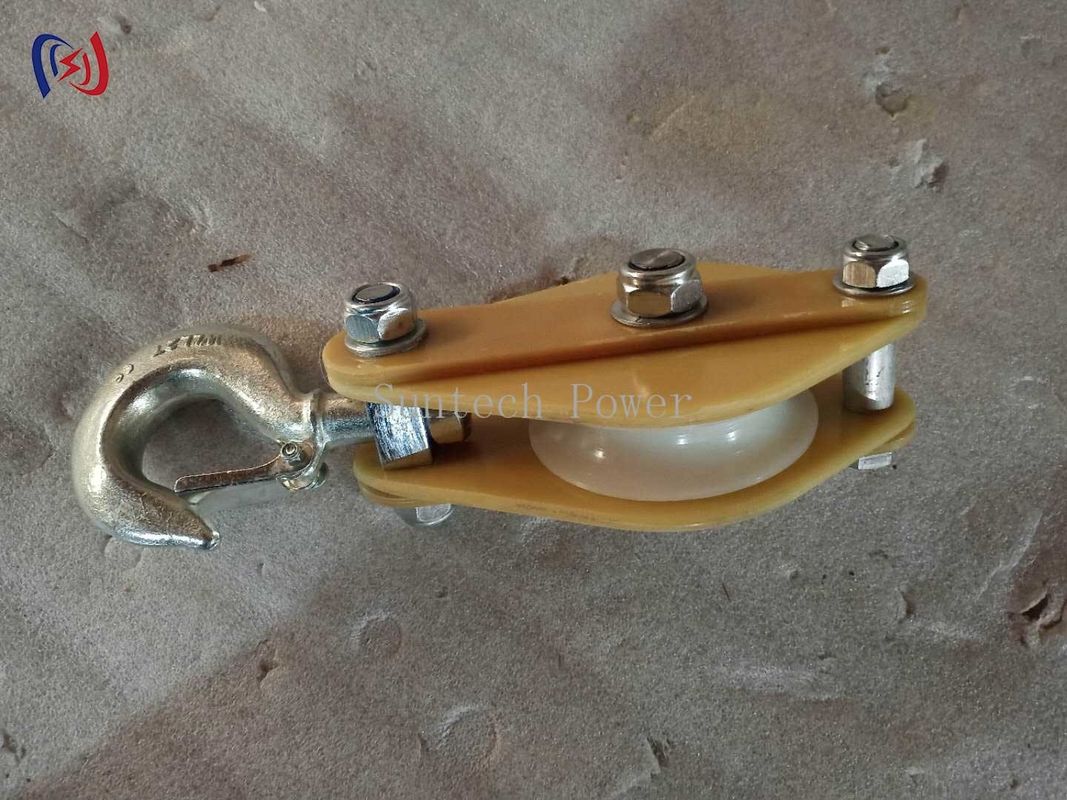

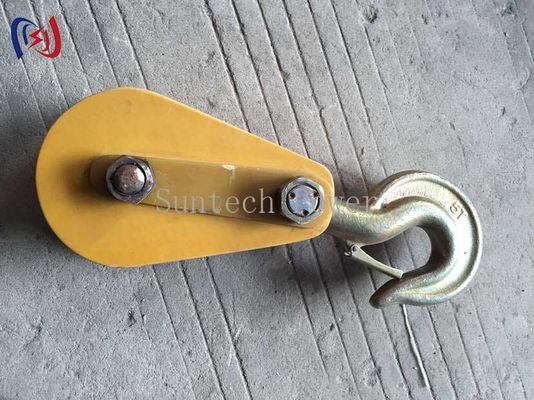

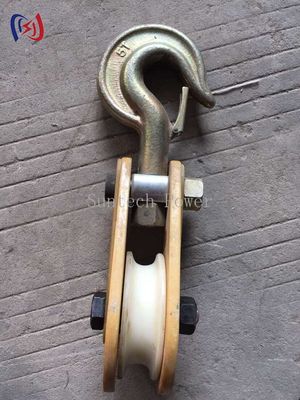

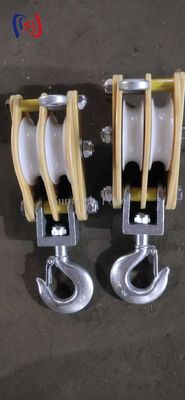

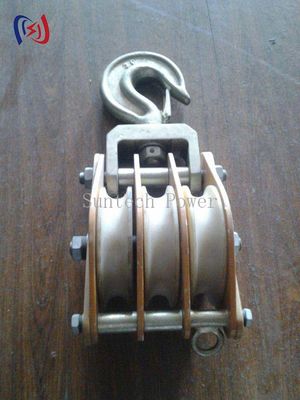

Name: Insulated Hoisting Tackle(Epoxy Resin Plate With Nylon Sheave) Item No.: 11401-11443
Sheave: 1/2/3/4 Rated Load: 5-50KN
Max.Rope Diameter: 10-22mm Weight: 1.3-8.3KG
Warranty: 1 Year
Highlight:

Insulated Heavy Duty Block And Tackle

,

50KN Mini Block And Tackle

,

Block And Tackle 50KN

Insulated Heavy Duty Block And Tackle 50KN Mini Block And Tackle
Insulated Hoisting Tackle Epoxy Resin Plate With Nylon Sheave

Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China, specializing in:

  • Conductor stringing blocks
  • Cable rollers
  • Hoisting tackles
  • Pulley blocks
  • Conductor grippers
  • Cable reel stands
  • Gin poles
  • Inspection trolleys
  • Hydraulic puller tensioners
  • Conductor compressors
  • Cable pulling winches
  • Anti-twisting wire steel ropes
Applications

Designed for tower assembly and erection, line construction, hoisting devices, and other lifting operations.

Key Features
  • Constructed with aluminum alloy plate and MC nylon wheel for lightweight performance
  • Available in various accessory styles (open type, closed type, hook type, ring type) - specify when ordering
  • Suitable for different diameter steel ropes
  • Wheels mounted on ball bearings
  • Frame made of aluminum alloy or galvanized steel
  • Note: Rope and swivel joint not included
Technical Specifications
Item Number Model Number of Sheaves Rated Load (kN) Roller Dia×Width (MM) MAX. Rope Diameter (mm) Weight (kg)
11101 QHN1x1 1 10 Φ100×31 Φ8 2
11102 QHN1x2 2 10 Φ80×27 Φ6 2
11103 QHN1x3 3 10 Φ80×27 Φ6 2
11111 QHN2x1 1 20 Φ120×35 Φ10 2
11112 QHN2x2 2 20 Φ100×31 Φ8 3
11113 QHN2x3 3 20 Φ100×31 Φ8 4
11121 QHN3x1 1 30 Φ150×39 Φ11 3
11122 QHN3x2 2 30 Φ120×35 Φ10 4
11123 QHN3x3 3 30 Φ100×31 Φ8 5
11131 QHN5x1 1 50 Φ166×40 Φ13 5
11132 QHN5x2 2 50 Φ150×39 Φ11 6
11133 QHN5x3 3 50 Φ120×35 Φ10 5
11141 QHN8x1 1 80 Φ205×49 Φ18 7
11142 QHN8x2 2 80 Φ166×40 Φ13 8
11143 QHN8x3 3 80 Φ150×39 Φ11 8
11151 QHN10x1 1 100 Φ246×60 Φ20 11
11152 QHN10x2 2 100 Φ166×40 Φ13 10
11153 QHN10x3 3 100 Φ150×39 Φ11 12
