10 - 100KN Hoisting Tackle Aluminum Alloy Tower Erection Hoisting Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hoisting Tackle(Aluminum Alloy Plate With Nylon Sheave) | Item No.: | 11101-11153 |
|---|---|---|---|
| Sheave: | 1/2/3 | Rated Load: | 10-100KN |
| Roller Dia: | 80-246mm | Roller Width: | 27-60mm |
| Max.Rope Diameter: | 5.7-20mm | Weight: | 1.8-13.2KG |
| Warranty: | 1 Year | Uses: | Apply To Assemble And Erect The Tower,line Construction,hoist Devices And Other Hoist Operation |
| Highlight: | 100KN Hoisting Tackle,Hoisting Tackle Aluminum Alloy,Tower Erection hoisting tools |
||

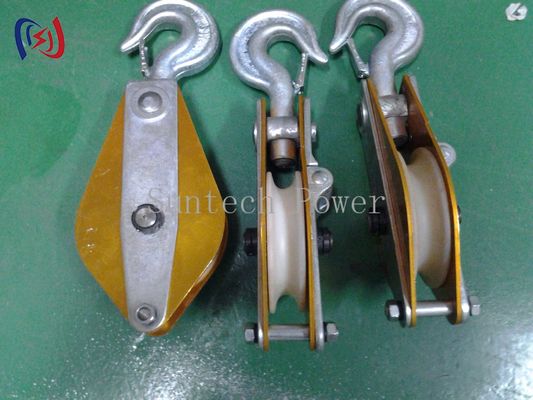

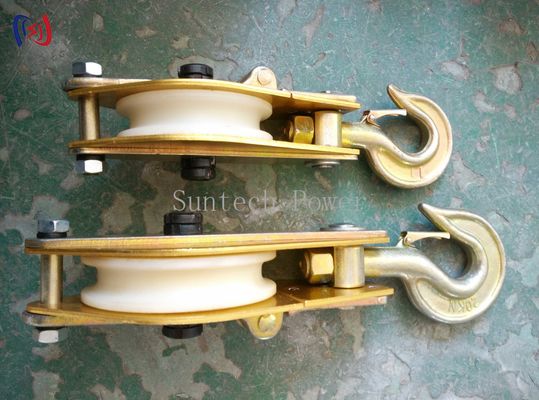

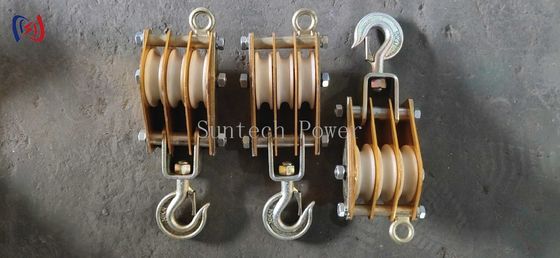

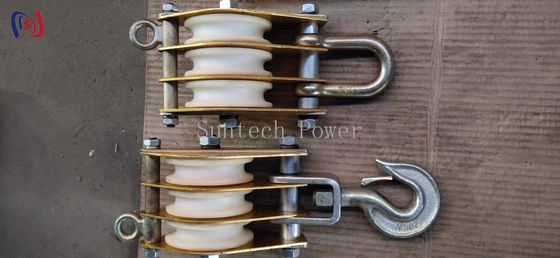

10 - 100KN Hoisting Tackle Aluminum Alloy Tower Erection Hoisting Tools
Aluminum Alloy Tower Erection Tools Nylon Sheave Hoisting Tackle QHN Model
Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China. Our product range includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, cable reel stands, gin poles, inspection trolleys, hydraulic puller tensioners, conductor compressors, cable pulling winches, and anti-twisting wire steel ropes.
Applications
Designed for assembling and erecting towers, line construction, hoisting devices, and other lifting operations.
Key Features
- Constructed from lightweight aluminum alloy plate with MC nylon wheel
- Suitable for different diameter steel ropes
- Wheels mounted on ball bearings for smooth operation
- Frame made of aluminum alloy or galvanized steel

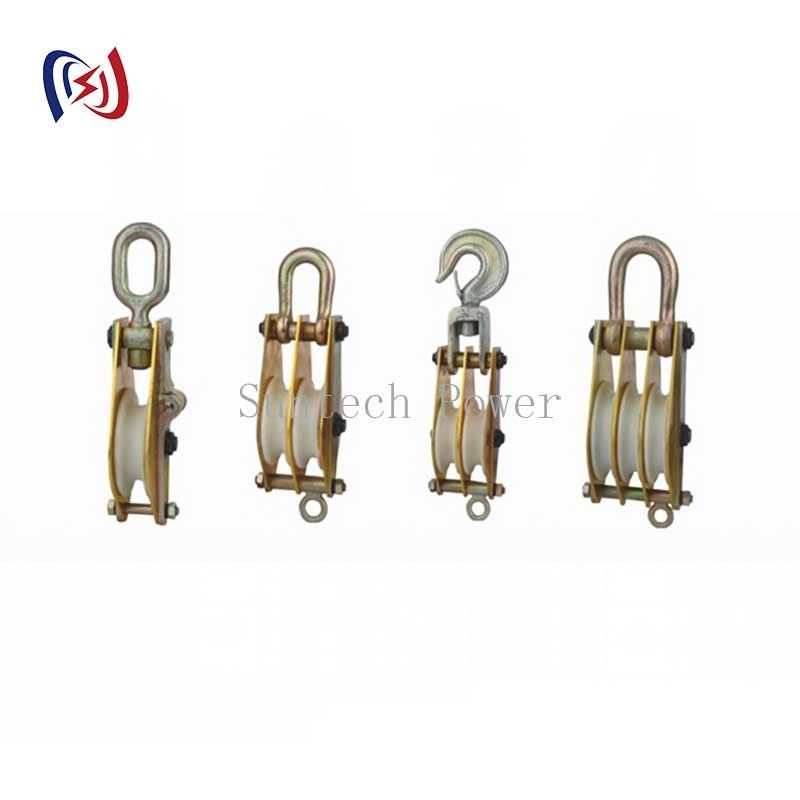

Note: Please indicate required accessories style (open type, close type, hook type, or ring type) when placing your order. Rope and swivel joint not included.
Product Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | Roller Dia×Width (MM) | MAX. Rope Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 11101 | QHN1x1 | 1 | 10 | Φ100×31 | Φ8 | 2 |
| 11102 | QHN1x2 | 2 | 10 | Φ80×27 | Φ6 | 2 |
| 11103 | QHN1x3 | 3 | 10 | Φ80×27 | Φ6 | 2 |
| 11111 | QHN2x1 | 1 | 20 | Φ120×35 | Φ10 | 2 |
| 11112 | QHN2x2 | 2 | 20 | Φ100×31 | Φ8 | 3 |
| 11113 | QHN2x3 | 3 | 20 | Φ100×31 | Φ8 | 4 |
| 11121 | QHN3x1 | 1 | 30 | Φ150×39 | Φ11 | 3 |
| 11122 | QHN3x2 | 2 | 30 | Φ120×35 | Φ10 | 4 |
| 11123 | QHN3x3 | 3 | 30 | Φ100×31 | Φ8 | 5 |
| 11131 | QHN5x1 | 1 | 50 | Φ166×40 | Φ13 | 5 |
| 11132 | QHN5x2 | 2 | 50 | Φ150×39 | Φ11 | 6 |
| 11133 | QHN5x3 | 3 | 50 | Φ120×35 | Φ10 | 5 |
| 11141 | QHN8x1 | 1 | 80 | Φ205×49 | Φ18 | 7 |
| 11142 | QHN8x2 | 2 | 80 | Φ166×40 | Φ13 | 8 |
| 11143 | QHN8x3 | 3 | 80 | Φ150×39 | Φ11 | 8 |
| 11151 | QHN10x1 | 1 | 100 | Φ246×60 | Φ20 | 11 |
| 11152 | QHN10x2 | 2 | 100 | Φ166×40 | Φ13 | 10 |
| 11153 | QHN10x3 | 3 | 100 | Φ150×39 | Φ11 | 12 |
