Nylon Or Aluminum Sheave Universal Stringing Block 5KN-20KN Rated Load
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item No.: | 10171-10199 | Model: | SHD-120x30 -SHND-400X80 |
|---|---|---|---|
| Rated Load: | 5-20KN | Weight: | 1.5-13KG |
| Application: | Construction Site | Material: | Nylon Sheaves Or Aluminum Sheaves |
| Highlight: | Aluminum Sheave Universal Stringing Block,Nylon Sheave Universal Stringing Block,Universal Stringing Block 5KN |
||

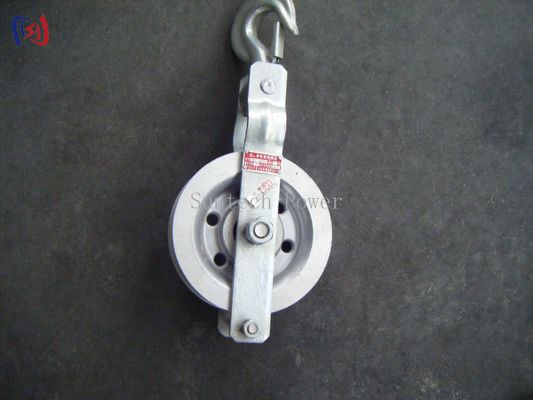

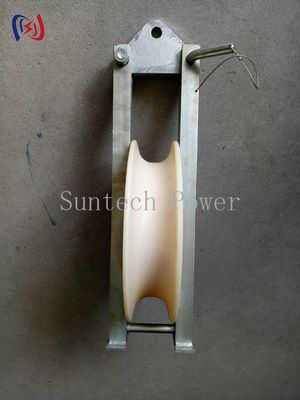

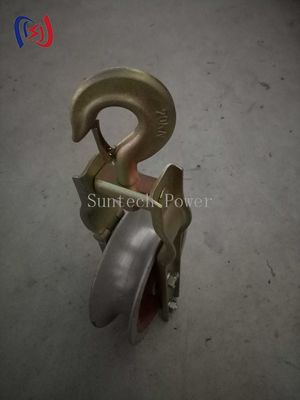

Nylon Or Aluminum Sheave Universal Stringing Block 5KN-20KN Rated Load
High Performance Transmission Line Stringing Tools Single Conductor Stringing Block
A Single Conductor Stringing Block is a specialized pulley used in overhead power line construction to guide and support a single conductor (or cable) during stringing operations. It ensures smooth, friction-reduced movement while preventing damage to the conductor.
Key Features
- Typically consists of a grooved wheel (sheave) mounted on a swivel frame
- Made from aluminum, nylon, or composite materials to minimize conductor wear
- May include rubber or urethane linings for added protection
Applications
- Used in transmission & distribution line installations
- Suitable for ACSR, AAC, AAAC, and other conductor types
- Often employed in dead-end or suspension setups
Product Specifications
| Item number | Model | Suitable conductor | Rated load(KN) | Weight(kg) | Remark |
|---|---|---|---|---|---|
| 10171 | SHD-120*30 | LGJ25~70 | 5 | 1.5 | Aluminium sheave |
| 10172 | SHD-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10173 | SHD-200*40 | LGJ150~240 | 15 | 4 | |
| 10174 | SHD-200*60 | LGJ150~240 | 15 | 4.6 | |
| 10175 | SHD-250*40 | LGJ150~240 | 20 | 4.6 | |
| 10176 | SHD-250*60 | LGJ300~400 | 20 | 6 | |
| 10177 | SHD-270*60 | LGJ300~400 | 20 | 7 | |
| 10178 | SHD-320*60 | LGJ300~400 | 20 | 9.5 | |
| 10179 | SHD-400*80 | LGJ400~500 | 20 | 15 | |
| 10191 | SHDN-120*30 | LGJ25~70 | 5 | 1.5 | Nylon sheave |
| 10192 | SHDN-160*40 | LGJ95~120 | 10 | 2.5 | |
| 10193 | SHDN-200*40 | LGJ150~240 | 15 | 3.6 | |
| 10194 | SHDN-200*60 | LGJ150~240 | 15 | 4 | |
| 10195 | SHDN-250*40 | LGJ150~240 | 20 | 4 | |
| 10196 | SHDN-250*60 | LGJ300~400 | 20 | 4.5 | |
| 10197 | SHDN-270*60 | LGJ300~400 | 20 | 5.6 | |
| 10198 | SHDN-320*60 | LGJ300~400 | 20 | 6.7 | |
| 10198-1 | SHDN-320*80 | LGJ300~400 | 20 | 8 | |
| 10199 | SHDN-400*80 | LGJ400~500 | 20 | 13 | |
| 10199-1 | SHDN-400*100 | LGJ400~500 | 20 | 15 | |
| 10199-2 | SHDN-400*120 | LGJ400~500 | 20 | 18 |
Our products are exported to 120 countries with over 3000 clients worldwide. Our extensive product range includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, cable reel stands, gin poles, inspection trolleys, hydraulic puller tensioners, conductor compressors, cable pulling winches, anti-twisting wire steel ropes, and other construction tools and equipment for electric power construction.
