Transmission Line Hoisting Tackle 10KN Small Block And Tackle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item No.: | 11181 | Model: | QH1x1 |
|---|---|---|---|
| Sheave: | 1/2/3 | Rated Load: | 10-200KN |
| Weight: | 3-50KG | Warranty: | 1 Year |
| Highlight: | Transmission Line Hoisting Tackle,10KN Small Block And Tackle,Hoisting Tackle 10KN |
||

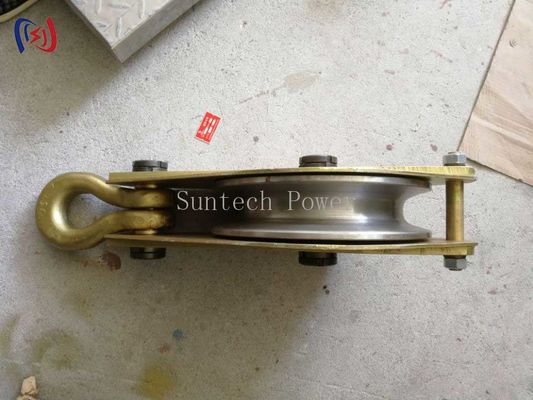

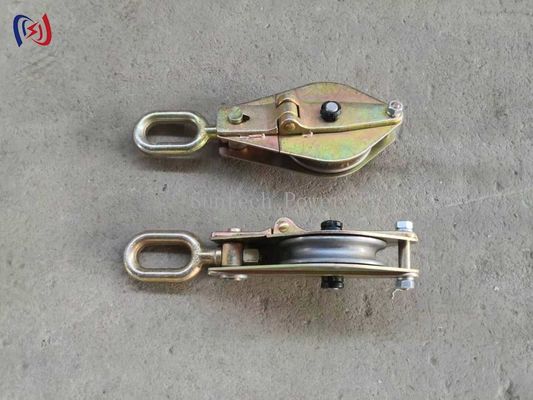

Transmission Line Hoisting Tackle 10KN Small Block And Tackle
This aluminum alloy and MC nylon open type hoisting tackle with hook features lightweight construction, equipped with aluminum alloy side panels and MC nylon sheaves. The Single Sheave Pulley Block is designed for open-type operation, ideal for lifting heavy objects and other operations in line construction.
Key Applications
- Assembly and erection of towers
- Line construction hoist devices
- Various hoisting operations
Configuration Options
Hanger includes hook type, plate type and ring type. Please specify your preferred configuration when placing orders.
Technical Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | Roller Dia×Width (mm) | MAX. Rope Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 11181 | QH1x1 | 1 | 10 | 100*31 | 8 | 3 |
| 11182 | QH1x2 | 2 | - | 80*27 | 6 | 3 |
| 11183 | QH1x3 | 3 | - | 80*27 | 6 | 4 |
| 11191 | QH2x1 | 1 | 20 | 120*35 | 10 | 4 |
| 11192 | QH2x2 | 2 | - | 100*31 | 8 | 5 |
| 11193 | QH2x3 | 3 | - | 100*31 | 8 | 6 |
| 11201 | QH3x1 | 1 | 30 | 150*39 | 11 | 6.5 |
| 11202 | QH3x2 | 2 | - | 120*35 | 10 | 5 |
| 11203 | QH3x3 | 3 | - | 100*31 | 8 | 6 |
| 11211 | QH5x1 | 1 | 50 | 166*40 | 15.5 | 9 |
| 11212 | QH5x2 | 2 | - | 150*39 | 12.5 | 13 |
| 11213 | QH5x3 | 3 | - | 120*35 | 11 | 11 |
| 11221 | QH8x1 | 1 | 80 | 205*50 | 13 | 20 |
| 11222 | QH8x2 | 2 | - | 166*40 | 11 | 19 |
| 11223 | QH8x3 | 3 | - | 150*39 | 10 | 18 |
| 11231 | QH10x1 | 1 | 100 | 246*60 | 19 | 22 |
| 11232 | QH10x2 | 2 | - | 166*40 | 13 | 21 |
| 11233 | QH10x3 | 3 | - | 150*39 | 11 | 20 |
| 11241 | QH15-1 | 1 | 150 | 280*64 | 22 | 40 |
| 11242 | QH15-2 | 2 | - | 205*50 | 18 | 33 |
| 11243 | QH15-3 | 3 | - | 166*40 | 13 | 26 |
| 11244 | QH15-4 | 4 | - | 150*39 | 11 | 28 |
| 11245 | QH20-1 | 1 | 200 | 305*68 | 23 | 56 |
| 11248 | QH20-4 | 4 | - | 205*50 | 18 | 50 |
About Ningbo Suntech Power Machinery Tools Co.,Ltd.
Established in 1995, we are a leading manufacturer and supplier of electrical facilities products in China. Our extensive product line includes stringing blocks, hydraulic cable stands, anti-twist steel wire ropes, and other transmission line construction tools. With one of the largest warehouses for stringing tools in China, we serve over 3000 clients across 120 countries.
Our comprehensive product range includes:
- Conductor stringing blocks
- Cable rollers
- Hoisting tackles and pulley blocks
- Conductor grippers
- Cable reel stands
- Gin poles
- Inspection trolleys
- Hydraulic puller tensioners
- Conductor compressors
- Cable pulling winches
- Anti-twisting wire steel ropes
- Various construction tools for electric power projects
