Bolt Type Anti Twist Rope Gripper Come Along Clamp with 20-100KN Rated Load and High Tensile Steel Construction

Bolt Closed Anti Twist Rope Come Along Rated 20-100KN

Product Overview

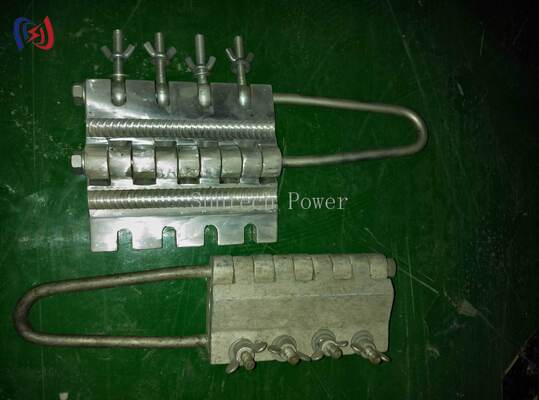

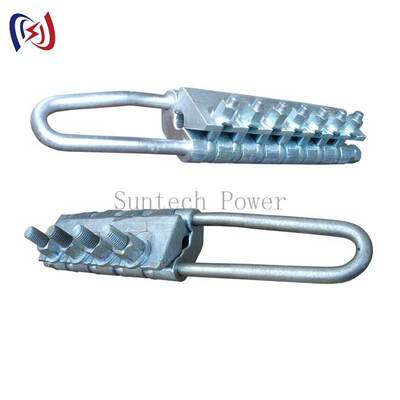

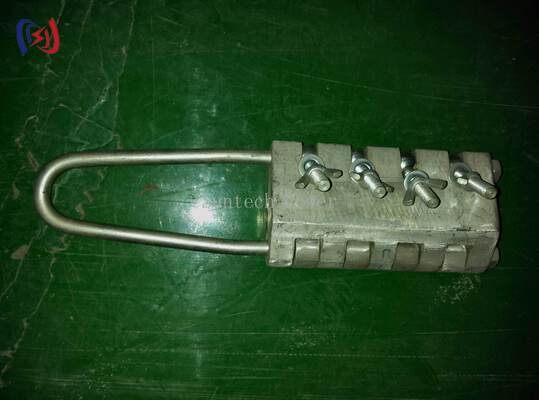

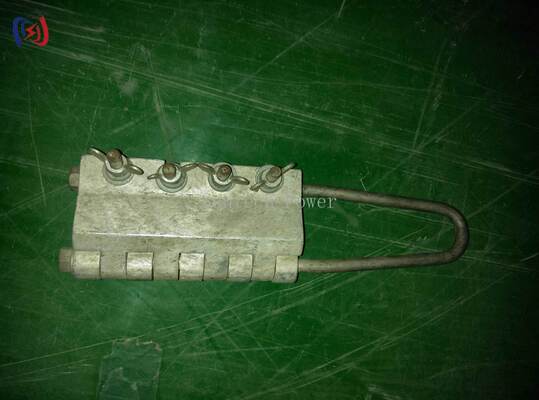

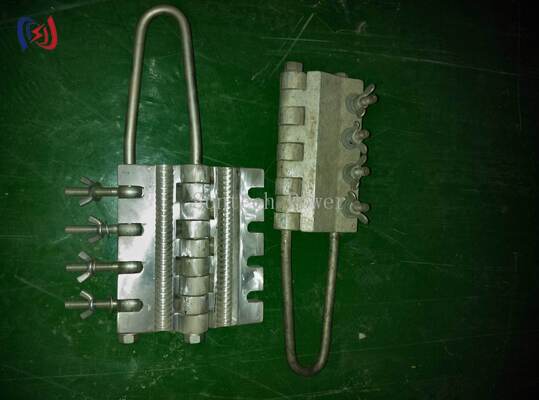

Anti twist rope is the standard pull line for conductor stringing, and the SKGF come along is made to hold it without letting the rope rotate or slip. The body is split in two halves joined by a hinge on one side and closed by high tensile bolts and nuts on the other, so it wraps fully around round strand rope of 7-24mm. Six models cover pulling loads from 20KN to 100KN, letting crews pick the right size for light pilot pulls or heavy main conductor stringing.

Technical Specifications

Applications

· Holding anti twist rope during conductor stringing

· Tensioning and securing round strand wire rope

· Anchoring pull lines temporarily on transmission towers

· Overhead line construction and repair operations

Product Advantages

· High Tensile Steel Split Body — The two half shells are made of high tensile steel, standing up to 20-100KN pulls without bending.

· Hinge and Bolt Closure — One side hinges open for easy fit around the rope; high tensile bolts and nuts close it for a firm, twist free hold.

· Built for Anti Twist Rope — Designed around 7-24mm anti twist rope so the rope keeps its lay and does not spin during stringing.

· Six Load Steps 20-100KN — Models from SKGF-2 to SKGF-10 span 20KN to 100KN, matching light to heavy stringing tension needs.
