Cable Turning Roller | Heavy Duty Corner Cable Guide Roller for Underground Cable Installation

Product Overview

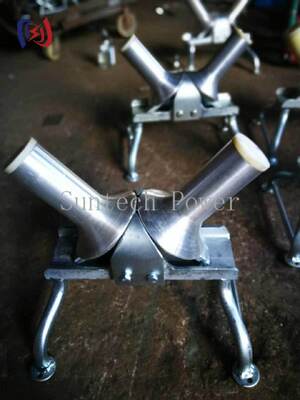

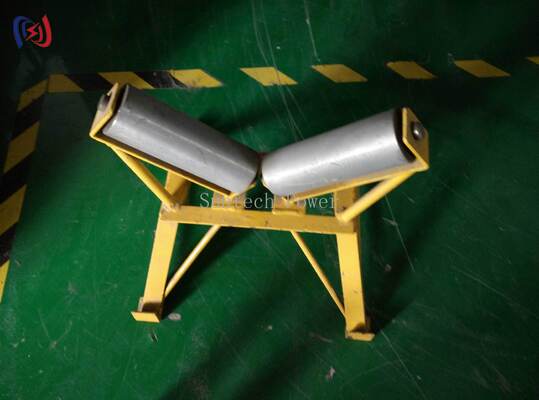

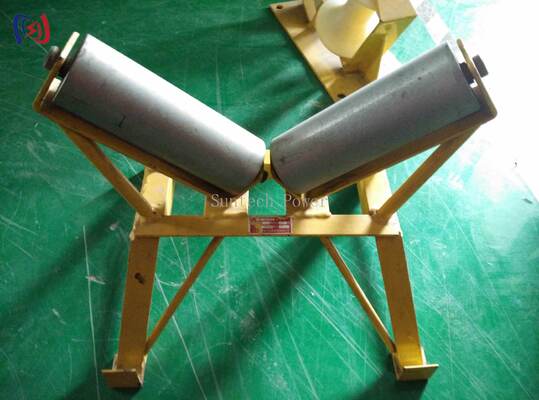

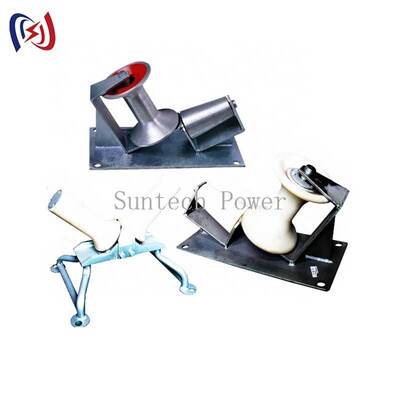

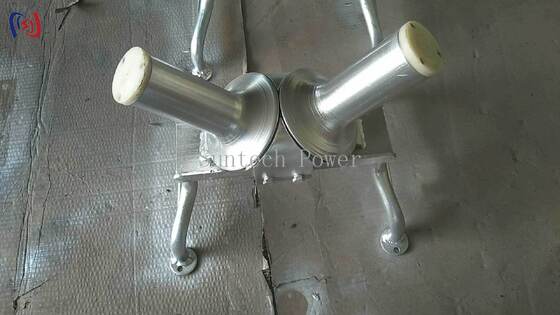

The Cable Turning Roller is designed to safely guide and protect power cables during underground cable laying and cable pulling operations. It minimizes friction and controls cable direction when cables pass through bends, corners, trenches, manholes, duct entrances, and cable routes.

Available with steel rollers, nylon rollers, or aluminum alloy rollers, the cable turning roller can be selected according to cable type, pulling tension, and installation environment. The heavy-duty welded steel frame provides excellent structural strength, while smooth-rotating rollers help prevent cable sheath damage and reduce pulling force.

It is widely used in power transmission projects, underground cable installation, substations, utility construction, renewable energy projects, railway electrification, and industrial cable routing.

Features

• Designed for cable turning, guiding, and directional protection
• Reduces cable pulling friction during installation
• Protects cable insulation and outer sheath from abrasion
• Heavy-duty welded steel frame with corrosion-resistant galvanized finish
• Smooth-running rollers for stable cable movement
• Available with nylon, steel, or aluminum rollers
• Suitable for low, medium, and high-voltage cable installation
• Compatible with underground ducts, trenches, manholes, and cable pits
• Long service life with minimal maintenance
• OEM and customized designs available

Technical Specifications

Customized dimensions and specifications are available according to project requirements.

Applications

The Cable Turning Roller is widely used for:

• Underground power cable installation
• Electrical utility construction
• Cable trench installation
• Cable duct entrance guidance
• Cable corner protection
• Cable route direction control
• Substation construction
• Transmission and distribution line projects
• Renewable energy cable installation
• Wind farm electrical projects
• Solar power station cable laying
• Railway electrification
• Industrial cable installation
• Municipal infrastructure projects

Product Advantages

Excellent Cable Protection

The precision-machined rollers allow cables to move smoothly while preventing insulation damage, cable flattening, and sheath wear.

Reduced Pulling Force

Smooth bearings significantly reduce cable pulling resistance, making long-distance installations more efficient.

Multiple Roller Materials

Different roller materials can be selected based on cable weight, surface requirements, and working conditions.

• Nylon Roller – Lightweight, low friction, cable-friendly
• Steel Roller – High load capacity
• Aluminum Roller – Lightweight with excellent wear resistance

Heavy-Duty Construction

The reinforced steel frame maintains stability under heavy pulling loads and harsh construction environments.

Corrosion Resistance

Galvanized surface treatment protects against rust, moisture, and outdoor exposure.

Flexible Installation

Suitable for cable bends, corners, duct entrances, manholes, and various cable routing positions.

Why Choose Our Cable Turning Roller?

• Professional manufacturer of cable laying equipment
• Strict quality inspection before shipment
• OEM & ODM customization
• Stable production capacity
• Fast delivery
• International export experience
• Competitive factory pricing
• Technical support for project selection
