Balance Four Bundle Conductors Running Boards Transmission Line Stringing Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Head Boards For Four Bundle Conductors | Item No.: | 17231-17239 |
|---|---|---|---|
| Rated Load: | 130-320KN | Applicable Sheave WIdth: | 100-125mm |
| Weight: | 139-150KG | Feature: | Poising Sheave/ Conductor Are Independent |
| Warranty: | 1 Year | Explain: | Special Size Can Be Customized |
| Highlight: | Balance Conductors Running Boards,Four Bundle Conductors Running Boards,150KG stringing tools for transmission lines |
||

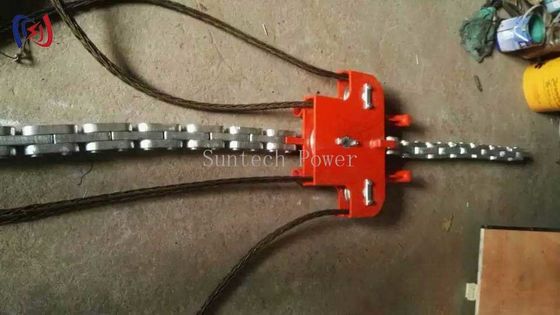

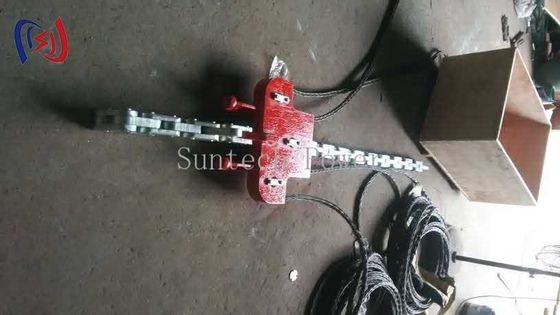

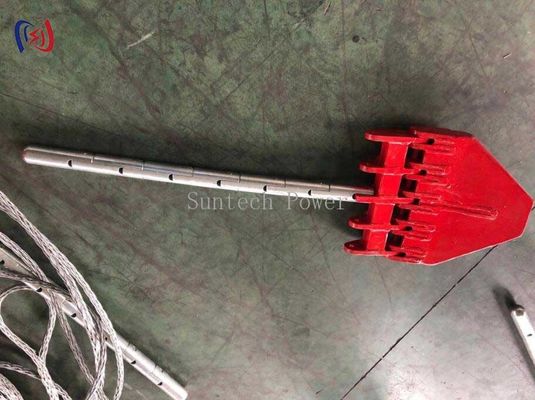

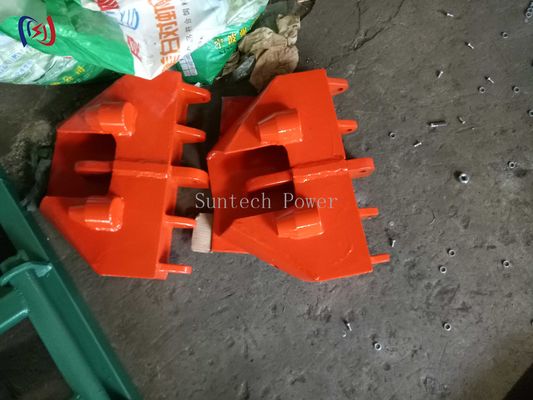

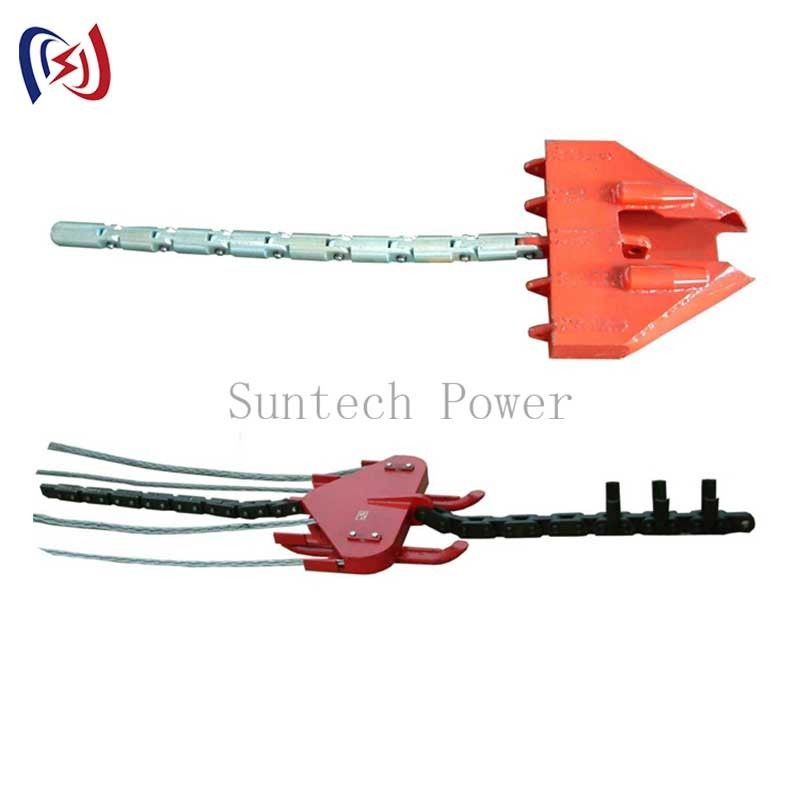

Balance Four Bundle Conductors Running Boards Transmission Line Stringing Tools
Balance Type Four Bundle Conductors Running Boards Transmission Line Stringing Tools are essential equipment for power transmission line construction and maintenance.
About Suntech Power Tools
Located in southeast China, the earliest origin of Power Tools Leading City in China, Suntech Power Tools specializes in manufacturing cable pulling tools and hydraulic tension pullers for transmission work.
Our products are:
- Manufactured per ISO 9001:2008 standards
- Available for OEM customization
- Exported to over 50 countries worldwide
- Recognized for best brand reputation
We offer customized solutions for stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.
Technical Parameters
| Item Number | Model | Rated Load (kN) | Weight (kg) | Width of Applicable Sheave (mm) | Features |
|---|---|---|---|---|---|
| 17231 | SZ4A-13 | 130 | 96 | 100 | Balanced pulley type |
| 17232 | SZ4B-13 | 130 | 65 | 100 | Conductors are independent of each other |
| 17233 | SZ4B-18 | 180 | 95 | 110 | Conductors are independent of each other |
| 17234 | SZ4B-25 | 250 | 110 | 110 | Conductors are independent of each other |
| 17238 | SZ4C-25 | 250 | 88 | 110 | Conductors are independent of each other |
| 17239 | SZ4B-32 | 320 | 150 | 125 | Conductors are independent of each other |
