54KN Handle Wire Rope Hoist Overhead Pilot Pulling Hoist Transmission Line Stringing Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Wire Rope Handle Hoist | Item No.: | 14183-14186 |
|---|---|---|---|
| Rated Lifting/ Pulling: | 8/12.5-54KN | Once Journey: | >40->20mm |
| Diametre Of Steel Rope: | 8.3-20mm | Standard Length Of Steel Rope: | 20M |
| Net Weight: | 6.8-52KG | Hand Wrenching At The Rate Load: | <343-<550N |
| Encasement Dimension: | 420x106x250-930x390x150mm | Warranty: | 1 Year |
| Highlight: | 54KN wire rope hoist,Handle wire rope hoist,54KN Transmission Line Stringing Tools |
||

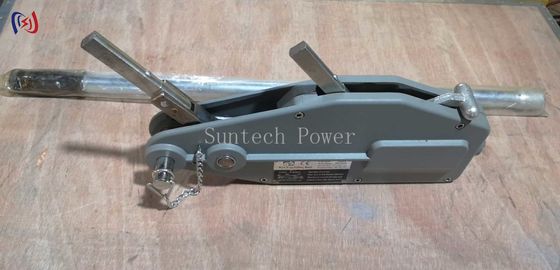

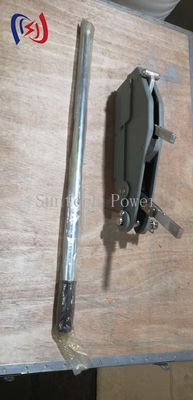

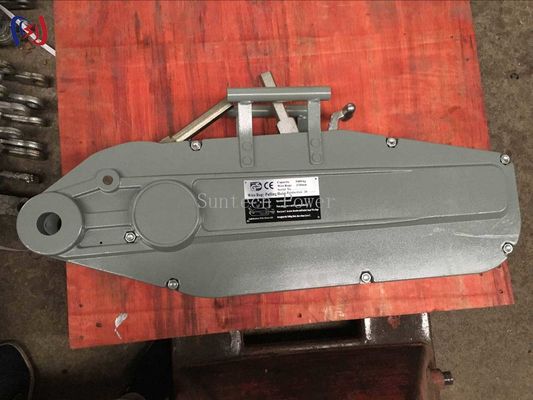

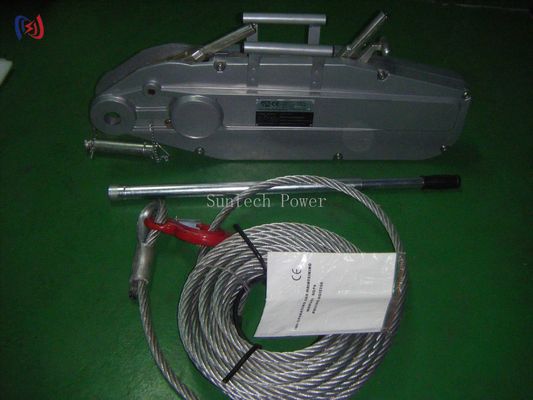

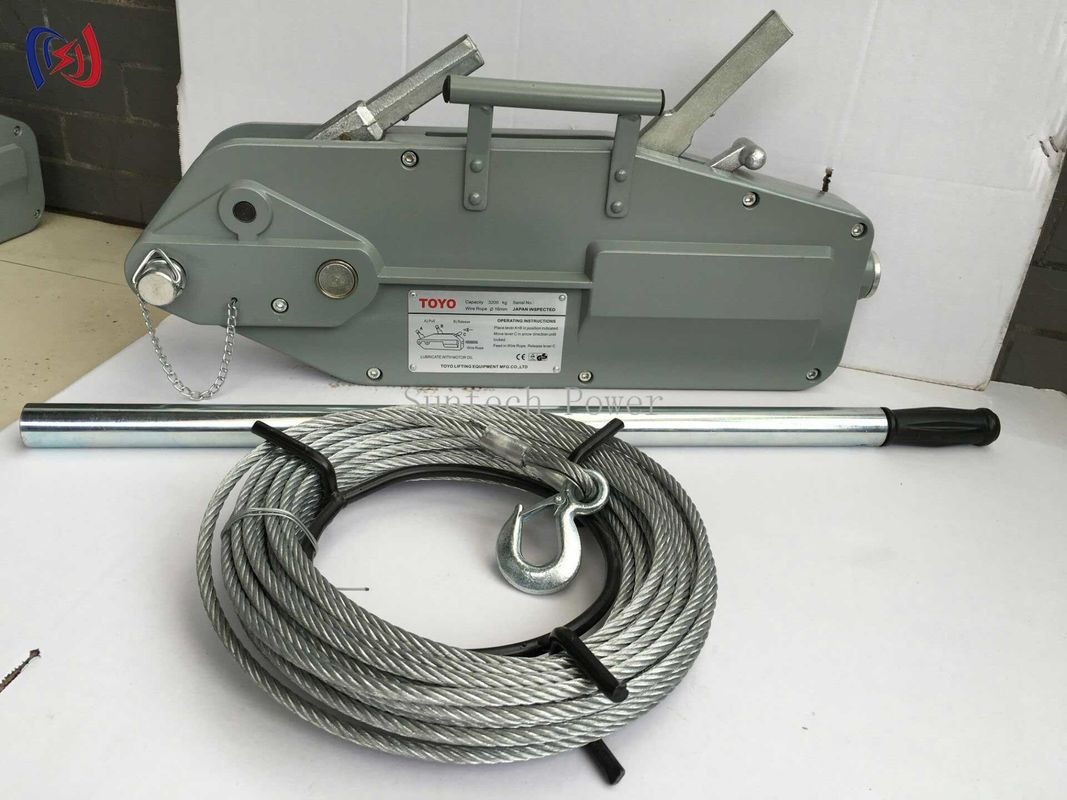

54KN Handle Wire Rope Hoist Overhead Pilot Pulling Hoist Transmission Line Stringing Tools
Wire Rope Handle Hoist Overhead Pilot Wire Rope Pulling Hoist Hand Winches
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools in China. We specialize in cable pulling tools and hydraulic tension pullers for transmission work. All products are manufactured per ISO 9001:2008 and exported to over 50 countries worldwide. We accept OEM orders and offer customization for items like stringing blocks, cable rollers, and jack stands. No MOQ required for Construction Safety Tools.
Product Features:
- Triple-function design: lifting, pulling, and tensioning
- Ideal for long-distance lifting/pulling in field locations without power source
Technical Specifications:
| Item No. | 14183 | 14184 | 14185 | 14186 |
|---|---|---|---|---|
| Model | HSS408 | HSS416 | HSS432 | HSS454 |
| Rated Lifting/Pulling(KN) | 8/12.5 | 16/25 | 32/50 | 54 |
| Once journey(MM) | >=40 | >=40 | >=16 | >=20 |
| Diameter of steel rope(MM) | Φ8.3 | Φ11 | Φ16 | Φ20 |
| Standard length of steel rope(M) | 20 | 20 | 20 | 20 |
| Net weight(KG) | 6.8 | 13 | 25 | 52 |
| Hand wrenching at the rate load(N) | <=343 | <=400 | <=441 | <=550 |
| Encasement dimension(MM) | 420*106*250 | 530*126*315 | 660*160*360 | 930*390*150 |
