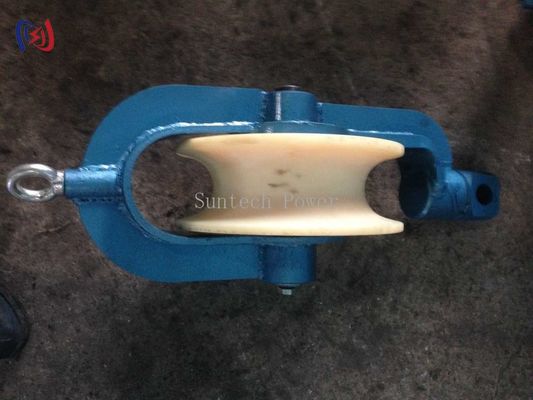

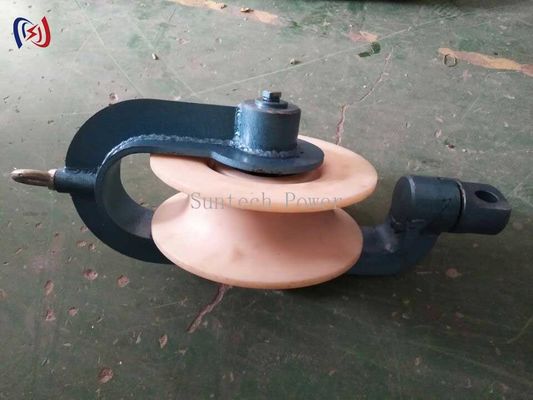

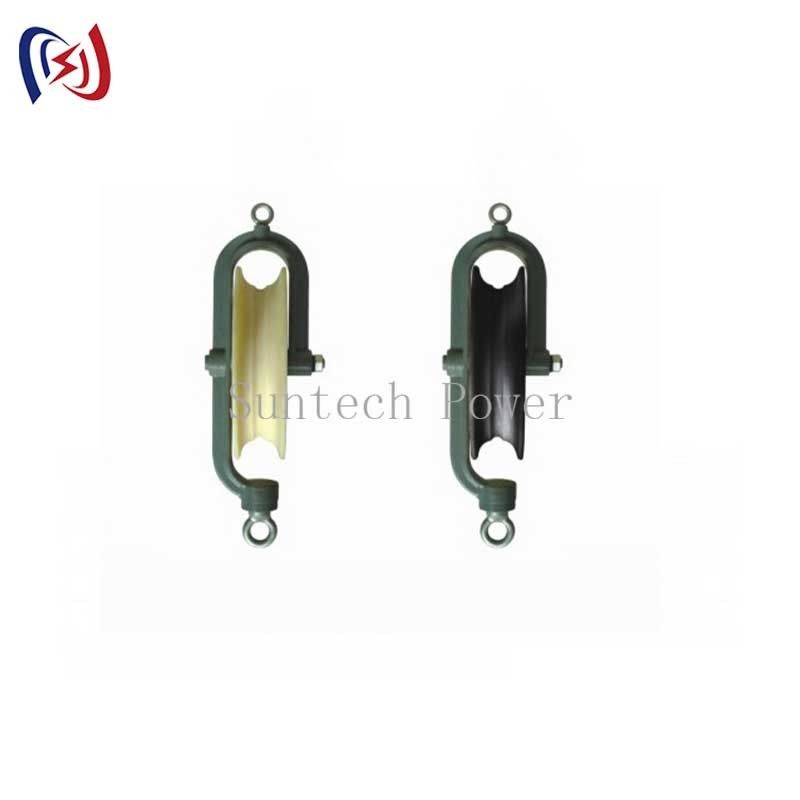

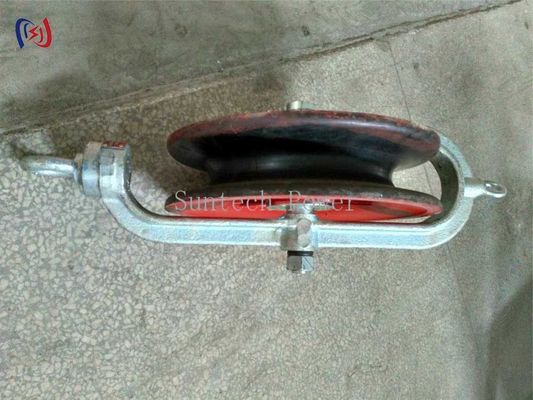

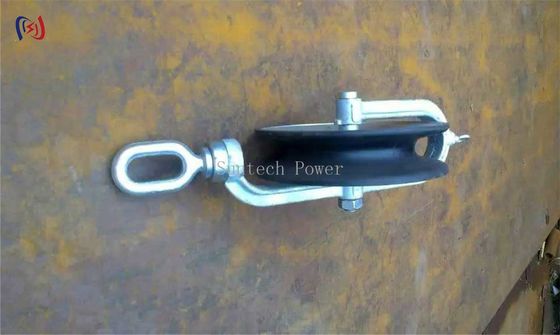

Overhead Line Hold Down Blocks LGJ120-LGJ720 Hold Down Wire Block
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hold Down Wire Block | Item No.: | 10241-10244C |
|---|---|---|---|
| Applicable Conductor: | LGJ120-LGJ720 | Rated Load: | 10-40KN |
| Weight: | 13-55KG | Remarks: | Aluminum Sheave With Rubber Liner/ Steel Sheave/ MC Nylon Sheave |
| Warranty: | 1 Year | Uses: | Apply To Hold Down The The Upward Conductor Andground Wire In Pulling. |
| Highlight: | Overhead Line Hold Down Blocks,LGJ120 Hold Down Blocks,LGJ720 Hold Down Wire Block |
||
Overhead Line Hold Down Blocks LGJ120-LGJ720 Hold Down Wire Block
Product Description
Overhead Line Round Belt Hold Down Wire Cable Pulley Stringing Block designed for securing upward conductors and ground wires during pulling operations.
About Suntech Power Tools: Located in southeast China, the origin of China's power tools industry. We specialize in cable pulling tools and hydraulic tension equipment for transmission work. All products are ISO 9001:2008 certified and exported to over 50 countries worldwide. We offer OEM services and customization for stringing blocks, cable rollers, jack stands, and construction safety tools with no minimum order quantity requirements.
Applications
- Anti-lifting automatic release pulley for pressing down earth wires or conductors during stringing
- Sheave mounted on ball bearings for smooth operation
- Frame constructed from high-quality galvanized steel
- Equipped with spring release system for automatic cable disengagement
- Available with MC nylon, steel, or aluminum sheave options
- Technical consultation available for optimal product selection
Technical Specifications
| Item Number | Model | Applicable Conductor | Rated Load (KN) | Weight (kg) | Remarks |
|---|---|---|---|---|---|
| 10241 | SHY10L | ≤ ACSR400 | 10 | 13 | Aluminum Sheave With Rubber Liner |
| 10242 | SHY10G | ≤ 14mm | 10 | 20 | Steel Sheave |
| 10243 | SHY25N | ≤ ACSR720 | 25 | 16 | MC Nylon Sheave |
| 10244A | SHY40G | ≤ 28mm | 40 | 55 | Steel Sheave |
| 10244B | SHY40L | ≤ ACSR720 | 40 | 39 | Aluminum Sheave |
| 10244C | SHY40N | ≤ ACSR720 | 40 | 34 | MC Nylon Sheave |
