Product Details:
Payment & Shipping Terms:
|

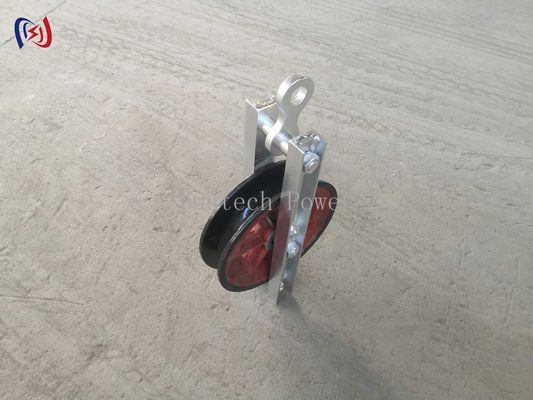

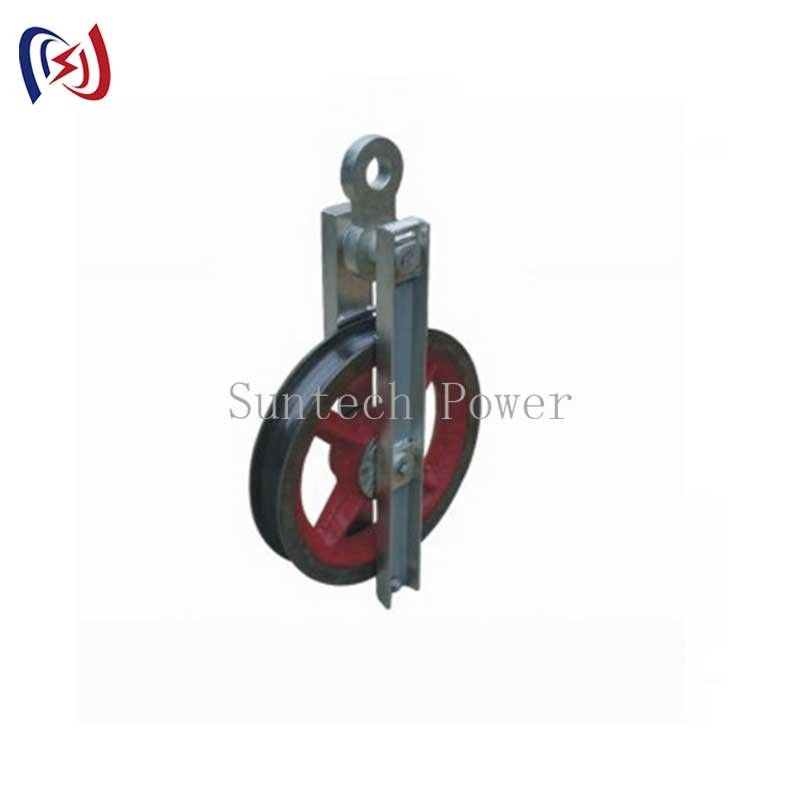

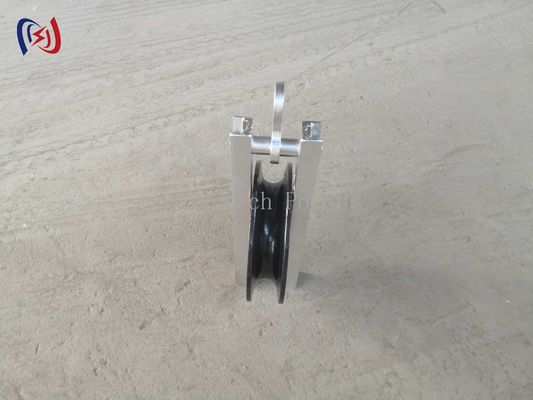

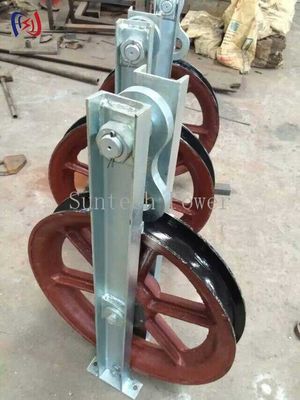

| Name: | High Speed Turning Block | Item No.: | 12141-12143 |
|---|---|---|---|
| Rated Load: | 50-300KN | Sheave Diameter: | 308-916mm |
| Sheave Width: | 75-110mm | Weight: | 22-200KG |
| Warranty: | 1 Year | Uses: | Apply To Steel Wire Rope Traction And Turning. It Can Pass Through Steel Wire Rope Connector; The Maximum Allowable Speed Of Hauling Rope Is 80m/min. |
| Highlight: | High Speed Turning Block,Turning Block Steel Sheave,fConductor iber optic stringing blocks |
||
| Item Number | Model | Rated Load (KN) | Sheave Diameter (mm) | Sheave Width (mm) | Weight (kg) | Remark |
|---|---|---|---|---|---|---|
| 12141 | THZ1-5 | 50 | Φ308 | 75 | 22 | Steel Sheave |
| 12141A | THZ1-8 | 80 | Φ308 | 110 | 30 | |
| 12142 | THZ1-16 | 160 | Φ600 | 110 | 115 | |
| 12143 | THZ1-30 | 300 | Φ916 | 110/125 | 200 |
