Nylon Overhead Line Conductor Stringing Blocks Three Wire Rope Sheave
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Three Sheaves Stringing Block | Item No.: | 10226 |
|---|---|---|---|
| Rated Load: | 5KN | Weight: | 2.8KG |
| Warranty: | 1 Year | Uses: | Apply To One Pull Three Bundle Small Bore Conductor. |
| Highlight: | Nylon Conductor Stringing Blocks,Overhead Line Conductor Stringing Blocks,Three wire rope sheave |
||

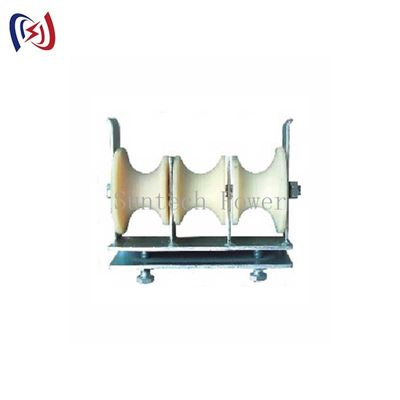

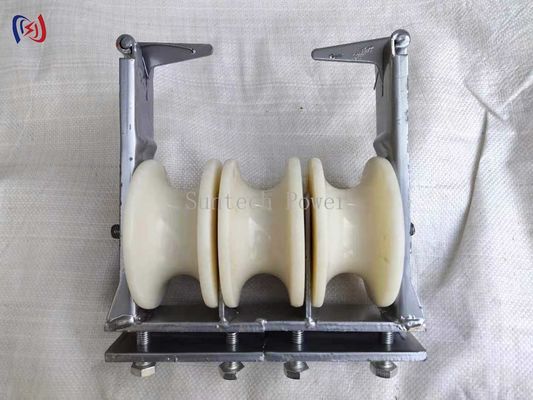

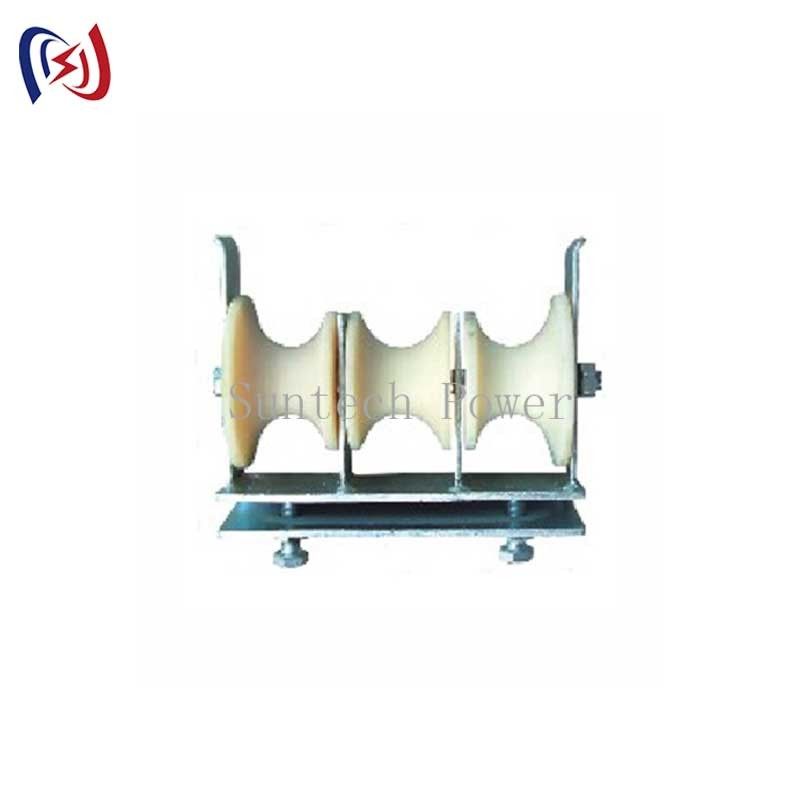

Nylon Overhead Line Conductor Stringing Blocks Three Wire Rope Sheave
Three Nylon Sheaves Overhead Line Conductor Stringing Blocks for Transmission Line
Suntech Power specializes in the research, development, production, and sales of power construction equipment including Stringing Blocks, Hoisting Tackle, Wire Grips, and other essential tools for electric power construction. We also serve as agents for various imported construction tools and power equipment.
Product Features
- Designed for angle iron applications with angles less than 90 degrees
- Capable of pulling three bundles of conducting wire with small cross-sections simultaneously
- Constructed with aluminum alloy/MC nylon mounted on ball bearings
- Groove lined with neoprene ring or wear-proof interchangeable nylon/aluminum wheels
- Galvanized steel frame for durability
- Available with three connection types: fixed (B), swivel-type (C), or with safety lock hook (D)
- Optional grounding device or complete conductive sheaves available upon request
Applications
Designed for pulling three bundle cross-sectional conductors in line construction, working with maximum angle iron ∠90.
Product Specifications
| Item Number | Model | Rated Load (kN) | Weight (kg) | Remark |
|---|---|---|---|---|
| 10226 | SH80S | 5 | 2.8 | Nylon sheave |
