5KN 10KN 20KN Wire Stringing Blocks Transmission Stringing Blocks
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item No.: | 10231 | Model: | SHC-0.5 |
|---|---|---|---|
| Rated Load: | 5-20KN | Weight: | 1.7-4.2KG |
| Warranty: | 1 Year | ||
| Highlight: | 20KN Wire Stringing Blocks,5KN Transmission Stringing Blocks,10KN Wire Stringing Blocks |
||

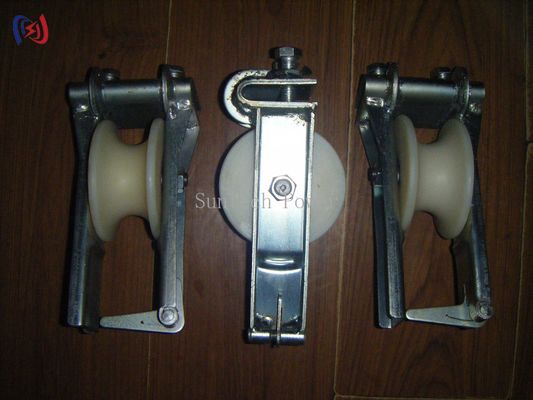

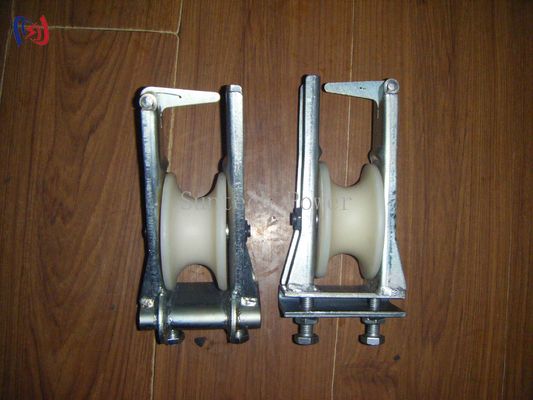

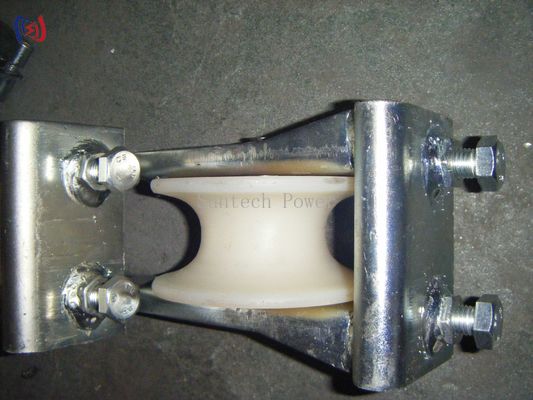

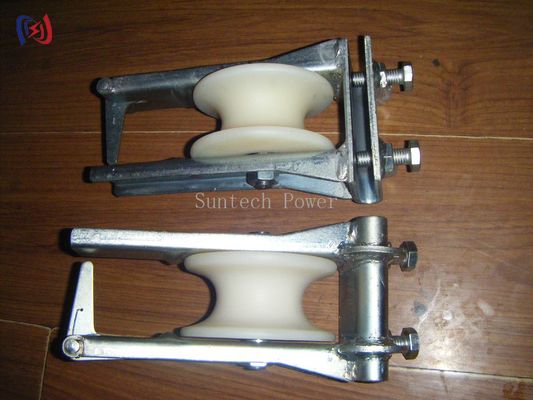

5KN 10KN 20KN Wire Stringing Blocks Transmission Stringing Blocks
Professional-grade aerial cable stringing rollers designed for electric power and communication cable construction. Available in various load capacities (5KN-20KN) with durable nylon or aluminum alloy construction.
Key Features
- Available with hook attachment for secure mounting
- High-quality smooth nylon roller with one-side opening mechanism
- Galvanized steel frame structure for corrosion resistance
- Lightweight yet durable construction
- Wear-resistant materials ensure long service life
- Multiple specifications available with customization options
Applications
Designed for pulling small diameter conductors on crossarm-mounted straight poles. Suitable for supporting conductors, OPGW, ADSS, and communication lines in overhead transmission line construction.
Technical Specifications

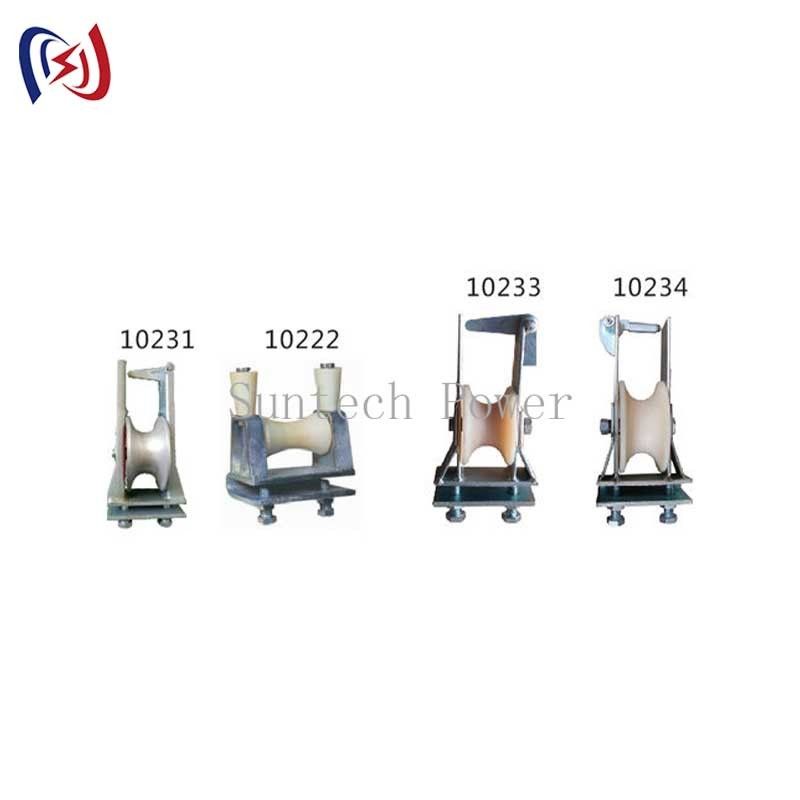

| Item Number | Model | Rated Load (KN) | Dia×Width | Applicable Conductor ACSR | Weight (kg) | Remark |
|---|---|---|---|---|---|---|
| 10231 | SHC-0.5 | 5 | Φ80X50 | 25-185 | 1.5 | Aluminium sheave |
| 10232 | SHC-2 | 20 | φ120X60 | 35-240 | 3 | |
| 10221 | SHC-1 | 10 | ≤ 400 | 4 | ||
| 10233 | SHCN-0.5 | 5 | Φ80X50 | 25-185 | 1.1 | Nylon sheave |
| 10234 | SHCN-2 | 20 | φ120X60 | 35-240 | 2.3 | |
| 10222 | SHLN-1 | 10 | ≤ 400 | 3 |
Manufacturer Information
Ningbo Suntech Power Machinery Tools Co., Ltd. is a leading Chinese manufacturer of electrical facilities products since 1995. We specialize in stringing blocks, hydraulic cable stands, anti-twist steel wire ropes, and other transmission line construction tools. Our products are exported to 120 countries with over 3000 clients worldwide.
