Nylon Sheave Stringing Blocks Conductor Transmission Stringing Blocks
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item No.: | 10261 | Model: | SHG-0.5 |
|---|---|---|---|
| Rated Load: | 5-20KN | Weight: | 2.1-3.6KG |
| Warranty: | 1 Year | ||
| Highlight: | Nylon Sheave Stringing Blocks,Conductor Transmission Stringing Blocks,Nylon Sheave Transmission Stringing Blocks |
||

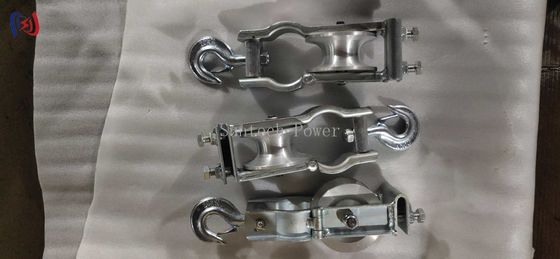

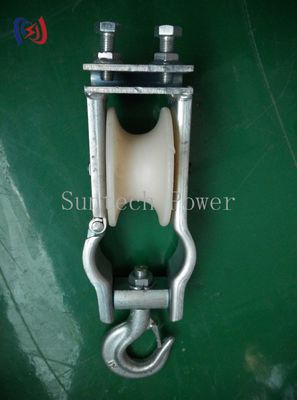

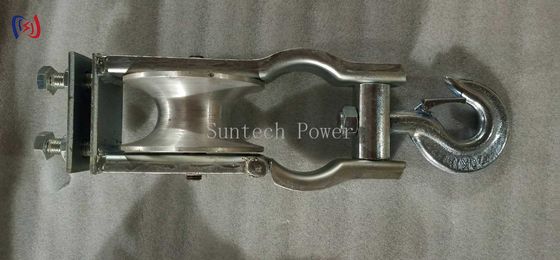

Nylon Sheave Stringing Blocks Conductor Transmission Stringing Blocks
The SHD Series Single Nylon Sheave Stringing Block Pulley is designed for conductor stringing operations in aerial cable installations. These versatile blocks can be used for suspension with hook fittings or mounted on cross arms.
Key Features
- Available with aluminum or nylon sheave options
- Rated load capacity from 5KN to 20KN
- Lightweight construction (1.9kg to 2.5kg)
- Standard sizes available for various applications
Technical Specifications
| Item Number | Model | Dimensions (mm) | Rated Load (kN) | Weight (kg) | Remark |
|---|---|---|---|---|---|
| 10261 | SHC-80×50 | Φ80×50 | 5 | 1.9 | Aluminum sheave |
| 10262 | SHC-120×30 | Φ120×30 | 5 | 2.1 | |
| 10263 | SHC-160×40 | Φ160×40 | 10 | 2.5 | |
| 10264 | SHC-120×58 | Φ120×58 | 20 | 3.5 | |

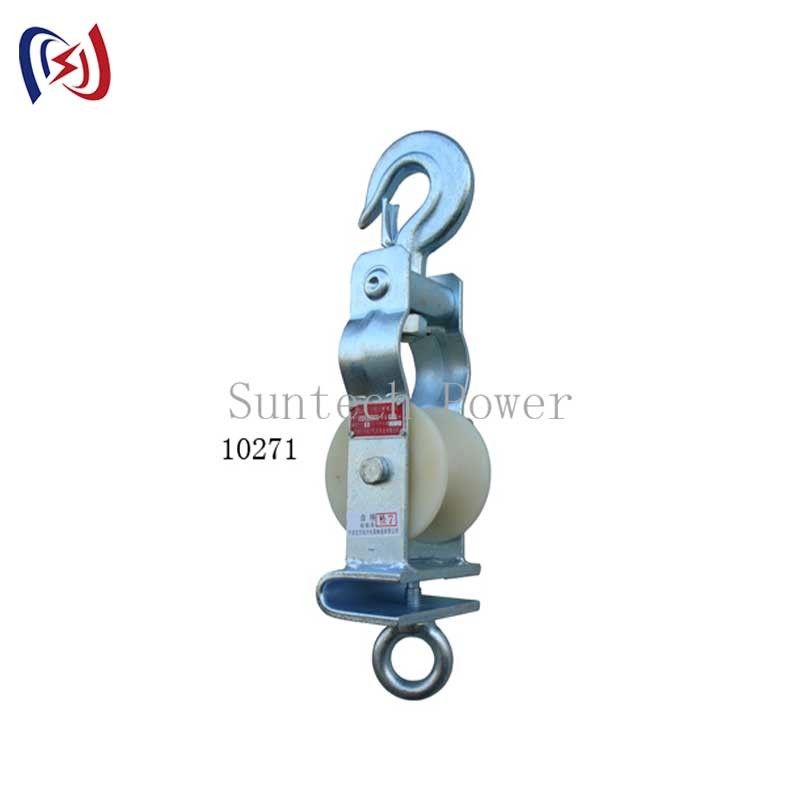

| 10271 | SHCN-80×50 | Φ80×50 | 5 | 1.4 | Nylon sheave |
| 10272 | SHCN-120×30 | Φ120×30 | 5 | 1.6 | |
| 10273 | SHCN-160×40 | Φ160×40 | 10 | 2 | |
| 10274 | SHCN-120×58 | Φ120×58 | 20 | 2.5 |
About Ningbo Suntech Power Machinery Tools Co., Ltd.
As a leading manufacturer and supplier in China since 1995, we specialize in electrical facility products including:
- Stringing blocks
- Hydraulic cable stands
- Anti-twist steel wire rope
- Complete range of transmission line construction tools
With one of the largest warehouses for stringing tools in China, we serve over 3000 clients across 120 countries. Our comprehensive product range includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, and other essential power construction equipment.
