A Shape Tubular Gin Pole Stringing Tools In Tower Erection Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | A-Shape Tubular Gin Pole | Item No.: | 03311/03321 |
|---|---|---|---|
| Length: | 6-9/ 8-13M | Diameter*wall: | 120x7/ 150x6mm |
| Vertical Load: | 30-17/ 31-13 KN | Safety Factor: | 2.5K |
| Weight: | 7.5KG/M / 8KG/M | Warranty: | 1 Year |
| Highlight: | Tower Erection Tools,inspection pulleys,stringing tools |
||

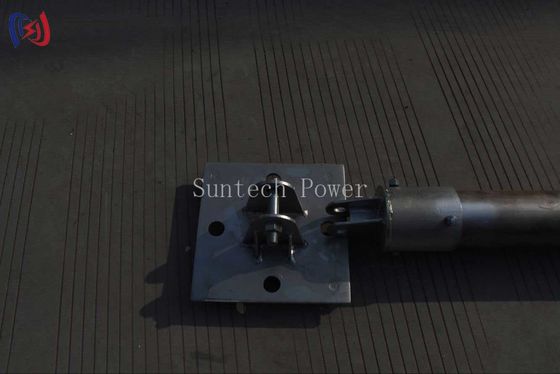

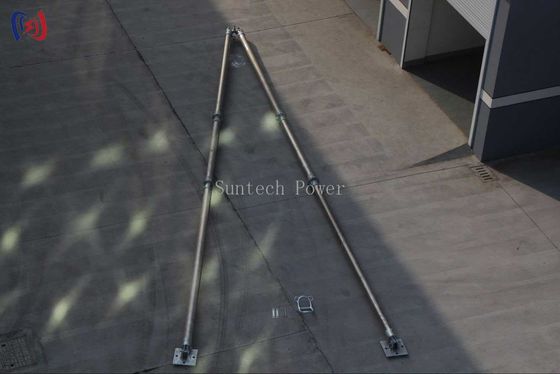

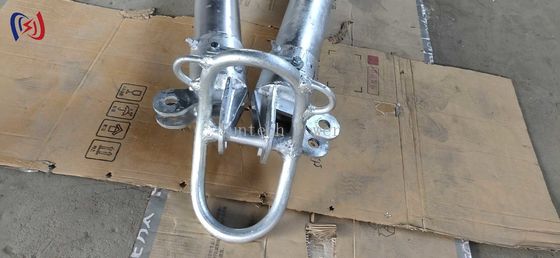

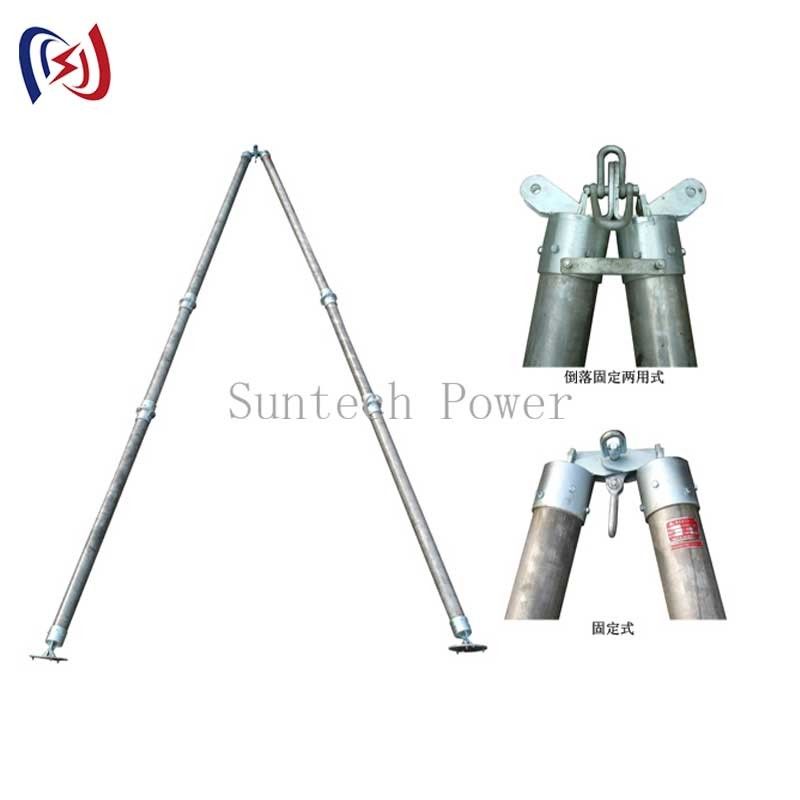

A Shape Tubular Gin Pole Stringing Tools In Tower Erection Tools
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools, hydraulic tensioners, and pullers to support transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide, earning excellent brand reputation.
We offer customization for items like stringing blocks, cable rollers, cable jack stands, etc. Construction Safety Tools have no minimum order quantity requirements.
Use and Characteristics
- Used for transmission and distribution line engineering, sling tower material, and positioning pulley set applications
- Features single-arm design for unrestricted directional use and convenient operation
- Constructed with right angle aluminum titanium alloy sections and rivet joints for portability and durability
Product Specifications
| Item Number | Model | Length (M) | Diameter*Wall (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
|---|---|---|---|---|---|---|
| 03311 | LBGR120A | 6-9 | 120x7 | 17-30 | 2.5 | 7.5 |
| 03321 | LBGR150A | 8-13 | 150x6 | 13-31 | 2.5 | 8 |
