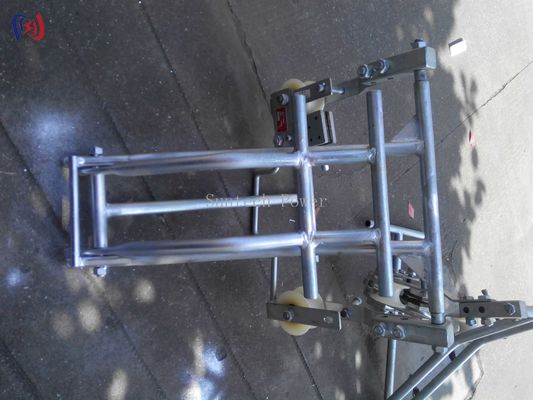

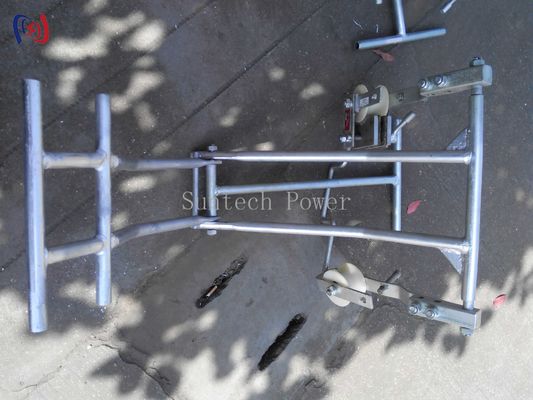

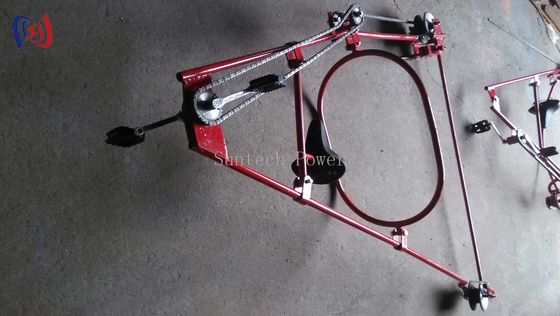

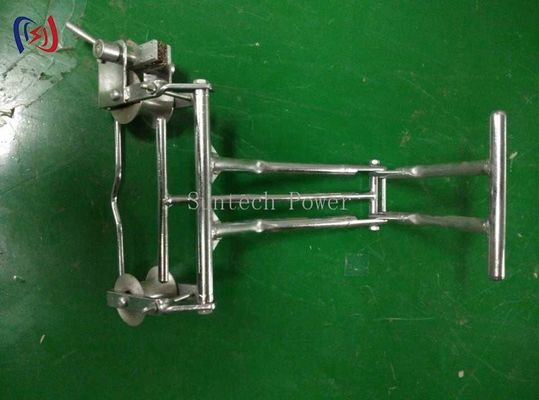

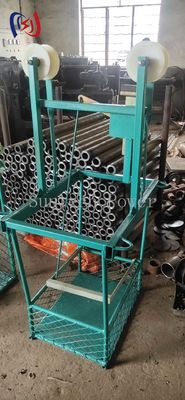

Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor

Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor
Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor

Large Image :  Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor Get Best Price

Product Details:
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: SFD1A
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: L/C,T/T
Supply Ability: 1000 SET/Month
Detailed Product Description
Name: Inspection Trolleys And Overhead Lines Bicycles For SIngle Conductor Item No.: 17261-17264
Rated Load: 1KN Diameter Of Sheave: 80-160mm
Maximum Through Diameter: 40-70mm Weight: 7-34KG
Warranty: 1 Year
Highlight:

conductor inspection trolleys

,

conductor tower erection tools

Inspection Trolleys and Overhead Lines Bicycles for Single Conductor
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tensioners, and pullers to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation.
We offer OEM services and customization for items like stringing blocks, cable rollers, cable jack stands, etc. Construction Safety Tools have no minimum order quantity (MOQ) requirements.
Application
Inspection trolleys and overhead line bicycles/carts for four bundle conductors are used to install accessories and perform maintenance on four split wires.
Technical Data

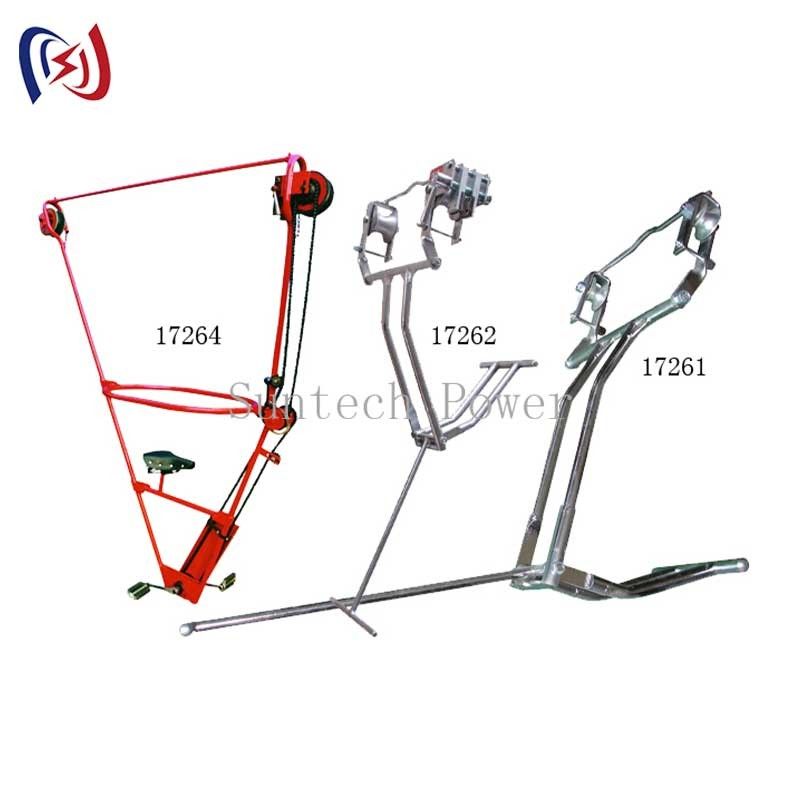

Item number Model Rated Load (KN) Diameter of Sheave (MM) Maximum through diameter (MM) Weight (KG/M)
17261 SFD1A 1 Φ55 Φ25 7
17262 SFD1B 1 Φ80 Φ40 7
17263 SFD 1 Φ160 Φ70 34
17264 SFD3 1 Φ160 Φ40 34
Inspection Trolleys and Overhead Lines Bicycles for SIngle Conductor 0
