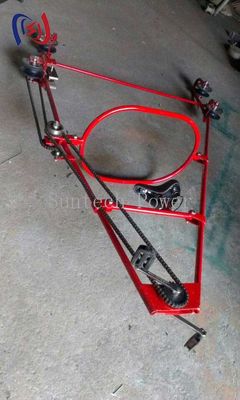

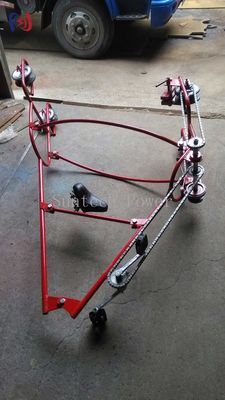

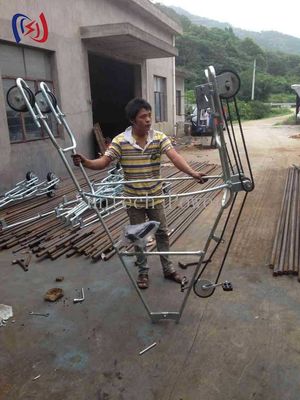

Inspection Trolleys And OVerhead Lines Bicyles For Two Bundle Conductors

Large Image : Inspection Trolleys And OVerhead Lines Bicyles For Two Bundle Conductors Get Best Price

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Suntech
Certification:	ISO9001
Model Number:	SFS2

Payment & Shipping Terms:

Minimum Order Quantity:	1 SET
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7-15days
Payment Terms:	L/C,T/T
Supply Ability:	1000 SET/Month

Contact Now

Detailed Product Description

Name:	Inspection Trolleys And OVerhead Lines Bicyles For Two Bundle Conductors	Item No.:	17251-17257
Rated Load:	1-1.5KN	Maximum Through Diameter:	40-70mm
Conductors Distance:	400/ 450 /500mm	Weight:	34-40KG
Remark:	Horizontal / Vertical	Warranty:	1 Year
Highlight:	Tower Erection Tools , inspection pulleys , stringing tools

Inspection Trolleys And Overhead Lines Bicycles For Two Bundle Conductors

Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools, hydraulic tensioners, and pullers to support transmission work. All products are manufactured per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation.

We offer OEM services and can customize items like stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.

Application

Inspection trolleys and overhead line bicycles/carts for four bundle conductors are used to install accessories and perform maintenance on four split wires.

Notes

Please specify the wire spacing when ordering. Free replacement available.

Technical Data

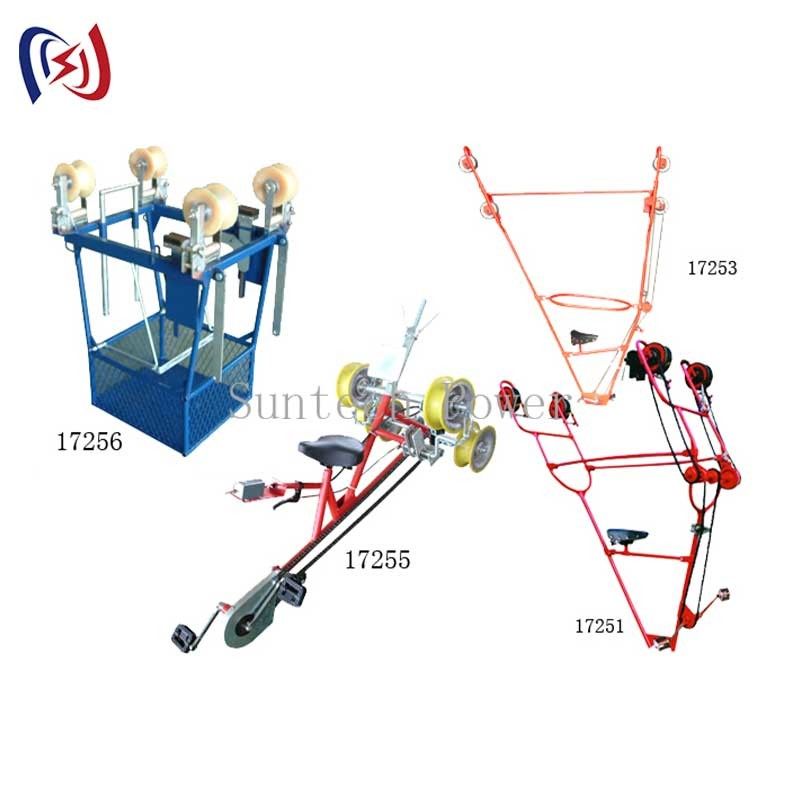

Item number	Model	Rated Load (KN)	Maximum through diameter (MM)	Conductors distance (MM)	Weight (KG/M)	Remark
17251	SFS2	1	Φ40	400	34	Horizontal
				450	36
				500	38
17253	SFS400	1	Φ40	400	40	Vertical
17255	FC400/450S	1	Φ60	400-450	34	Horizontal

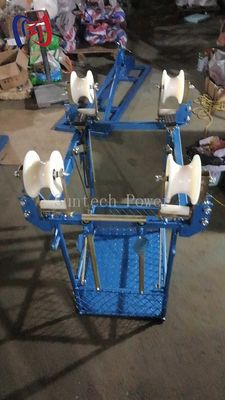

17256	SFS1-400	13	Φ70	400	38	Horizontal
17257	SFS1-450			450	40
