50mmGrounding Lead Double Tongue Tension Transmission Line Tower Erection Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Grounding Lead | Item No.: | 23012 |
|---|---|---|---|
| Voltage Class: | 10-500KV | Ground Soft Copper Wire: | 25-50mm |
| Warranty: | 1 Year | ||
| Highlight: | 50mm Tower Erection Tools,Transmission Line Tower Erection Tools,Grounding Lead Double Tongue Tension |
||
50mm Grounding Lead Double Tongue Tension Transmission Line Tower Erection Tools

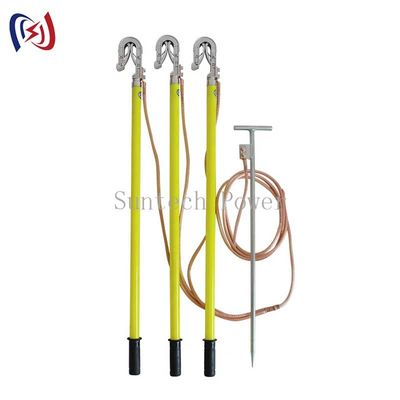

Grounding Lead Double Tongue Tension (Transmission Line Type)
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools and hydraulic tension pullers for transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.
Suitable for transmission lines, power plants, substation equipment, and short circuit grounding for power outage maintenance.
Key Features
- Wire clamper with aluminum alloy casting provides high strength and good conductivity

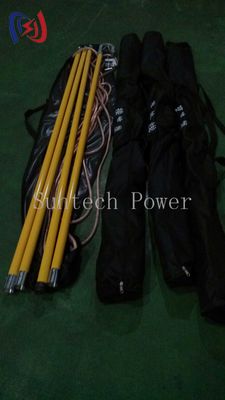

- Portable short-circuit grounding wire packed in canvas bag with exported wooden boxes for easy transport
Product Codes
Item No.23012 - Double tongue tension (Transmission line type)
Item No.23011 - Spiral compaction (Transmission line type)
Item No.23001 - Spiral compaction (Substation type)
Grounding Wire Configuration Table
| Voltage class | Ground soft copper wire (mm²) | Length of Ground Operation Rod (mm) | Insulating | Handheld | Total length |
|---|---|---|---|---|---|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 2*3+20 |
1300 | 700 | 2000 |
| 220KV | 25,35 | 9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35,50 | 12*3 4*3+25 |
3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
| 220-500KV Overhead ground wire | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| High pressure test equipment | 35,50 | 5*3~10*3 | 700 | 300 | 1000 |
Rated Values of Copper Wire per Meter
| Sectional area (mm) | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
|---|---|---|---|---|---|---|---|---|
| Wire diameter (mm) | 4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
| Sheath diameter (MΩ) | 7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
| Resistance value (A) | 1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
| Safety current | 90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
