10KV - 500KV Grounding Lead Spiral Compaction Earth Wire Transmission Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Grounding Lead | Item No.: | 23011 |
|---|---|---|---|
| Voltage Cals: | 10-500KV | Ground Soft Copper Wire: | 25-50mm |
| Warranty: | 1 Year | ||
| Highlight: | 10KV Grounding Lead,500KV Grounding Lead,Spiral Compaction Earth Wire Transmission Line |
||
10KV - 500KV Grounding Lead Spiral Compaction Earth Wire Transmission Line

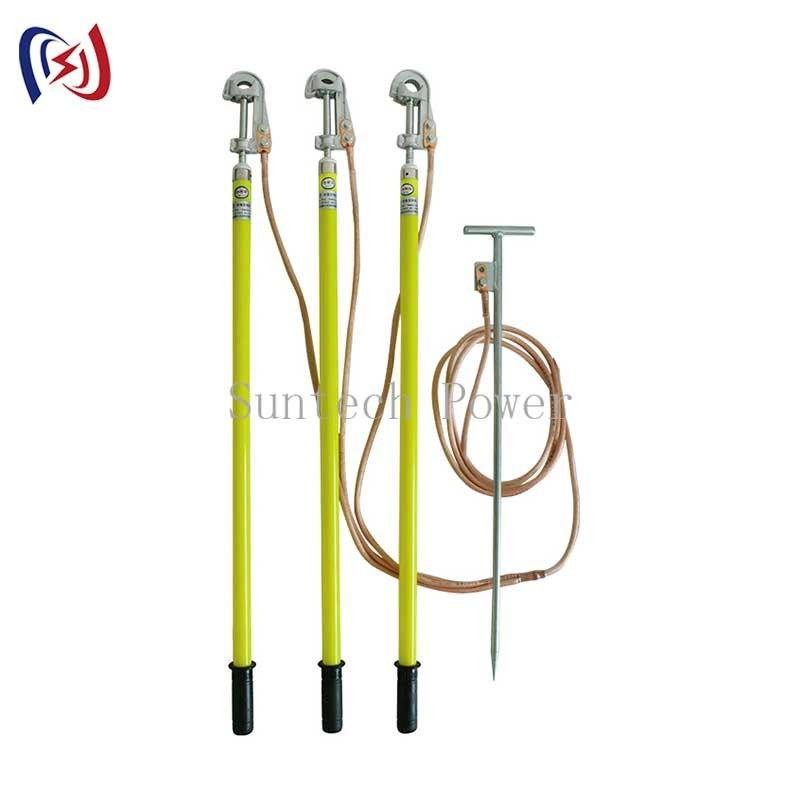

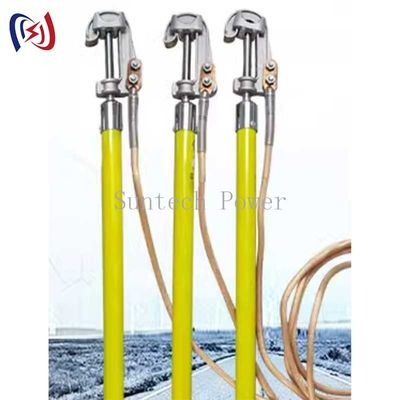

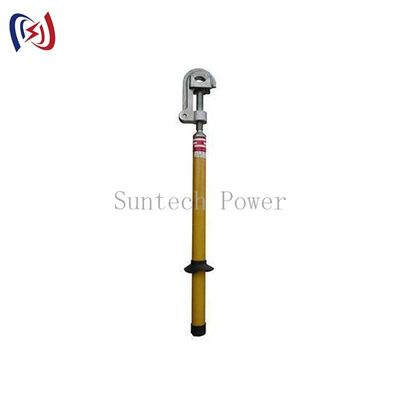

Grounding Lead Spiral Compaction (Transmission Line Type)
Suntech Power Tools, located in southeast China, is the earliest origin power tools leading city in China. We specialize in manufacturing various cable pulling tools and hydraulic tension pullers to support transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.
Suitable for transmission lines, power plants, substation equipment, and short circuit grounding for power outage maintenance.
Key Features

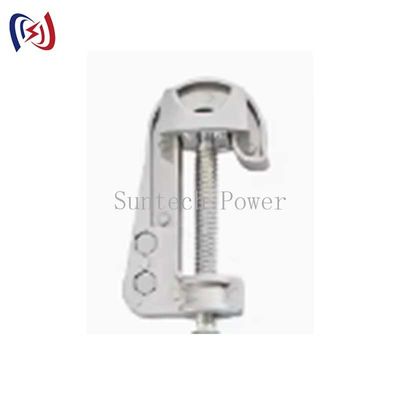

- Wire clamper with aluminum alloy casting provides high strength and good conductivity
- Portable short-circuit grounding wire packed in canvas bags with exported wooden boxes for easy transport
Product Variants
Item No.23012 - Double tongue tension (Transmission line type)
Item No.23011 - Spiral compaction (Transmission line type)
Item No.23001 - Spiral compaction (Substation type)
Item No.23011 - Spiral compaction (Transmission line type)
Item No.23001 - Spiral compaction (Substation type)
Grounding Wire Configuration
| Voltage class | Ground soft copper wire (mm²) | Length of Ground Operation Rod (mm) | Insulating | Handheld | Total length |
|---|---|---|---|---|---|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 2*3+20 |
1300 | 700 | 2000 |
| 220KV | 25,35 | 9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35,50 | 12*3 4*3+25 |
3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
Copper Wire Specifications
| Sectional area (mm) | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
|---|---|---|---|---|---|---|---|---|
| Wire diameter (mm) | 4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
| Sheath diameter (MΩ) | 7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
| Resistance value (A) | 1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
| Safety current | 90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
