500KV Substation Type Grounding Lead Spiral Compaction Tower Erection Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Grounding Lead | Item No.: | 23001 |
|---|---|---|---|
| Voltage Class: | 10-500KV | Ground Soft Copper Wire: | 25-50mm |
| Warranty: | 1 Year | ||
| Highlight: | 500KV rounding Lead Spiral Compaction,Substation Type rounding Lead Spiral Compaction,ODM Tower Erection Tools |
||
500KV Substation Type Grounding Lead Spiral Compaction Tower Erection Tools

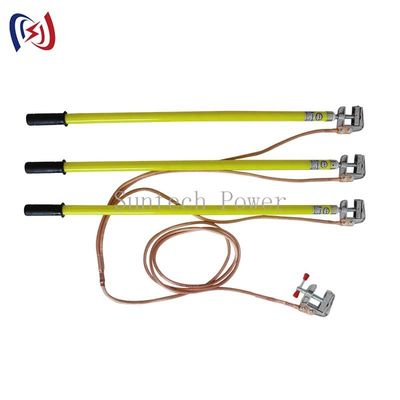

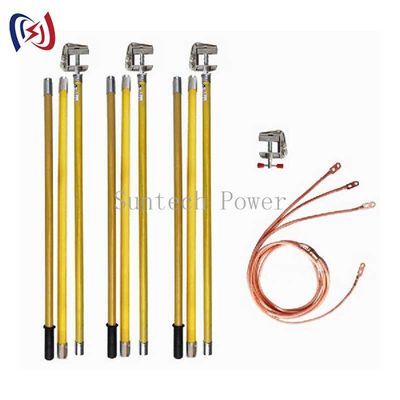

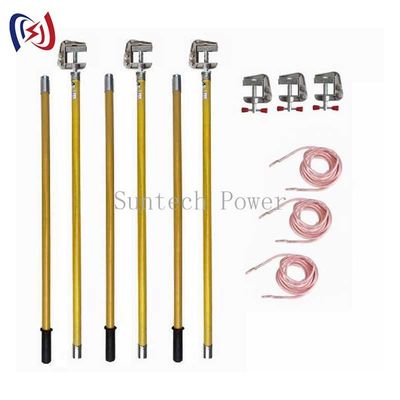

Grounding Lead Spiral Compaction (Substation Type)
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools and hydraulic tension pullers to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation.
Suitable for transmission lines, power plants, substation equipment, and short circuit grounding for power outage maintenance.
Key Features
- Wire clamper with aluminum alloy casting provides high strength and good conductivity

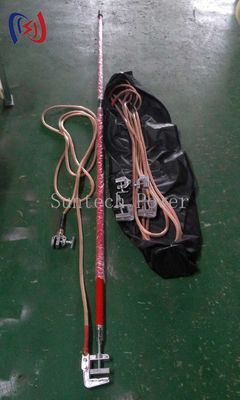

- Portable short-circuit grounding wire packed in canvas bag with exported wooden boxes for easy carrying and transport
Item No.23012 - Double tongue tension (Transmission line type)
Item No.23011 - Spiral compaction (Transmission line type)
Item No.23001 - Spiral compaction (Substation type)
Grounding Wire Configuration Table
| Voltage class | Ground soft copper wire (mm²) | Length of Ground Operation Rod (mm) | Insulating | Handheld | Total length |
|---|---|---|---|---|---|
| 10KV | 25 | 1*3+7~1.5*3+20 | 700 | 300 | 1000 |
| 35KV | 25 | 1.5*3+18 | 900 | 600 | 1500 |
| 68KV | 25 | 1.5*3+20 | 1000 | 600 | 1600 |
| 110KV | 25,35 | 9*3 2*3+20 |
1300 | 700 | 2000 |
| 220KV | 25,35 | 9*3 3*3+25 |
2100 | 900 | 3000 |
| 330KV | 35,50 | 12*3 4*3+25 |
3000 | 1100 | 4100 |
| 500KV | 35,50 | 13*3~20*3 | 4100 | 1400 | 5500 |
Copper Wire Specifications
| Sectional area (mm) | 10 | 16 | 25 | 35 | 50 | 70 | 95 | 120 |
|---|---|---|---|---|---|---|---|---|
| Wire diameter (mm) | 4.2 | 5.7 | 7.5 | 8.78 | 11 | 12 | 16 | 17 |
| Sheath diameter (MΩ) | 7.3 | 7.8 | 9.6 | 11.2 | 12.6 | 16.5 | 21 | 22 |
| Resistance value (A) | 1.98 | 1.24 | 0.79 | 0.56 | 0.4 | 0.28 | 0.21 | 0.16 |
| Safety current | 90 | 100 | 123 | 150 | 210 | 238 | 300 | 300 |
