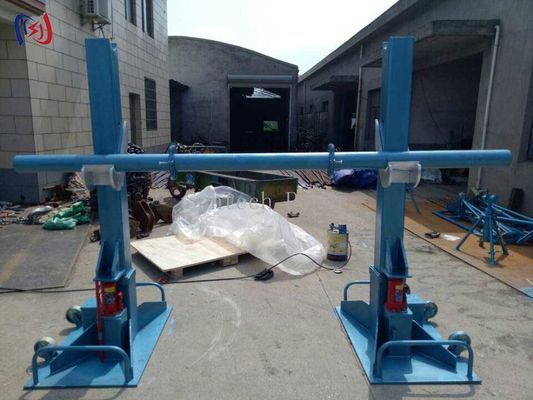

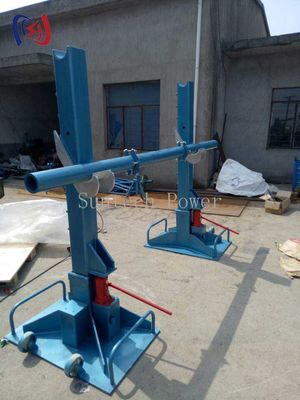

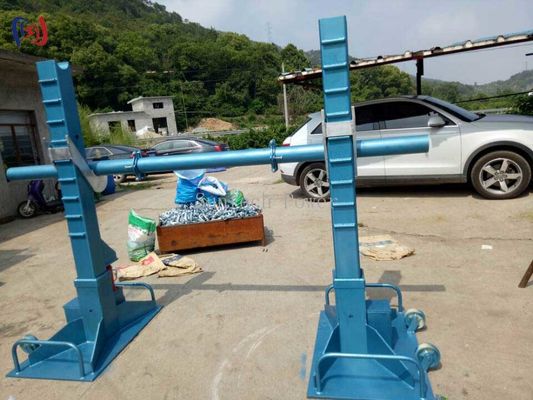

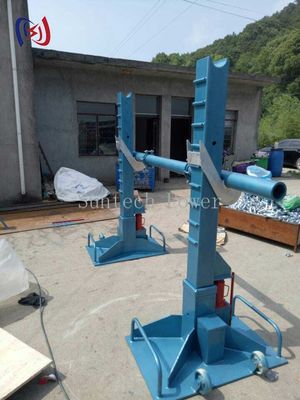

50KN-300KN Wire Reel Stand Hydraulic Heavy Duty Reel Stands
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Hydraulic Type Cable Reel Stand | Item No.: | 21346-21344 |
|---|---|---|---|
| Rated Load: | 50-300KN | Diameter: | <2400-<5000mm |
| Width: | <1600-<3100mm | Hole Diameter: | 76-200mm |
| Weight: | 172-600KG | Warranty: | 1 Year |
| Uses: | Apply To Carring Cable Reel. | Feature: | Hydraulic Lifter With Small Wheels In The Bottom For Easy Moving. |
| Explain: | Standard Configuration, Including Shaft. | ||
| Highlight: | 300KN Wire Reel Stand,50KN Wire Reel Stand,Hydraulic Heavy Duty Reel Stands |
||
50KN-300KN Wire Reel Stand Hydraulic Heavy Duty Reel Stands
Hydraulic Type Cable Reel Stand Cable Drum Stand Transmission Line Stringing Tools
About us: Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We specialize in manufacturing various cable pulling tools, hydraulic tensioners, and pullers to support transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide, earning excellent brand reputation. Items like stringing blocks, cable rollers, and cable jack stands can be customized. Construction Safety Tools have no minimum order quantity requirements.
Features
- Designed as support for large cable reels during urban cable laying operations
- Easy mobility with built-in trundles at the base
- Optional braking device available with foot brake operation
Application
The stand uses hydraulic lifting mechanism. Equipped with small wheels at the base for easy mobility. Can be fitted with brake device operated by foot pedal. Specifically designed for carrying and supporting cable reels during installation.
Technical Data
| Item Number | Model | Rated Load (KN) | Applicable Cable Reel (mm) | Weight (kg) | ||
|---|---|---|---|---|---|---|
| Diameter | Width | Hole Diameter | ||||
| 21346 | SI-5 | 50 | ≤ Φ2400 | ≤1600 | Φ76-103 | 172 |
| 21347 | SI-10 | 100 | ≤ Φ2700 | ≤1700 | Φ120-135 | 230 |
| 21348 | SI-10A | 100 | ≤ Φ3400 | ≤1900 | Φ120-135 | 230 |
| 21349 | SI-16 | 160 | ≤ Φ4000 | ≤2500 | Φ125-200 | 325 |
| 21343 | SI-20 | 200 | ≤ Φ4000 | ≤2500 | Φ135-160 | 450 |
| 21344 | SI-30 | 300 | ≤ Φ5000 | ≤3100 | Φ160-200 | 600 |
