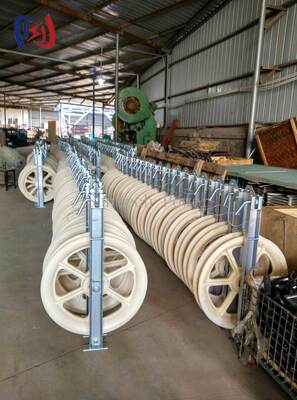

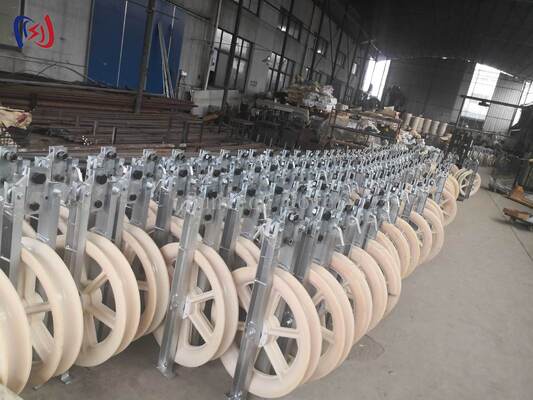

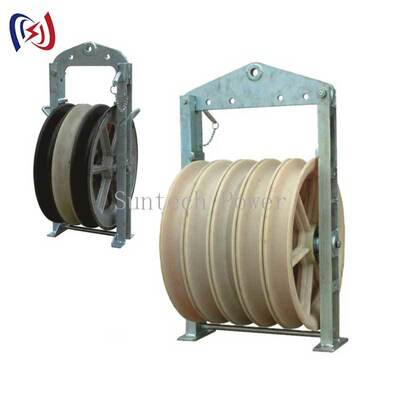

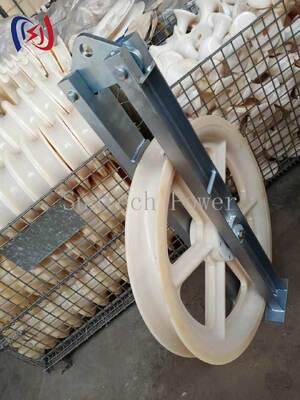

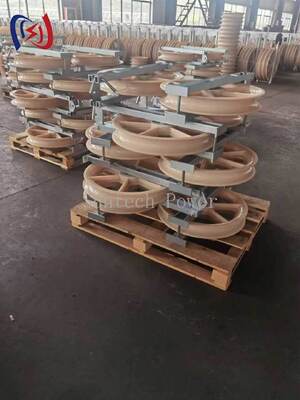

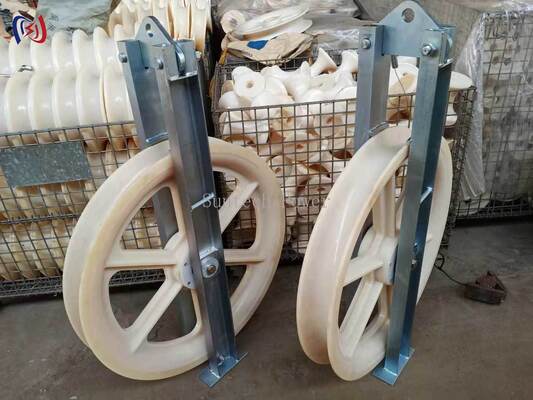

660 Series Stringing Block 660mm Multi Sheave Conductor Pulley for Transmission Line Construction
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | 660 Series Stringing Block | Model: | SHD |
|---|---|---|---|
| Rated Load: | 20-60 | Weight: | 30-110 |
| Highlight: | 660mm multi sheave conductor pulley,transmission line stringing block,660 series conductor pulley |
||
660 Series Stringing Block - 660mm Multi Sheave Conductor Pulley
Product Overview
The 660 Series Stringing Block is a professional overhead transmission line stringing tool designed for conductor installation, tension stringing operations, and power line construction projects.
Featuring a multi-sheave structure, nylon sheaves, and reinforced steel frame, this stringing block provides guided support for conductors during installation. It is commonly used with tension stringing equipment to maintain smooth conductor movement and reduce friction during long-distance overhead line construction.
The 660mm conductor stringing pulley is suitable for high voltage transmission line projects, power grid infrastructure construction, and electrical engineering applications requiring reliable conductor guiding performance.
Product Features
660mm Large Diameter Sheave Design
The 660mm sheave diameter provides a larger running radius for conductors, making it suitable for overhead transmission line stringing operations. The larger pulley size helps guide conductors smoothly during pulling and installation processes.
Multi Sheave Structure for Transmission Line Applications
The multi-sheave configuration provides continuous support for conductors during stringing operations. It is suitable for projects requiring stable conductor guidance and efficient installation procedures.
Nylon Sheave Design for Conductor Protection
The nylon sheave provides a smoother contact surface between the conductor and pulley, helping reduce friction and minimize potential conductor surface damage during installation.
Reinforced Steel Frame Construction
The steel frame structure provides mechanical support for the sheave assembly during conductor pulling operations. The compact structure also allows convenient installation and transportation at construction sites.
Product Specifications
| Specification Item | Details |
|---|---|
| Product Name | 660 Series Stringing Block |
| Model Series | 660 Series |
| Sheave Diameter | 660mm |
| Sheave Type | Multi Sheave |
| Sheave Material | Nylon / Composite Material (According to Configuration) |
| Frame Material | Steel |
| Application | Overhead Transmission Line Stringing |
| Operation Type | Conductor Pulling and Installation |
| Structure | Multi Wheel Pulley Design |
| Compatible Equipment | Tension Stringing Equipment |
| Industry Application | Power Transmission Construction |
| Customization | Available According to Project Requirements |
Note: Actual specifications may vary depending on different models and customer requirements.
Application Areas
High Voltage Transmission Line Construction
The 660 Series Stringing Block is widely used for overhead transmission line projects, including:
- High voltage power line installation
- Transmission network expansion
- Electrical infrastructure construction
- Long-distance conductor stringing projects
Power Grid Engineering Projects
This stringing block is suitable for professional power engineering teams involved in:
- Grid upgrading projects
- New transmission line construction
- Overhead conductor replacement
- Transmission line maintenance
Conductor Stringing Operations
Typical applications include:
- Conductor pulling
- Tension stringing operations
- Overhead cable installation
- Power line construction support
Product Advantages
Smooth Conductor Guiding
The multi-sheave design provides continuous support for conductors, helping maintain smooth movement during installation.
Reduced Friction During Stringing
The suitable sheave material and pulley structure help reduce friction between the conductor and the stringing block.
Durable Structural Design
The combination of steel frame and high-strength sheave components provides reliable mechanical support for transmission line construction.
Suitable for Professional Power Projects
The 660 Series Stringing Block is designed for demanding overhead line construction environments where stable conductor guidance is required.
Why Choose 660 Series Stringing Block?
During transmission line installation, stringing equipment directly affects conductor protection and construction efficiency. The 660 Series Stringing Block provides:
- 660mm large diameter sheave structure
- Multi-sheave support design
- Nylon sheave option for conductor protection
- Reinforced steel frame construction
- Professional solution for overhead transmission line projects
