1160 Series Stringing Block | Nylon Sheave Conductor Pulley for Overhead Transmission Line Construction

Product Introduction

The 1160 Series Stringing Block is a professional conductor stringing tool designed for overhead transmission line construction, conductor pulling, and tension stringing operations.

This stringing block series is mainly used to support and guide conductors during power transmission line installation. According to different construction requirements, the 1160 Series Stringing Block is available in different configurations, including single sheave and double sheave structures.

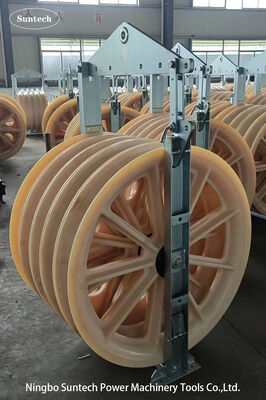

The product features a nylon/composite sheave and reinforced steel frame structure, providing a smooth running surface and stable mechanical support during conductor installation. The design helps reduce direct friction between the conductor and pulley, supporting conductor protection and controlled stringing operations.

The 1160 Series Conductor Stringing Pulley is widely used in overhead transmission projects, power grid construction, and electrical infrastructure development where reliable conductor guidance is required.

Product Features

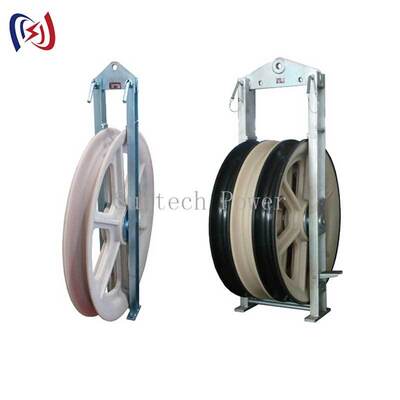

1. Single and Double Sheave Configurations

The 1160 Series Stringing Block provides different sheave configurations to meet various transmission line construction requirements.

Available structures include:

• Single Sheave Stringing Block
• Double Sheave Stringing Block

Different configurations allow flexible selection according to conductor installation methods and project conditions.

2. Nylon Sheave for Smooth Conductor Guidance

The stringing block adopts nylon or composite material sheaves.

Compared with traditional metal contact surfaces, nylon sheaves provide smoother conductor guidance during stringing operations and help reduce friction between the conductor and pulley.

3. Reinforced Steel Frame Structure

The steel frame provides stable support for the sheave assembly during conductor pulling operations.

The compact structural design is suitable for transportation, installation, and field operation in overhead line construction environments.

4. Designed for Transmission Line Applications

The 1160 Series Stringing Block is designed for professional power transmission projects, supporting conductor installation processes including pulling, guiding, and tension stringing.

Product Specification

Note: Technical specifications may vary depending on different configurations and customer requirements.

Application Areas

1. Overhead Transmission Line Construction

The 1160 Series Stringing Block is commonly used in:

• High voltage transmission line projects
• Overhead power line installation
• Power grid infrastructure construction
• Transmission network expansion

2. Conductor Stringing Operations

Suitable for:

• Conductor pulling
• Tension stringing operations
• Overhead conductor installation
• Long-distance transmission line construction

3. Electrical Engineering Projects

Applications include:

• New transmission line development
• Power infrastructure projects
• Grid upgrading projects
• Transmission line maintenance

Product Advantages

Smooth Conductor Guidance

The nylon/composite sheave provides a smooth contact surface to guide conductors during installation and helps maintain stable conductor movement.

Reduced Friction During Stringing

The sheave material and structural design help reduce friction between the conductor and pulley during stringing operations.

Reliable Mechanical Structure

The combination of steel frame and composite sheave provides stable support for professional transmission line applications.

Flexible Configuration Selection

Single and double sheave options allow customers to select suitable stringing solutions according to project requirements.

Why Choose 1160 Series Stringing Block?

During overhead transmission line construction, proper stringing equipment is essential for conductor protection and installation control.

The 1160 Series Stringing Block provides:

• Professional conductor guidance structure
• Nylon/composite sheave design
• Reinforced steel frame
• Single and double sheave options
• Compatibility with transmission line stringing operations
