Grounding Wire Stringing Block | Nylon Sheave Earth Wire Pulley for Transmission Line Construction

Product Introduction

The Grounding Wire Stringing Block is a specialized stringing tool designed for overhead transmission line construction, grounding wire installation, and earth wire pulling operations.

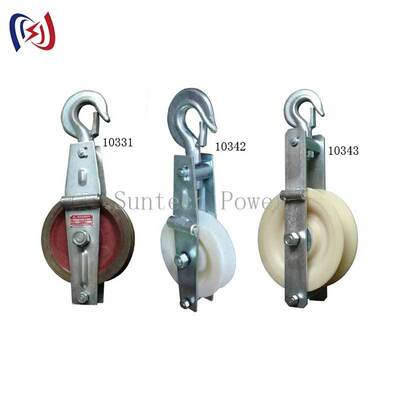

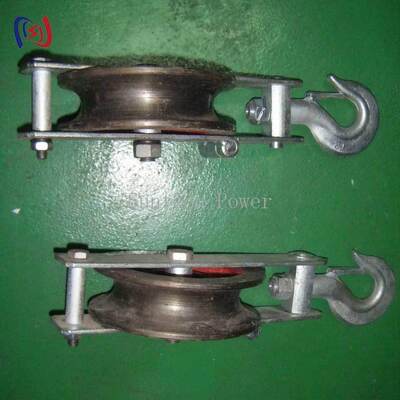

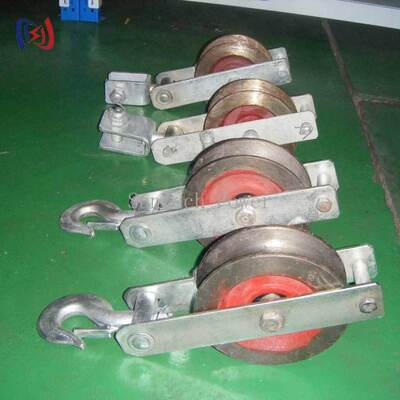

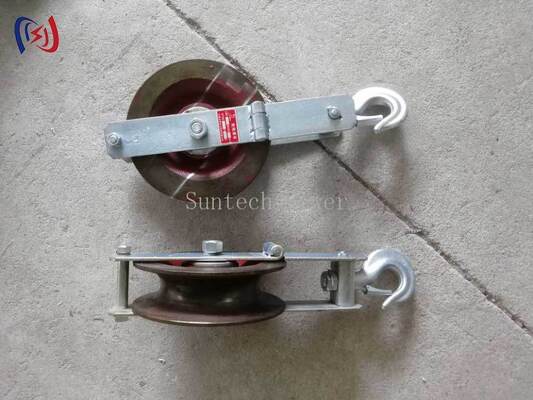

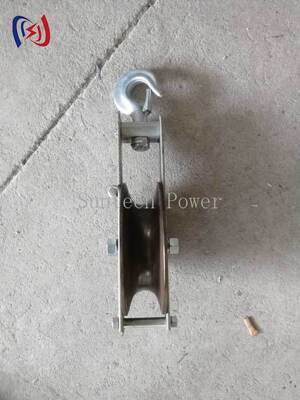

This product features a single sheave structure, hook-type mounting design, and steel support frame, providing reliable guidance and support during grounding wire installation.

The grounding wire pulley is mainly used to guide earth wires and grounding conductors during stringing operations. The nylon or composite sheave provides a smooth contact surface, helping reduce friction between the wire and pulley during movement.

With a compact structure and practical installation design, this Ground Wire Stringing Block is widely applied in power transmission projects, overhead line construction, and electrical infrastructure installation.

Product Features

Single Sheave Structure for Ground Wire Guidance

The single sheave design provides an efficient solution for grounding wire routing and installation.

It helps guide the wire during:

• Overhead transmission line construction
• Ground wire pulling operations
• Electrical line installation
• Power infrastructure projects

The compact structure allows convenient installation in different working environments.

Nylon / Composite Sheave Design

The pulley uses a nylon or composite material sheave, creating a smoother contact surface compared with direct metal contact.

The sheave structure helps:

• Reduce friction during wire movement
• Protect the surface of grounding wire
• Improve wire guiding performance

Hook Type Mounting Structure

The upper hook design allows flexible installation on transmission line structures.

The hook-type configuration provides:

• Easy attachment during field operation
• Convenient installation and removal
• Adaptability for overhead line construction environments

Steel Support Frame

The steel frame provides mechanical support for the sheave assembly.

The structure is designed for:

• Stable operation
• Outdoor construction applications
• Long-term field use conditions

Product Specification

Note: Dimensions, rated load capacity, and detailed technical specifications can be customized according to project requirements.

Application Areas

1. Overhead Transmission Line Construction

The Grounding Wire Stringing Block is widely used in:

• Transmission line projects
• High voltage power line construction
• Overhead electrical infrastructure
• Grid expansion projects

2. Ground Wire Installation

Typical applications include:

• Earth wire installation
• Ground conductor pulling
• Wire positioning
• Stringing operation support

3. Power Engineering Projects

Suitable for:

• Power utility construction
• Transmission system maintenance
• Electrical engineering projects
• Outdoor line installation

Product Advantages

Smooth Wire Guidance

The nylon sheave provides a smooth running surface, supporting controlled movement of grounding wires during installation.

Improved Wire Protection

The non-metallic sheave reduces direct contact between the wire and metal components, helping minimize surface wear during stringing.

Flexible Installation

The hook-type mounting design allows quick connection and convenient operation during overhead line construction.

Durable Structural Design

The steel support frame provides stable mechanical support for outdoor transmission line applications.

Why Choose Grounding Wire Stringing Block?

During overhead transmission line construction, proper stringing equipment helps improve wire installation control and protect conductor surfaces.

The Grounding Wire Stringing Block provides:

• Professional grounding wire guidance
• Nylon sheave structure
• Hook-type installation design
• Steel support frame
• Application flexibility for transmission projects
