Swerve Skyward Stringing Block | Nylon Guide Pulley for Transmission Line Construction

Product Introduction

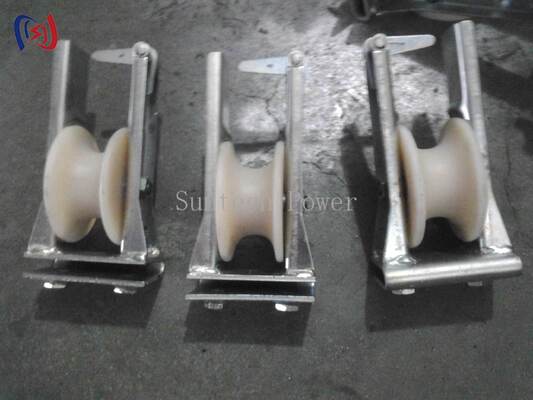

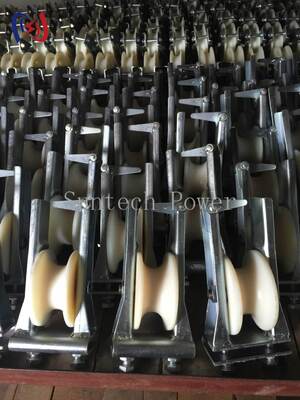

The Swerve Skyward Stringing Block is a specialized stringing tool designed for overhead transmission line construction, conductor installation, and wire direction changing operations.

Also known as an angle stringing block or directional stringing pulley, this equipment is used to guide conductors through directional changes during stringing operations.

The product features a nylon/composite guide sheave, steel support frame, and directional guiding structure, providing smooth conductor movement and stable support during installation.

It is commonly used in power transmission projects where conductors need controlled routing through angles, elevation changes, or complex line paths.

Product Features

Direction Change Guiding Structure

The Swerve Skyward Stringing Block is designed for conductor routing where the installation path requires a change of direction.

The guide structure helps:

• Control conductor running direction
• Maintain smooth wire movement
• Support safe stringing operations
• Adapt to complex overhead line layouts

Nylon / Composite Guide Sheave

The pulley uses a non-metallic sheave design, providing a smoother contact surface for conductor movement.

Advantages of the sheave structure include:

• Reduced friction between conductor and pulley
• Protection of conductor surface during pulling
• Smooth guidance during stringing operations

Steel Supporting Frame

The steel frame provides mechanical support for the pulley assembly.

The structure is suitable for:

• Outdoor transmission line construction
• Field installation environments
• Long-term power engineering applications

Compact Installation Design

The compact structure allows flexible installation in different working conditions.

It is suitable for:

• Transmission line angle points
• Direction changing sections
• Overhead conductor installation projects

Product Specification Table

Note: Detailed dimensions, rated working load, and conductor compatibility can be customized according to project requirements.

Application Areas

1. Overhead Transmission Line Construction

The Swerve Skyward Stringing Block is widely applied in:

• High voltage transmission projects
• Overhead power line construction
• Electrical grid infrastructure development
• Power engineering installation

2. Conductor Stringing Operations

Typical applications include:

• Conductor pulling
• Wire direction adjustment
• Tension stringing operations
• Transmission line installation

3. Complex Route Transmission Projects

Suitable for projects involving:

• Line angle changes
• Difficult terrain installation
• Complex overhead routing
• Power network expansion

Product Advantages

Smooth Direction Guidance

The directional pulley structure helps guide conductors smoothly during changes in routing direction.

Reduced Conductor Friction

The nylon/composite sheave provides a smoother running surface, helping reduce friction during conductor movement.

Better Conductor Protection

The non-metallic contact surface helps reduce direct abrasion between conductor and steel components.

Flexible Field Installation

The compact design supports convenient installation and operation in different transmission line construction environments.

Reliable Structural Support

The steel frame provides stable support for the sheave system during stringing operations.

Why Choose Swerve Skyward Stringing Block?

During overhead transmission line construction, conductor routing becomes more challenging when the line path includes angle sections or directional changes.

A professional Swerve Skyward Stringing Block helps provide:

• Controlled conductor direction
• Smooth stringing operation
• Reduced conductor contact friction
• Reliable mechanical support
• Flexible application for transmission projects
