Dual Use Stringing Block with Nylon Sheave for Transmission Line Construction

Product Introduction

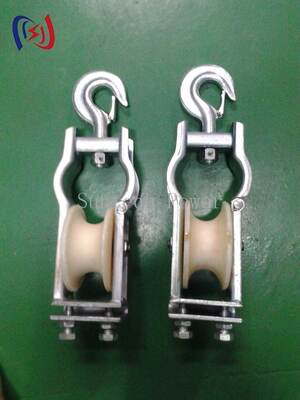

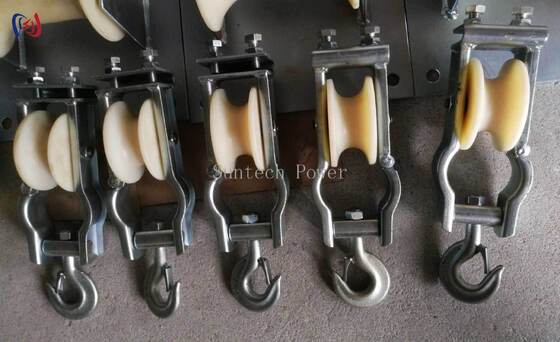

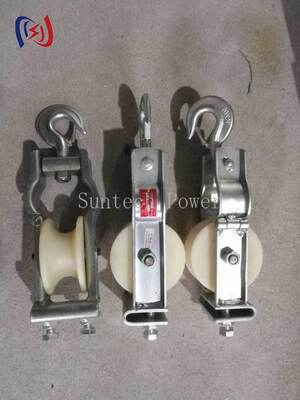

The Sitting and Hanging Type Dual-Use Stringing Block is a versatile conductor guiding tool designed for overhead transmission line construction, conductor stringing, and power engineering installation.

This dual-purpose stringing pulley combines sitting installation and hanging installation methods, allowing flexible application according to different construction environments.

The stringing block adopts a nylon/composite sheave, steel support frame, and hook mounting structure, providing smooth conductor guidance and stable support during stringing operations.

It is widely used in transmission line projects where reliable conductor routing and flexible installation methods are required.

Product Features

Dual Installation Modes

The key feature of this product is its dual-use structure, which supports both:

• Sitting type installation
• Hanging type installation

This design allows operators to select a suitable mounting method according to site conditions.

Applications include:

• Tower structures
• Line angle sections
• Temporary conductor support points
• Different overhead line construction environments

Nylon Sheave for Smooth Conductor Guidance

The pulley uses a nylon/composite sheave that provides a smoother contact surface compared with metal-only structures.

Benefits include:

• Reduced conductor surface abrasion
• Smooth conductor movement during pulling
• Improved guidance performance during stringing operations

Hook Type Supporting Structure

The upper hook structure allows convenient suspension installation.

The design helps:

• Simplify field installation
• Adapt to different working positions
• Provide flexible conductor support solutions

Steel Frame Construction

The steel supporting frame provides mechanical stability for the pulley assembly.

Suitable for:

• Outdoor power line construction
• Transmission engineering projects
• Long-term field operation environments

Product Specification Table

Note: Product dimensions, sheave diameter, rated working load and conductor compatibility can be customized according to project requirements.

Application Areas

1. Overhead Transmission Line Construction

The dual-use stringing block is commonly applied in:

• High voltage transmission line projects
• Overhead power network construction
• Electrical infrastructure development
• Utility engineering projects

2. Conductor Stringing Operations

Typical applications include:

• Conductor pulling
• Wire installation
• Tension stringing operations
• Cable routing guidance

3. Power Grid Maintenance and Expansion

Suitable for:

• Transmission line upgrading
• Grid expansion projects
• Replacement and maintenance work

Product Advantages

Flexible Installation Solution

The sitting and hanging dual-use structure provides more installation options compared with single mounting stringing blocks.

Improved Conductor Protection

The nylon sheave provides a smooth running surface, helping reduce direct contact damage during conductor movement.

Suitable for Complex Construction Conditions

The flexible mounting design allows application in different overhead line environments.

Stable Mechanical Support

The steel frame structure provides reliable support for conductor guiding operations.

Easy Field Operation

The compact structure supports convenient transportation, installation, and operation at construction sites.

Why Choose Dual Use Stringing Block?

During overhead transmission line construction, different sections of a project may require different installation methods.

A Dual Use Stringing Block provides:

• Flexible sitting and hanging installation
• Smooth conductor guidance
• Nylon sheave protection
• Reliable steel frame support
• Adaptability for different construction conditions

It is an efficient solution for professional transmission line stringing operations.
