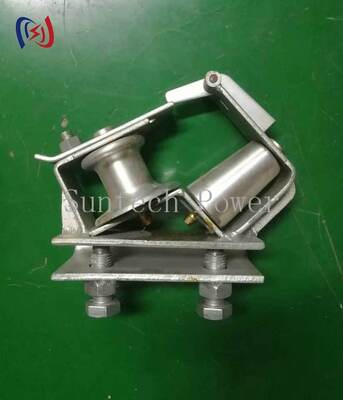

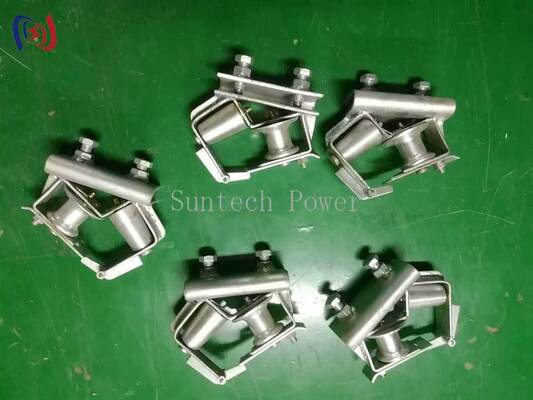

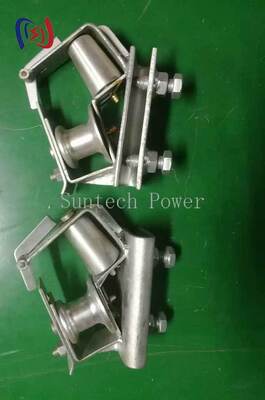

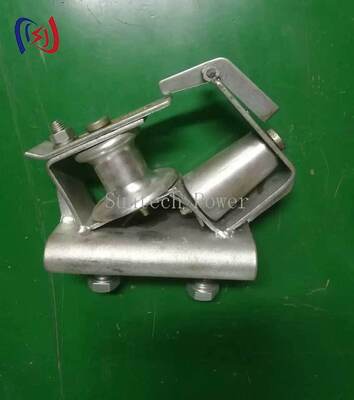

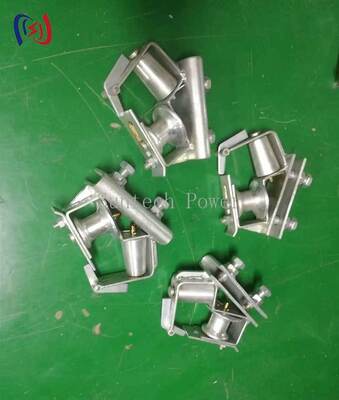

Skyward Corner Stringing Block with Double Roller Design for Transmission Line Construction

Product Introduction

The Skyward Corner Stringing Block is a specialized conductor guiding device designed for overhead transmission line construction, especially for conductor stringing operations at angle sections and corner points.

During transmission line installation, conductors need to change direction at tower corners or route turning points. This corner stringing block provides smooth conductor guidance through a structured roller system, helping reduce friction and maintain proper conductor alignment during pulling operations.

The product adopts a steel support structure and roller guiding design, making it suitable for overhead power line construction, transmission projects, and conductor installation applications.

Product Features

Corner Guiding Structure for Direction Change

The Skyward Corner Stringing Block is designed for conductor routing at corner sections.

The guiding structure helps:

• Support conductor movement at turning points
• Maintain smooth pulling direction
• Reduce unnecessary friction during stringing operations

It is suitable for sections where the conductor needs controlled direction changes.

Double Roller Design

The product features a multi-roller guiding structure that provides stable support for conductors.

Advantages include:

• Smooth conductor passing
• Reduced contact resistance
• Improved conductor guidance during installation

Durable Steel Frame Construction

The steel frame provides mechanical support for outdoor construction environments.

Suitable for:

• Transmission line installation
• Power grid construction
• Field stringing operations

Conductor Protection Function

The roller design helps reduce direct friction between the conductor and supporting structure.

It helps protect:

• Conductor surface condition
• Cable alignment
• Stringing operation stability

Product Specification Table

Note: Dimensions, conductor compatibility, working load and technical specifications can be customized according to project requirements.

Application Areas

1. Overhead Transmission Line Construction

The corner stringing block is widely used in:

• High voltage transmission line projects
• Overhead power network construction
• Electrical infrastructure development

2. Conductor Stringing Operations

Typical applications include:

• Conductor pulling
• Line angle section installation
• Tension stringing projects
• Transmission line assembly

3. Power Grid Expansion and Maintenance

Suitable for:

• New transmission line construction
• Existing line renovation
• Power system expansion projects

Product Advantages

Smooth Conductor Direction Change

The corner guiding structure helps conductors pass through angle sections smoothly during stringing operations.

Reduced Friction at Corner Sections

The roller system helps minimize resistance when conductors change direction.

Improved Construction Efficiency

Designed for professional transmission line installation environments, helping simplify conductor routing work.

Reliable Mechanical Structure

The steel frame provides stable support for outdoor electrical construction applications.

Suitable for Complex Line Routes

The product is suitable for transmission routes with angle sections and directional changes.

Why Choose Skyward Corner Stringing Block?

In overhead transmission line construction, corner sections are critical areas where conductors experience directional changes and increased mechanical resistance.

A dedicated Corner Stringing Block provides:

• Controlled conductor turning
• Stable roller guidance
• Reduced friction during pulling
• Reliable field support
• Better adaptability for angle sections

It is an essential auxiliary tool for professional conductor stringing projects.
