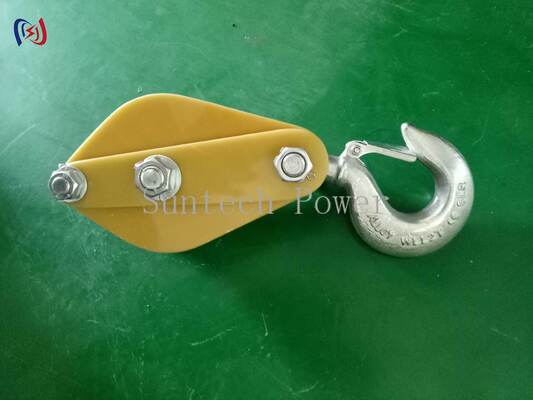

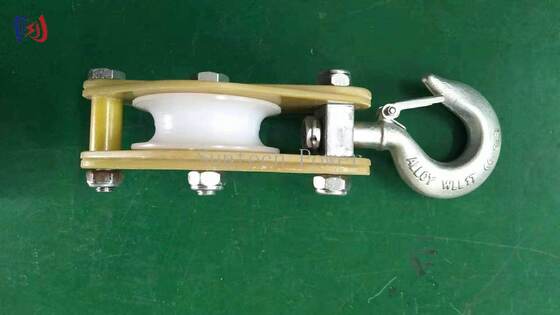

Insulated Hoisting Tackle for Overhead Line Construction | Insulated Nylon Sheaves | Electrical Line Lifting Pulley

Product Overview

The Insulated Hoisting Tackle is a specialized lifting pulley designed for energized line work, overhead transmission line construction, power distribution maintenance, and utility installation projects. Compared with conventional steel pulley blocks, this insulated model adopts high-strength insulated nylon sheaves to reduce electrical conductivity risks while providing smooth rope movement during lifting and pulling operations.

The product is suitable for lifting insulators, hardware fittings, conductors, grounding accessories, stringing tools, and other transmission line components. It is widely used by electric utilities, EPC contractors, transmission line construction companies, and maintenance teams.

Available in single sheave, double sheave, and customized multi-sheave configurations, the Insulated Hoisting Tackle can be supplied with hook, shackle, swivel eye, or customized connection fittings to meet different field requirements.

Features

High-Strength Insulated Nylon Sheaves

The sheaves are manufactured from wear-resistant insulated nylon material with excellent mechanical strength and smooth rope contact surfaces. The design helps minimize conductor and rope abrasion during lifting operations.

Heavy-Duty Galvanized Steel Frame

The frame is fabricated from high-strength steel and finished with hot-dip galvanized or zinc-plated treatment to improve corrosion resistance for outdoor environments.

Smooth Bearing Rotation

Precision bearings reduce rolling resistance, allowing stable pulley rotation and improving operational efficiency during conductor handling and equipment lifting.

Multiple Connection Options

Different suspension methods are available, including:

• Hook type
• Shackle type
• Eye type
• Swivel eye
• Custom lifting connection

Suitable for Utility Line Construction

Designed for lifting operations involving:

• Insulators
• Crossarm hardware
• Stringing accessories
• Ground wire fittings
• Transmission line tools
• Distribution line equipment

Technical Specifications

Actual dimensions, rated load, sheave diameter, and groove profile can be customized according to project requirements.

Applications

The Insulated Hoisting Tackle is widely used in:

• Overhead transmission line construction
• Power distribution line installation
• Live line maintenance support
• Electrical utility maintenance
• Conductor lifting operations
• Insulator installation
• Hardware installation
• Pole line construction
• Substation equipment installation
• Renewable energy transmission projects

Product Advantages

Improved Electrical Insulation

Insulated nylon sheaves reduce electrical conductivity compared with conventional all-metal pulley blocks, making the product suitable for applications where insulated components are specified.

Reduced Rope Wear

The precision-machined sheave groove provides smooth rope travel, helping reduce friction and extending rope service life.

Corrosion Resistance

Galvanized steel construction offers reliable protection against rust and weather exposure during outdoor construction.

Flexible Configuration

Multiple sheave arrangements and connection types allow the tackle to match various lifting and rigging requirements.

Easy Maintenance

Simple structural design allows convenient inspection, cleaning, bearing replacement, and routine maintenance.

Why Choose Our Insulated Hoisting Tackle?

• Designed for overhead power line construction
• High-strength insulated nylon pulley wheels
• Heavy-duty galvanized steel frame
• Stable pulley rotation with quality bearings
• Multiple lifting configurations available
• OEM & ODM manufacturing support
• Suitable for utility contractors worldwide
