Cable Protective Bend Board | Galvanized Steel Cable Bending Guide for Underground Cable Installation

Product Overview

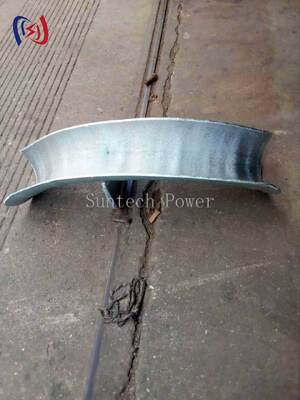

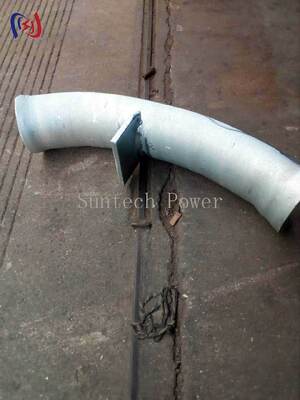

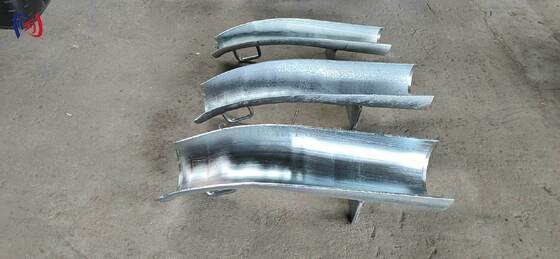

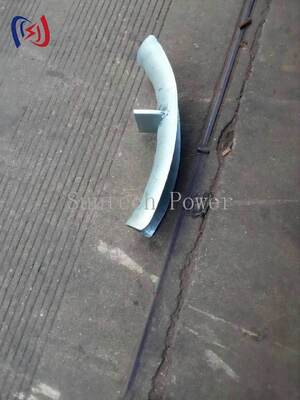

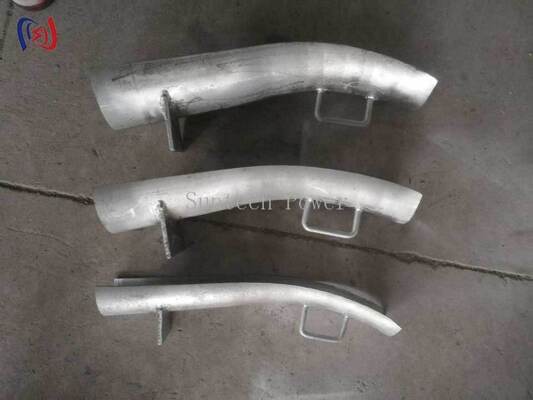

The Cable Protective Bend Board is a cable guiding tool designed to protect power cables during underground installation. It provides a smooth curved guiding surface that allows cables to pass safely over edges, into cable pits, ducts, trenches, or conduit entrances while maintaining an appropriate bending radius.

Manufactured from heavy-duty galvanized steel, the bend board helps reduce cable jacket abrasion, insulation damage, and excessive bending stress during cable pulling operations. It is widely used in power transmission projects, electrical utility construction, substations, renewable energy installations, and industrial cable laying.

The simple structure allows quick placement and easy transportation while providing reliable cable protection throughout the installation process.

Features

• Heavy-duty galvanized steel construction for corrosion resistance
• Smooth curved guide minimizes cable friction
• Protects cable sheath and insulation during pulling
• Helps maintain proper cable bending radius
• Suitable for underground cable laying applications
• Stable base for secure positioning
• Easy installation without complicated assembly
• Low maintenance and long service life
• Compatible with various cable diameters
• Suitable for medium- and high-voltage cable installation

Technical Specifications

Applications

The Cable Protective Bend Board is widely used in:

• Underground power cable installation
• Electrical utility construction
• Cable trench installation
• Cable duct entry protection
• Cable manhole installation
• Substation cable laying
• Renewable energy projects
• Wind farm cable installation
• Solar power station construction
• Industrial electrical projects
• Municipal underground cable networks
• Infrastructure cable installation

Product Advantages

Protects Cable During Installation

The curved guiding surface helps prevent abrasion, crushing, and insulation damage when cables pass over sharp edges.

Maintains Proper Bending Radius

The bend board supports smoother cable routing and helps reduce excessive bending stress that may affect cable performance.

Durable Galvanized Construction

Manufactured with galvanized steel to provide excellent corrosion resistance for outdoor and construction site environments.

Easy to Deploy

The lightweight yet robust design allows fast positioning at cable entrances, trenches, and manholes without additional tools.

Compatible with Multiple Cable Types

Suitable for power cables, communication cables, fiber optic cables, and industrial control cables.

Typical Applications

• Underground cable pulling
• Utility power distribution projects
• HV cable installation
• MV cable installation
• Cable duct construction
• Electrical infrastructure projects
• Transmission line construction
• Cable maintenance operations

Why Choose Our Cable Protective Bend Board?

• Professional manufacturer of cable laying equipment
• Stable galvanized steel fabrication
• OEM & ODM customization available
• Various sizes for different cable diameters
• Strict quality inspection before shipment
• Reliable performance in demanding construction environments
• Export experience for international utility projects
