Grounding Block

Product Overview

The Grounding Block, also known as a Temporary Earthing Block or Grounding Pulley, is an essential safety device used during overhead transmission and distribution line stringing operations. It is designed to provide a reliable temporary grounding path, effectively dissipating induced voltage, static electricity, and accidental electrical charges generated during conductor installation.

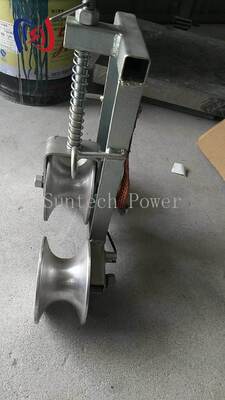

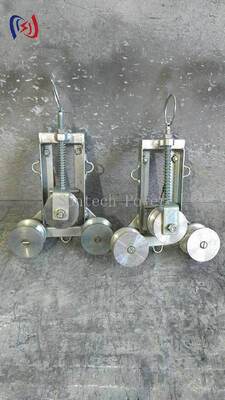

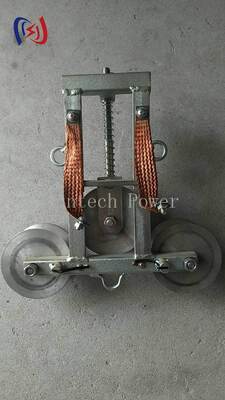

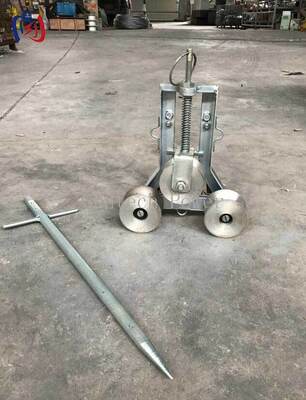

The grounding block consists of a spring-loaded conductive pulley assembly, high-conductivity grounding cable, and ground rod, ensuring continuous electrical contact with the conductor throughout the stringing process. This significantly improves operator safety while protecting conductors and equipment from unwanted electrical discharge.

Manufactured with a heavy-duty galvanized steel frame, precision-machined conductive sheaves, and corrosion-resistant components, the Grounding Block delivers excellent durability, stable conductivity, and long-term field performance under demanding construction environments.

It is widely used by power utilities, EPC contractors, transmission line construction companies, renewable energy projects, railway electrification contractors, and electrical infrastructure installers worldwide.

Product Features

• Designed for temporary grounding during conductor stringing
• Effectively dissipates induced voltage and static electricity
• Spring-loaded conductive wheel ensures stable electrical contact
• Heavy-duty hot-dip galvanized steel construction
• High-conductivity copper grounding cable included
• Ground rod supplied for quick field grounding
• Precision conductive pulley minimizes conductor wear
• Smooth rolling performance reduces pulling resistance
• Suitable for conductor, OPGW, earth wire and pilot rope operations
• Compact design for easy transportation and installation
• Long service life with minimal maintenance
• OEM and customized specifications available

Technical Specifications

Note: Sheave diameter, grounding cable length, grounding resistance requirements, frame dimensions, and connector types can be customized according to project specifications.

Applications

The Grounding Block is widely used in electrical transmission and distribution projects, including:

• High-voltage transmission line construction
• Overhead conductor stringing
• Distribution line installation
• Temporary conductor grounding
• OPGW installation
• Earth wire installation
• Live-line maintenance support
• Utility power construction
• Renewable energy transmission projects
• Substation construction
• Railway electrification projects
• EPC power engineering projects

Product Advantages

Reliable Temporary Grounding Protection

Provides a continuous grounding path during conductor stringing to safely discharge induced voltage and static electricity.

Improved Worker Safety

Reduces electrical hazards for field personnel by maintaining effective temporary earthing throughout installation.

Stable Conductive Contact

Spring-loaded conductive wheels maintain reliable contact with the conductor during movement.

Heavy-Duty Construction

Manufactured from hot-dip galvanized steel for superior corrosion resistance and extended service life.

Smooth Rolling Performance

Precision bearings reduce pulling resistance while minimizing conductor surface damage.

Excellent Electrical Conductivity

High-quality copper grounding cable provides low-resistance grounding performance.

Easy Installation

Simple structure allows fast installation and removal on construction sites.

OEM & Customized Solutions

Customized grounding cable length, pulley size, frame dimensions, connection methods, and branding are available.

Why Choose Our Grounding Block?

• Professional manufacturer of transmission line stringing equipment
• Strict quality inspection before shipment
• Stable quality for bulk procurement
• Competitive factory pricing
• Fast global delivery
• Complete OEM & ODM support
• Technical selection assistance
• Exported to utilities and contractors worldwide

Typical Industries

• Power Utility Companies
• Transmission Line Contractors
• Distribution Network Construction
• EPC Contractors
• Renewable Energy Projects
• Railway Electrification
• Electrical Infrastructure Construction
• Power Grid Maintenance Companies
