Ending Block for Transmission Line Stringing | Single Sheave Cable Guide Pulley

Product Introduction

The Ending Block is a professional stringing tool designed for overhead transmission line construction, conductor installation, and cable pulling applications. It is mainly used at the terminal position of stringing operations to guide conductors, pulling ropes, or cables smoothly and safely.

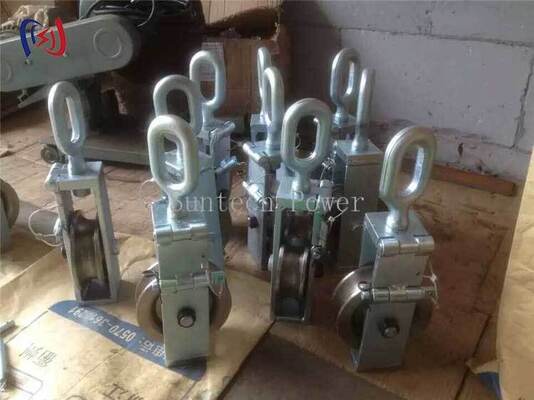

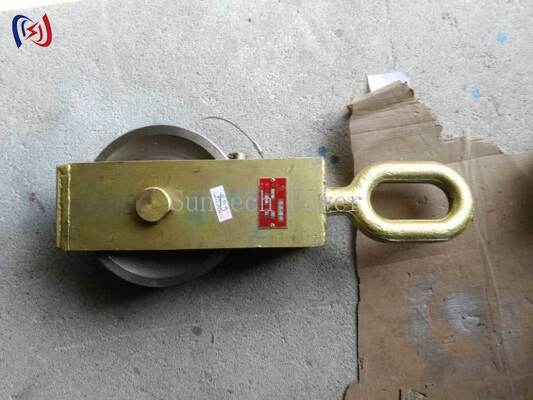

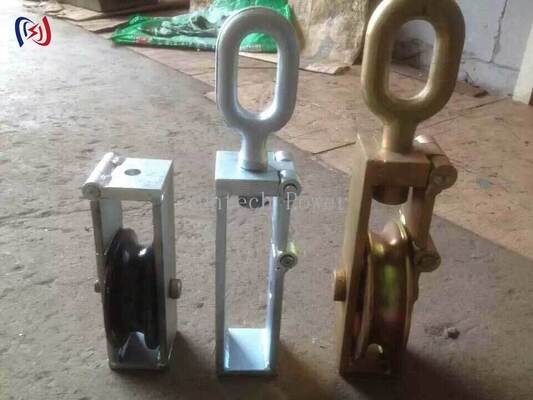

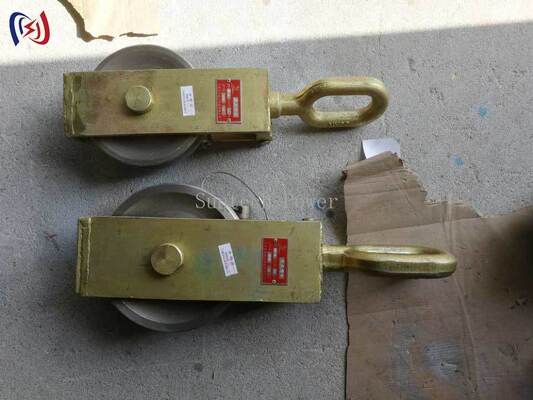

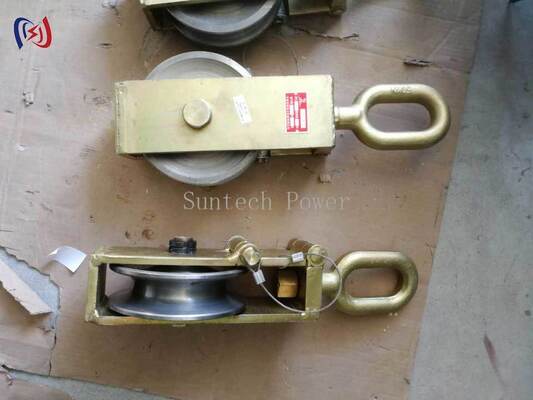

Featuring a compact single sheave structure, high-strength frame, and smooth rotating pulley, this transmission line ending block helps reduce pulling resistance, minimize cable wear, and improve installation efficiency during power line construction.

The pulley can be manufactured with different sheave materials such as aluminum alloy, nylon, or customized materials according to conductor requirements. The galvanized steel frame provides excellent mechanical strength and corrosion resistance for outdoor working environments.

This stringing ending block is widely used by power contractors, utility companies, and transmission line construction teams for reliable conductor stringing and cable installation.

Product Features

1. Smooth Cable Guidance

The precision-machined sheave provides smooth rotation during conductor pulling, helping reduce friction between the cable and the pulley surface.

2. Durable Structure for Outdoor Operation

The galvanized steel frame offers good protection against corrosion and mechanical stress, making it suitable for long-term outdoor use.

3. Cable Protection Design

The curved groove design supports stable cable movement and helps prevent conductor surface damage during stringing operations.

4. Easy Installation and Operation

The compact structure allows quick installation on stringing points, improving construction efficiency and reducing setup time.

5. Customizable Configuration

Different sheave diameters, groove sizes, and materials can be customized according to conductor specifications and project requirements.

Product Specification

Note: Specific dimensions, conductor capacity, and load ratings can be customized according to project requirements.

Applications

1. Overhead Transmission Line Construction

Used for guiding conductors during high voltage transmission line stringing projects.

2. Power Grid Installation

Suitable for utility companies involved in power network expansion and maintenance.

3. Cable Pulling Projects

Provides smooth guidance for cables and pulling ropes during installation operations.

4. OPGW and Ground Wire Installation

Can be applied for optical ground wire and grounding conductor installation projects.

5. Electrical Engineering Projects

Widely used in EPC projects, electrical contractors, and infrastructure construction.

Product Advantages

High Mechanical Strength

The robust frame structure provides reliable support during conductor pulling operations.

Reduced Cable Friction

The rotating sheave reduces direct contact friction and improves pulling efficiency.

Protection Against Cable Damage

The smooth groove design helps protect conductor surfaces from scratches and deformation.

Long Service Life

Galvanized components and durable pulley materials provide excellent outdoor performance.

Improved Construction Efficiency

Designed to simplify stringing operations and reduce installation difficulties.

Why Choose Our Ending Block?

• Professional equipment for transmission line stringing applications
• Suitable for different conductor and cable installation projects
• Strong and durable galvanized steel construction
• Smooth rotating sheave for efficient cable guidance
• OEM customization available for different requirements
