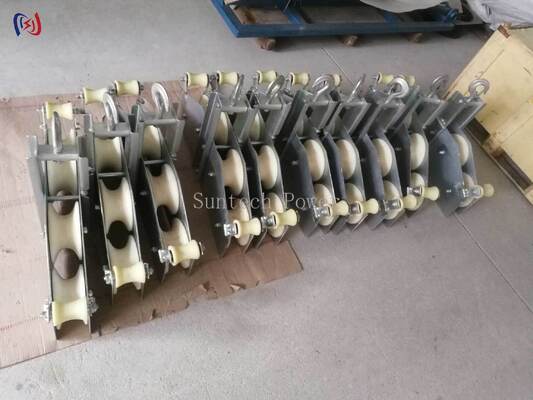

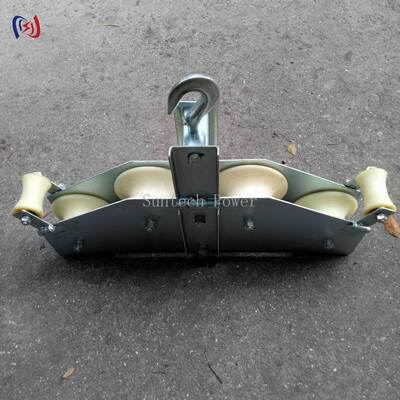

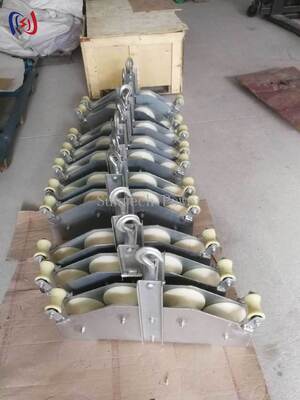

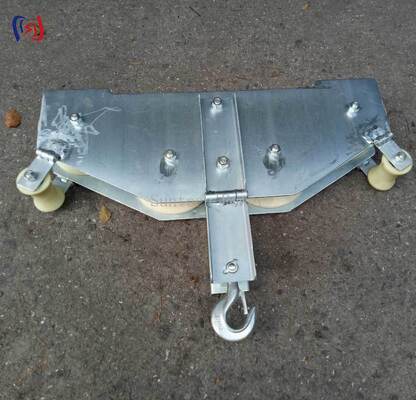

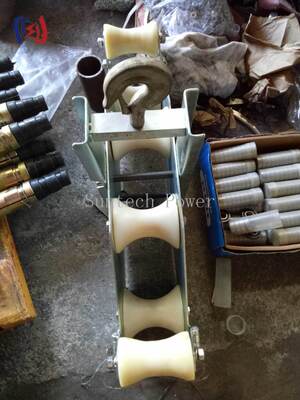

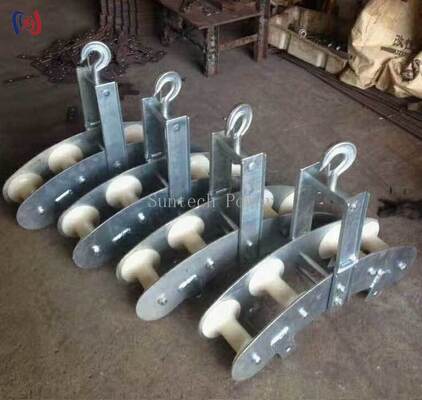

Four Sheaves Combined Block for Power Line Stringing

The Four Sheaves Combined Block is a professional cable stringing tool designed for overhead transmission line construction, conductor installation, and cable pulling operations. It consists of four sheaves mounted on a combined frame structure, allowing smooth conductor guidance during stringing processes.

The multi-sheave design helps distribute pulling force evenly, reduce cable friction, and protect conductors from unnecessary bending or surface damage. The roller frame is manufactured with a durable metal structure, while the sheaves are designed for stable rotation under continuous pulling conditions.

This combined block is widely used in power transmission projects, electrical infrastructure construction, and overhead line maintenance where reliable cable guidance and efficient installation are required.

Product Features

1. Four Sheaves Combined Structure

The four-wheel configuration provides multiple supporting points for conductor movement, improving cable guidance stability during pulling and installation.

2. Smooth Cable Running Performance

High-quality sheaves reduce friction between the conductor and roller surface, helping minimize pulling resistance and improve installation efficiency.

3. Heavy Duty Frame Design

The reinforced metal frame provides mechanical strength for demanding outdoor stringing environments.

4. Suitable for Overhead Line Construction

Designed for use with stringing equipment, pulling machines, and conductor installation tools in transmission line projects.

Technical Specifications

Applications

1. Power Transmission Line Construction

Used for conductor installation during high-voltage transmission line projects.

2. Overhead Cable Stringing

Provides smooth guidance for cables and conductors during pulling operations.

3. Electrical Infrastructure Projects

Suitable for substations, distribution networks, and electrical engineering construction.

4. Cable Installation and Maintenance

Helps protect cables during replacement, upgrading, and maintenance work.

Product Advantages

Reduced Cable Friction

The multi-sheave design allows cables to move smoothly, reducing unnecessary friction during pulling.

Improved Installation Efficiency

Supports continuous conductor movement and helps improve the efficiency of stringing operations.

Cable Surface Protection

The rounded roller surface helps prevent conductor damage caused by direct contact with steel structures.

Strong Outdoor Durability

The robust frame structure is suitable for outdoor construction environments.

Flexible Application

Can be integrated with different stringing equipment according to project requirements.

Why Choose Four Sheaves Combined Block?

During overhead line installation, cable protection and pulling efficiency are important factors affecting construction quality. The Four Sheaves Combined Block provides stable cable support and controlled movement, helping contractors complete conductor stringing operations safely and efficiently.

It is commonly selected by power construction companies, electrical contractors, and transmission line engineering teams.
