Mesh Sock Connector for ACSR70-1250 Conductors with 15-120KN Rated Load, Zinc-Nickel Anti-Corrosion Finish, and Self-Tightening Interlocked Weave

Mesh Sock Connectors for ACSR70-1250 Conductors Rated 15-120KN

Product Overview

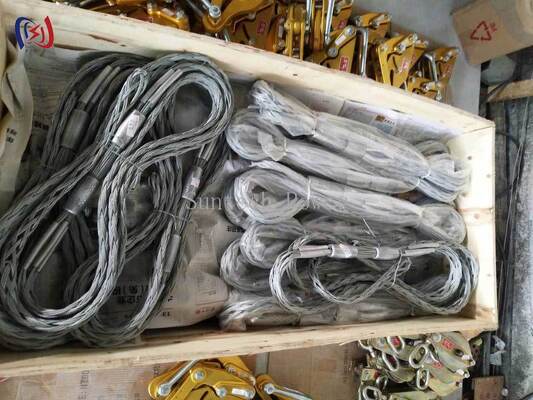

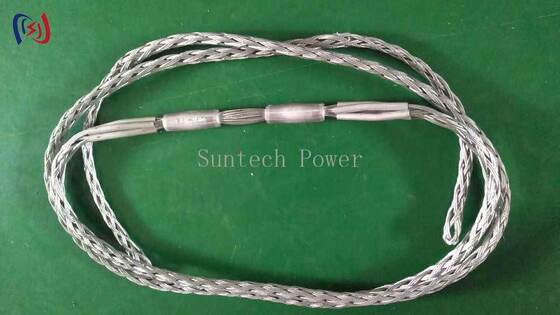

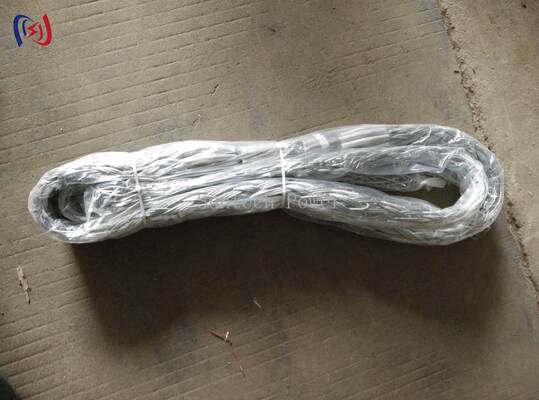

For crews who must grip a bare conductor quickly and firmly, the SLW(S) sock joint is the practical answer. Its stainless steel weave tightens evenly around ACSR conductors from 70 to 1250 sqmm, holding working loads of 15-120KN while breaking strength reaches 30-250KN. The interlocking mesh spreads clamping pressure around the whole circumference, and a zinc-nickel coating keeps the weave rust-free in humid air. Typical duties include line terminations, substation cable hook-ups and underground splices, plus rapid emergency repairs.

Technical Specifications

Applications

· Terminating overhead conductors at line ends

· Connecting cables inside substations

· Splicing underground cable runs

· Quick temporary fixing during repairs

Product Advantages

· Self-Tightening Interlocked Weave — the mesh grips the conductor from all sides with even pressure, delivering 40 percent stronger holding force than standard joints.

· High-Strength Stainless Weave — stress points are reinforced so the sock carries 15-120KN rated loads and breaking loads up to 250KN.

· Zinc-Nickel Anti-Corrosion Finish — the coating shrugs off humidity and salt air for dependable outdoor service.

· Color-Coded, Tool-Free Fitting — size is identified by color coding and the sock slips on by hand; an optional non-conductive version with an inspection window is available.
