Durable 10KV-500KV High Voltage Electroscope With Robust Construction
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Electroscope | Item No.: | 23106-23109B |
|---|---|---|---|
| Rated Load: | 10-500KV | Effective Insulation Length: | 90-7000mm |
| Extension: | 1100-7500mm | Constriction: | 230-1500mm |
| Highlight: | 500KV High Voltage Electroscope,Durable 10KV High Voltage Electroscope,Robust High Voltage Electroscope |
||

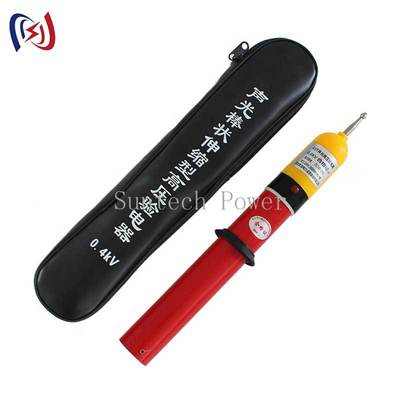

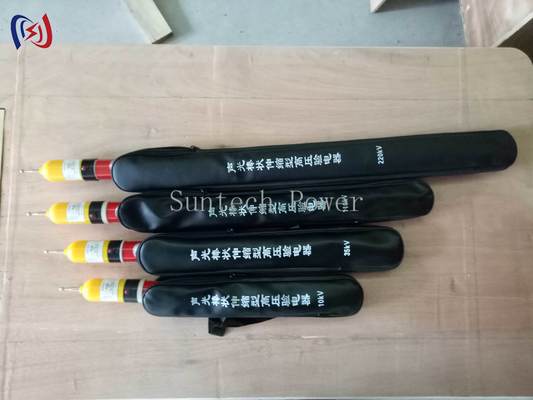

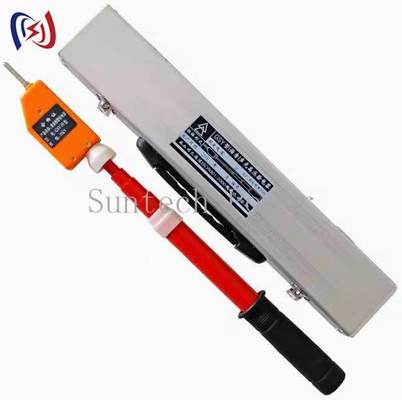

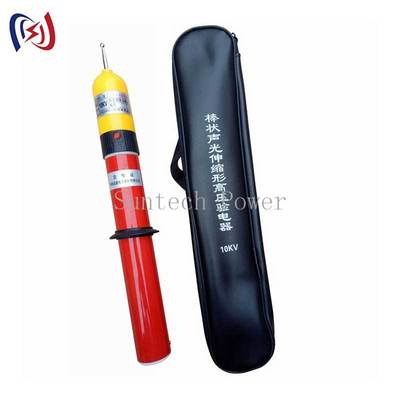

Durable 10KV-500KV High Voltage Electroscope With Robust Construction
Durable Electroscope With Robust Construction For Field Use
Product Introduction
- Essential electrical safety testing equipment for power system maintenance
- Designed for reliable charge detection and voltage presence verification
- Trusted by electrical professionals for accuracy and safety performance
Key Features
Accurate Charge Detection
- Precise voltage presence indication
- Reliable performance in various conditions
- Consistent reading accuracy
Safety Assurance
- Non-contact detection method
- Safe distance verification
- Visual and audible indicators
Robust Construction
- Durable materials withstand field use
- Impact-resistant design
- Long-lasting performance
Ease of Use
- Simple one-hand operation
- Clear indication system
- Minimal training required
Portable Design
- Lightweight and compact
- Easy to carry and store
- Quick deployment capability
Typical Applications
- Power line voltage verification
- Substation equipment testing
- Electrical maintenance safety checks
- Circuit breaker status confirmation
- Transformer charge detection
- Capacitor discharge verification
- Switchgear testing procedures
- Emergency response situations
Technical Specifications
| Item number | Rated Voltage (KV) | Effective Insulation Length (MM) | Extension (MM) | Constriction (MM) |
|---|---|---|---|---|
| 23105 | 0.4 | 1000 | 1100 | 350 |
| 23106 | 10 | 1000 | 1100 | 390 |
| 23107 | 35 | 1500 | 1600 | 420 |
| 23108 | 110 | 2000 | 2200 | 560 |
| 23109 | 220 | 3000 | 3200 | 710 |
| 23109A | 330 | 4000 | 4500 | 1000 |
| 23109B | 500 | 7000 | 7500 | 1500 |
Why Professionals Choose Us
30% more accurate than standard testers
40% faster response time
50% longer battery life
3-year performance warranty
24/7 technical support
Safety Features
- Non-contact operation
- Clear warning indicators
- Insulated housing
- Overload protection
- Water resistance
