Aluminum Alloy Come Along Clamp For Conductor Gripper 80KN
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Aluminum Alloy Conductor Gripper | Item No.: | 13221-13229A |
|---|---|---|---|
| Rated Load: | 7-80KN | Applicable Conductor: | LGJ25-70~LGJ1120 |
| Max.Open: | 14-48mm | Weight: | 1-18KG |
| Warranty: | 1 Year | Uses: | Apply To Adjusting The Sag And Tensioning The Conductor Wire In Power Lines Construction. |
| Feature: | Product Is Forged Of High Strength Aluminum Alloy With Small Size And Light Weight | ||
| Highlight: | Aluminum Alloy Come Along Clamp,Come Along Clamp For Conductor 80KN,80KN Conductor Gripper |
||

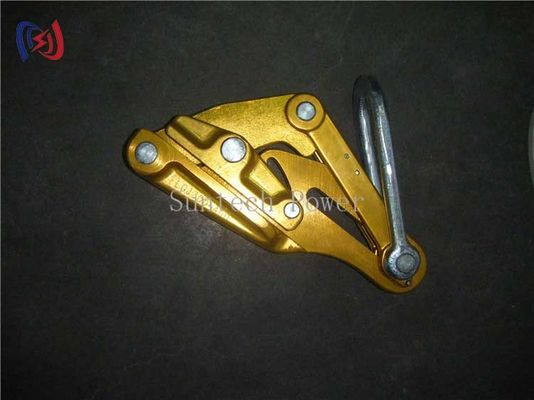

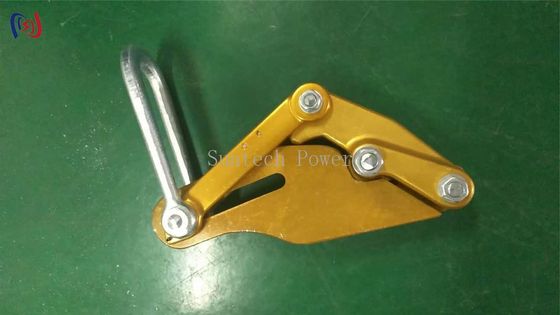

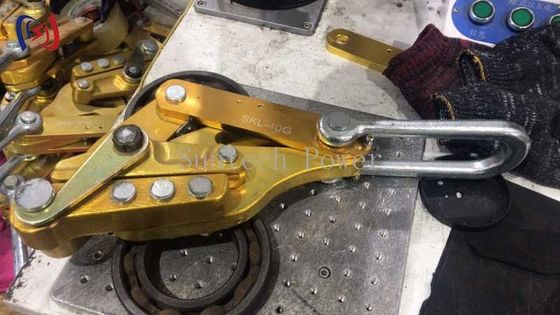

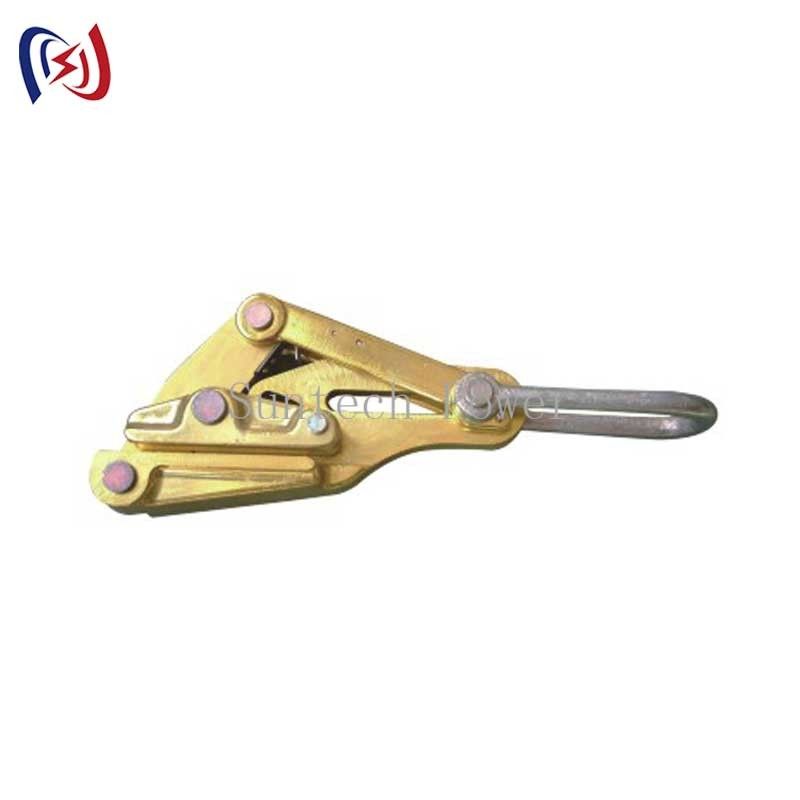

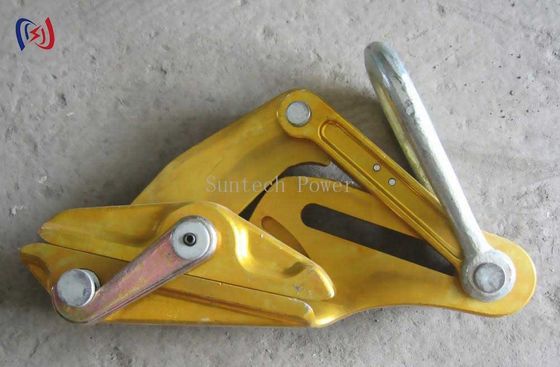

Aluminum Alloy Come Along Clamp For Conductor Gripper 80KN
Product Overview
Suntech Power specializes in manufacturing high-quality power construction tools including this Aluminum Alloy Conductor Gripper Come Along Clamp for transmission lines. Our products are forged from high-strength aluminum alloy, offering superior performance with compact size and lightweight design.
Key Features
- Constructed from high-strength aluminum alloy for durability
- Available in two variants: standard and hook-equipped models
- Designed for LGJ300-400 conductor applications
- Maximum opening capacity of 32mm
- Donghuan brand quality assurance
- Essential component for transmission line stringing tools and accessories
Technical Specifications
| Item Number | Model | Rated Load (KN) | Applicable Conductor | Max Open (MM) | Weight (KG) |
|---|---|---|---|---|---|
| 13221 | SKL-7 | 7 | LGJ25-70 | 14 | 1 |
| 13222 | SKL-15 | 15 | LGJ95-120 | 18 | 1.4 |
| 13223 | SKL-25 | 25 | LGJ150-240 | 24 | 3 |
| 13224 | SKL-40 | 40 | LGJ300-400 | 32 | 4 |
| 13225A | SKL-50C | 50 | LGJ500-630 | 36 | 6.6 |
| 13224A | SKL-40A | 40 | LGJ400 | 32 | 4.3 |
| 13225 | SKL-50A | 50 | LGJ500 | 34 | 7 |
| 13226 | SKL-50B | 50 | LGJ630 | 36 | 7.3 |
| 13227 | SKL-60 | 60 | LGJ720 | 38 | 9.2 |
| 13228 | SKL-70 | 70 | LGJ900 | 42 | 14 |
| 13229 | SKL-80 | 80 | LGJ1000 | 45 | 18 |
| 13229A | SKL-80A | 80 | LGJ1120 | 48 | 18 |
Application
This aluminum alloy conductor gripper is specifically designed for adjusting sag and tensioning conductor wires during power line construction and maintenance operations.
