Multi Segment Wire Rope Gripper 90KN-150KN Conductor Wire Gripper
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Multi-segment Type Conductor Wire Grip | Item No.: | 13230L1-13231L |
|---|---|---|---|
| Rated Load: | 90-150KN | Applicable Conductor Diameter: | 25-50mm |
| Tightening Torque: | 150N.m | Number Of Slices: | 9/11/13/15 |
| Weight: | 17-26KG | Warranty: | 1 Year |
| Uses: | Apply To Large Cross-section Conductor Under High Tension And Long Span Construction Situation. | Explain: | Wire Diameter Is Need Indicated When Customer Place Order. |
| Highlight: | Multi Segment Wire Rope Gripper,Wire Rope Gripper 90KN,150KN Conductor Wire Gripper |
||

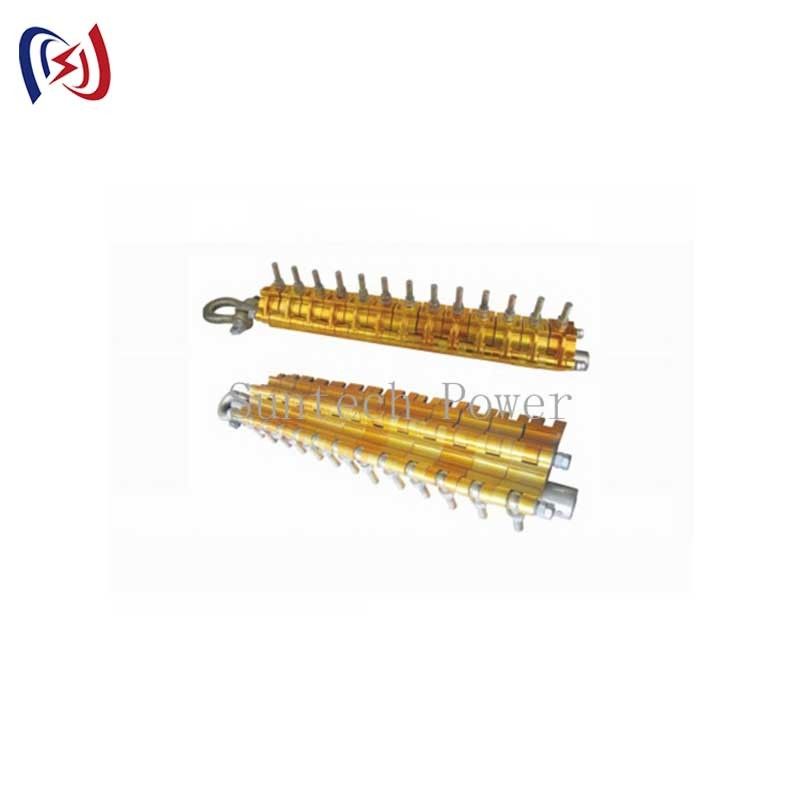

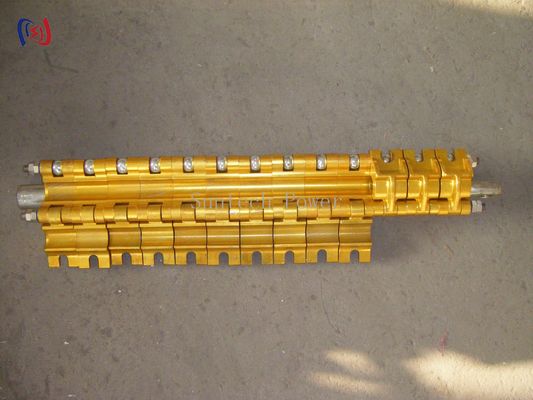

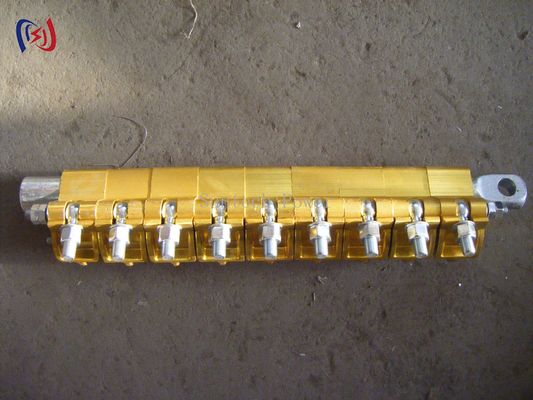

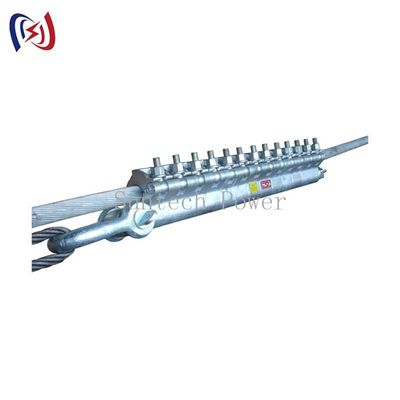

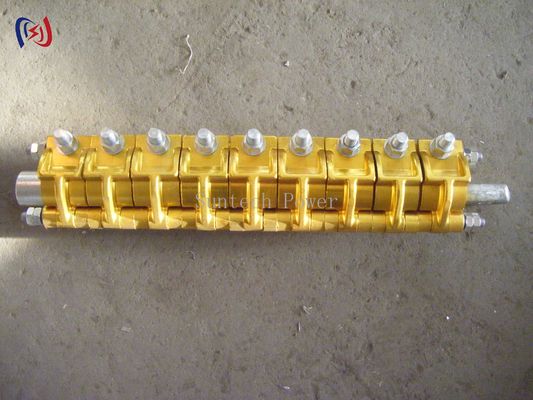

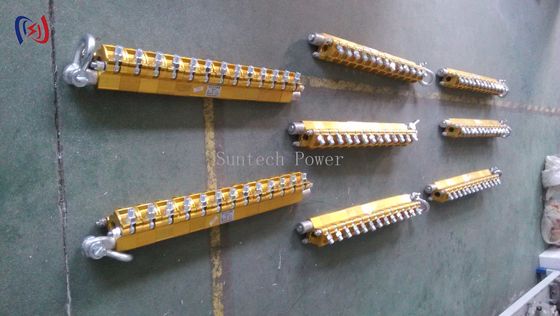

Multi Segment Wire Rope Gripper 90KN-150KN Conductor Wire Gripper
Multi Segment Type Conductor Wire Gripper Come Along Clamp Stringing Tools
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools in China. We manufacture various cable pulling tools, hydraulic tensioners, and pullers for transmission work. All products are OEM-compatible and professionally produced per ISO 9001:2008 standards, sold to over 50 countries worldwide with excellent brand reputation.
Configuration
Designed for large cross-section conductors under high tension and long span construction situations. Wire diameter must be specified when ordering.
Quick Information
- Model: SK50DP2
- Rated load: 150KN
- Applicable conductor diameter: 50mm max
- Tightening torque: 150 N.m
- Weight: 26kg
- Brand: Suntech (come along clamp)
Product Specifications
| Item Number | Model | Rated Load (KN) | Applicable Conductor Diameter (MM) | Tightening Torque (N.m) | Weight (KG) |
|---|---|---|---|---|---|
| 13230L | SK35DP2 | 120 | Φ35(MAX) | 150 | 20 |
| 13231L | SK50DP2 | 150 | Φ50(MAX) | 150 | 26 |
