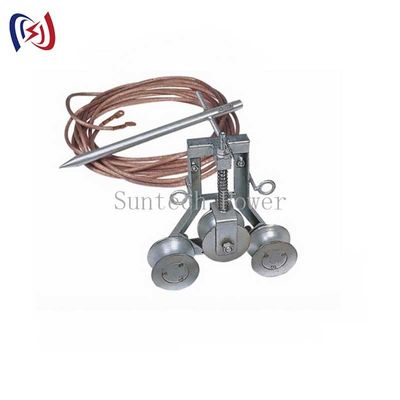

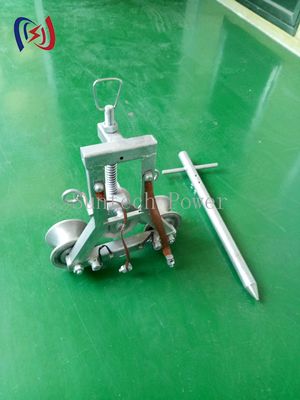

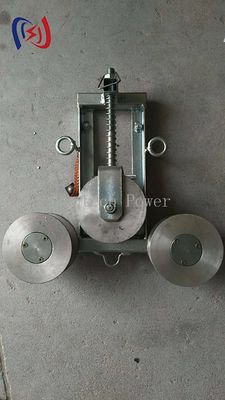

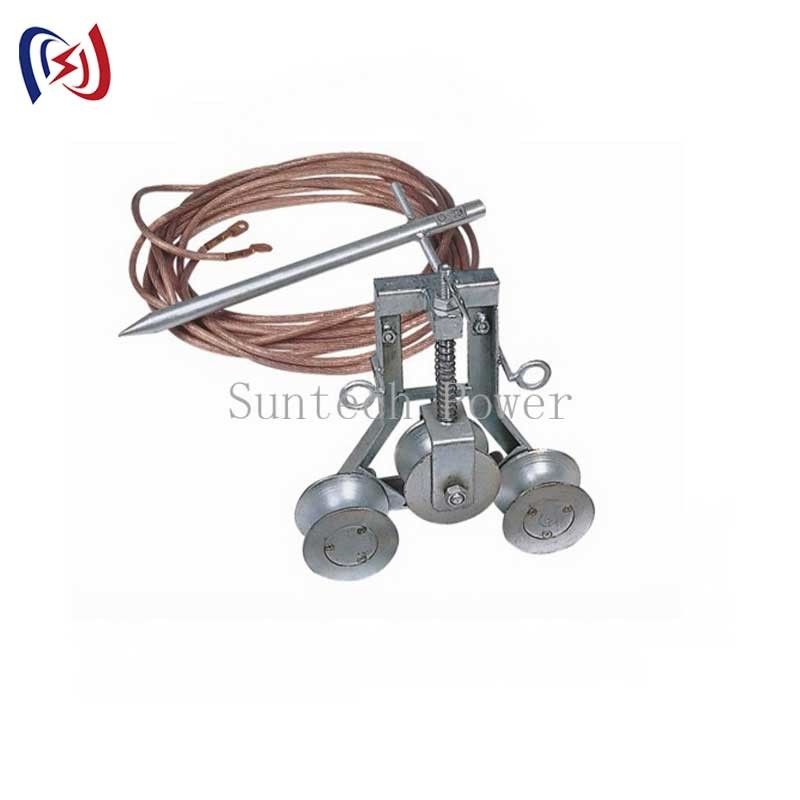

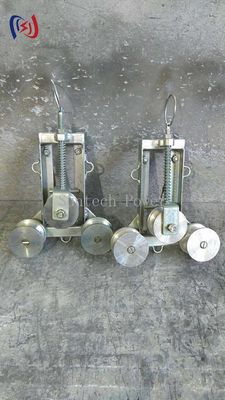

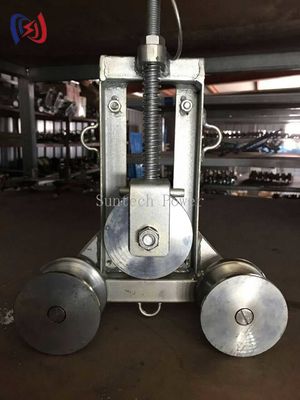

Aluminum Sheave Ground Block 100A Conductor Stringing Blocks
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Ground Block | Item No.: | 12101/ 12102 |
|---|---|---|---|
| Bottom Diameter: | 50mm | Applicable Wire: | Conductor 40/ Grounding Wire 40 |
| Max Current: | 100A | Sheave Material: | Casting Aluminum/ Casting Steel |
| Weight: | 8.9/ 10KG | Warranty: | 1 Year |
| Highlight: | Aluminum Sheave Ground Block,Ground Block 100A,100A Conductor Stringing Blocks |
||
Aluminum Sheave Ground Block 100A Conductor Stringing Blocks
Aluminum Sheave Grounding Wire Cable Pulley Block Conductor Stringing Blocks
Suntech Power is a professional manufacturer of transmission line stringing tools and equipment in Ningbo, China. Our product line includes conductor stringing blocks, cable rollers, hoisting tackles, pulley blocks, conductor grippers, cable reel stands, gin poles, inspection trolleys, hydraulic puller tensioners, conductor compressors, cable pulling winches, and anti-twisting wire steel ropes.
Key Features
- Removes induced electricity from conductors or earth wires during stringing operations
- Can be mounted on the outlet side of tensioner or inlet side of puller
- Pulled by two stay wires for secure operation
- Triple sheave mechanism automatically compacted by torsion spring
- Maximum allowable current: 100A
- Transit time: 0.1 second
- Recommended sectional area of supporting earth wire: 25mm²
Technical Specifications
| Item Number | Model | Bottom Diameter (mm) | Applicable Wire | Max Current (A) | Sheave Material | Weight (kg) |
|---|---|---|---|---|---|---|
| 12101 | SJL38-100 | Φ46 | Φ38 Conductor | 100 | Casting steel | 8.9 |
| 12101A | SJL48-100 | Φ56 | Φ48 Conductor | 100 | Casting steel | 10.0 |
| 12102 | SJT38-100 | Φ46 | Φ38 Steel wire rope/Grounding Wire | 100 | Casting steel | 11.0 |
