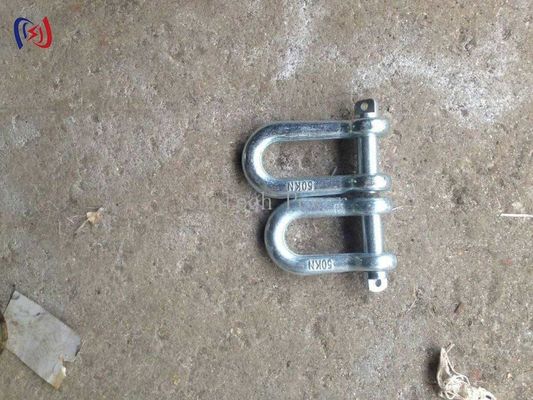

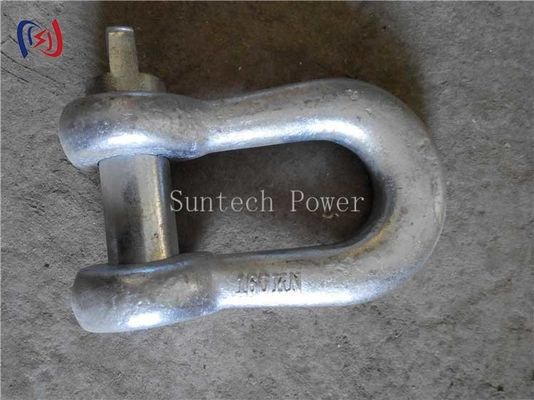

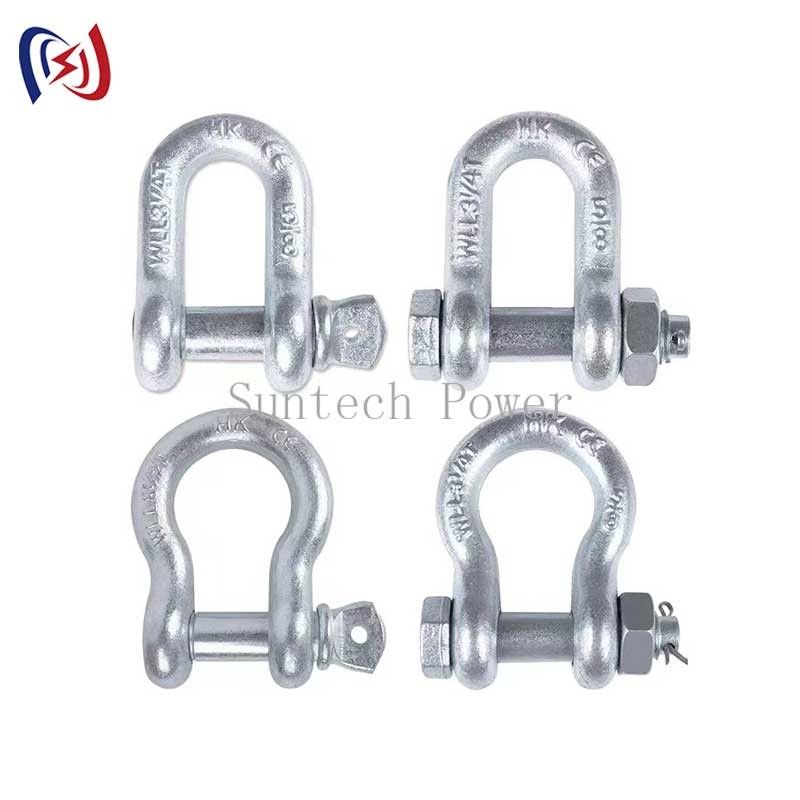

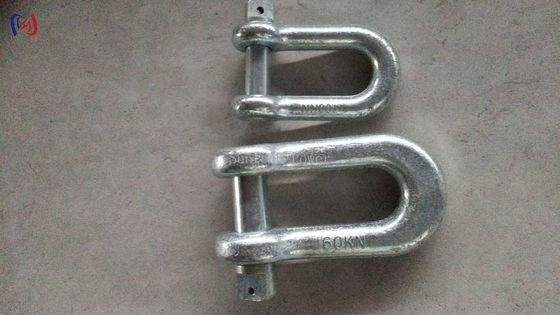

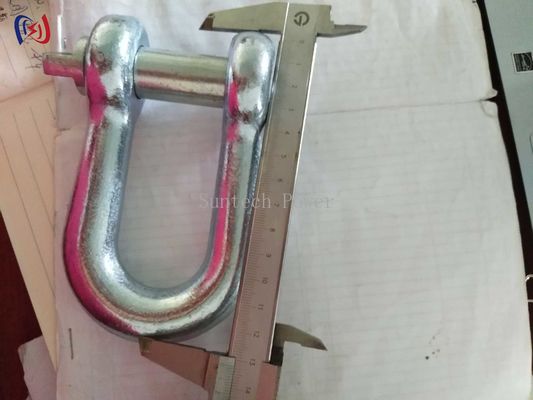

Steel Pilot Wire High Strength Galvanized Shackle For Construction Works

Large Image : Steel Pilot Wire High Strength Galvanized Shackle For Construction Works Get Best Price

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Suntech
Certification:	ISO9001
Model Number:	GXK-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7-15days
Payment Terms:	L/C,T/T
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Name:	High Strength Shackle	Item No.:	17131-17139
Rated Load:	10-300KN	Weight:	0.15-7.5KG
Warranty:	1 Year	Uses:	Connecting Steel Rope With Loading Operation.
Highlight:	Steel Pilot Wire , Pilot Wire High Strength , Construction Works Galvanized Shackle

Steel Pilot Wire High Strength Galvanized Shackle For Construction Works

Steel Pilot Wire High Strength Galvanized Shackle For Construction Works In Transmission Line

About Suntech Power Tools

Located in southeast China, the earliest origin of Power Tools Leading City in China, we specialize in manufacturing cable pulling tools and hydraulic tension pullers for transmission work. Our products are ISO 9001:2008 certified and exported to over 50 countries worldwide.

We offer OEM services and customization options for items like stringing blocks, cable rollers, cable jack stands, and construction safety tools with no minimum order quantity requirements.

Product Specifications

Rated load: 10~300kN
Weight: 0.15~7.5kgs
Material: High strength Steel

Technical Specifications

Item number	Model	Rated Load (KN)	Main Size (mm)	Weight (kg)
17131	GXK-1	10	55 \| 42 \| 12 \| 20	0.15
17132	GXK-2	20	67 \| 58 \| 16 \| 22	0.29
17133	GXK-3	30	97 \| 82 \| 20 \| 34	0.80
17133A	GXK-3A	30	97 \| 112 \| 20 \| 34	0.80
17134	GXK-5	50	107 \| 89 \| 22 \| 39	1.12
17134A	GXK-5A	50	107 \| 131 \| 22 \| 39	1.29
17135	GXK-8	80	125 \| 96 \| 30 \| 42	2.40
17136	GXK-10	100	141 \| 114 \| 34 \| 48	3.56
17137	GXK-16	160	152 \| 139 \| 37 \| 54	4.80
17138	GXK-20	200	164 \| 140 \| 39 \| 60	5.17
17139	GXK-30	300	186 \| 146 \| 50 \| 68	7.5
