12 - 150mm Pilot Wire Cable Mesh Sock Joints Overhead Transmission Line Tools
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Cable Mesh Sock Joints | Item No.: | 21361-21370 |
|---|---|---|---|
| Applicable Cable Diameter: | 12-150mm | Rated Load: | 10-30KN |
| Weight: | 0.8-2.6KG | Warranty: | 1 Year |
| Uses: | Apply To Installing Electrcity Cable Communication Cable And Normal Cable. | ||
| Highlight: | 12mm Pilot Wire,150mm Pilot Wire,Overhead Transmission Line Tools |
||

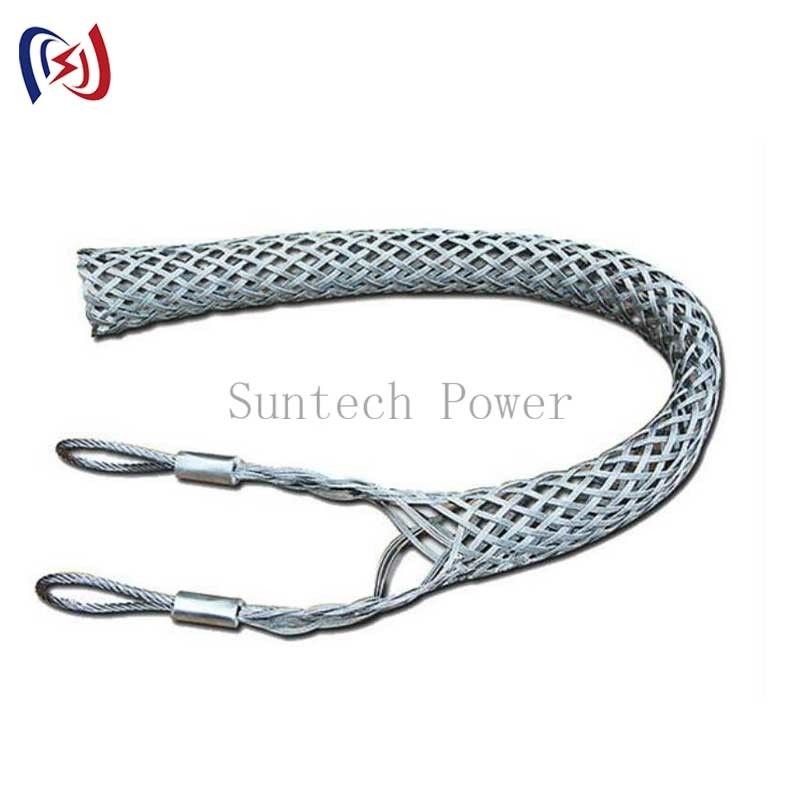

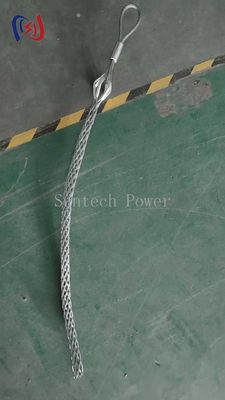

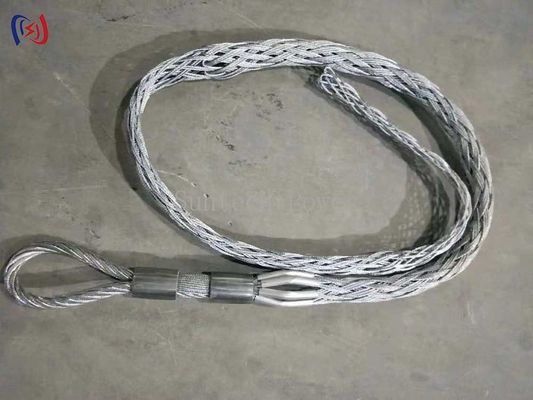

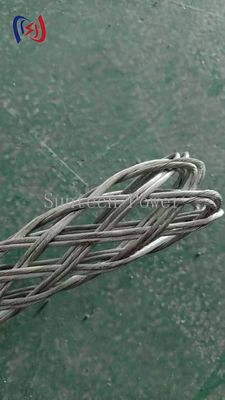

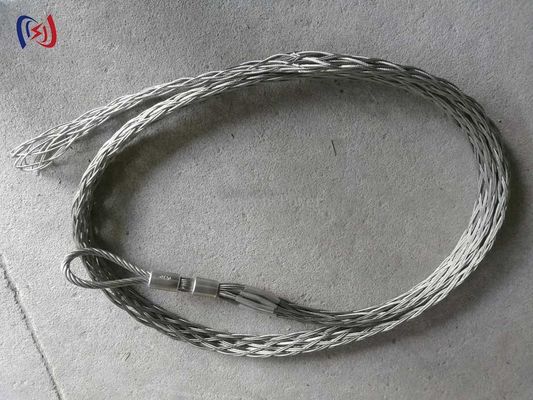

12 - 150mm Pilot Wire Cable Mesh Sock Joints Overhead Transmission Line Tools
Cable Mesh Sock Joints Professional Overhead Transmission Line Tools for Safe and Easy Cable Installation
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tension and puller equipment to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation. We offer OEM services and customization for items like stringing blocks, cable rollers, cable jack stands, etc. with no minimum order quantity requirements for Construction Safety Tools.
Suntech Power Tools, located in southeast China, is the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools, hydraulic tension and puller equipment to support transmission work. All products are produced per ISO 9001:2008 standards and sold to over 50 countries worldwide, earning excellent brand reputation. We offer OEM services and customization for items like stringing blocks, cable rollers, cable jack stands, etc. with no minimum order quantity requirements for Construction Safety Tools.
Key Features
- Lightweight design with large tensile load capacity
- Non-damaging to cables, easy to use and stretch
- Soft construction allows for flexible application
- Ideal tool for electric power construction projects
- Suitable for installing electricity cables, communication cables, and standard cables
Usage Method
Press the opening of the net sleeve with your palm to open it, then insert the cable inward. The deeper the cable is inserted, the greater the pulling force. The grid-style mesh body tightens during construction. After completion, simply apply force in the opposite direction to remove the net sleeve. The sleeve can be pulled by hand or lifting tool to achieve wiring and cable protection functions.
Technical Specifications
| Item Number | Model | Applicable Cable Diameter (mm) | Rated Load (KN) | Weight (kg) |
|---|---|---|---|---|
| 21361 | SWL-16 | Φ12-16 | 10 | 0.8 |
| 21362 | SWL-20 | Φ16-20 | 10 | 0.8 |
| 21363 | SWL-25 | Φ20-25 | 15 | 1.0 |
| 21364 | SWL-37 | Φ25-37 | 15 | 1.0 |
| 21365 | SWL-50 | Φ37-50 | 15 | 1.0 |
| 21366 | SWL-60 | Φ50-60 | 25 | 2.4 |
| 21367 | SWL-80 | Φ60-80 | 25 | 2.4 |
| 21368 | SWL-100 | Φ80-100 | 25 | 2.4 |
| 21369 | SWL-120 | Φ100-120 | 30 | 2.6 |
| 21370 | SWL-150 | Φ120-150 | 30 | 2.6 |
