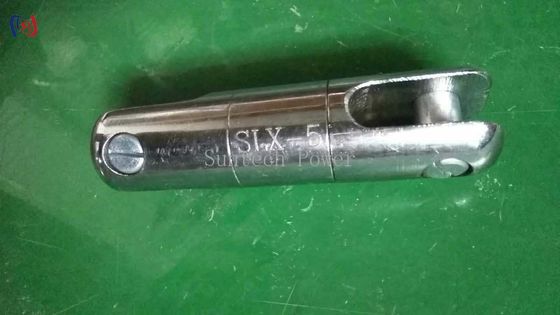

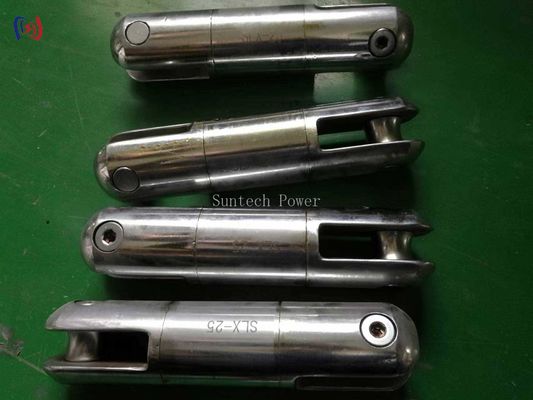

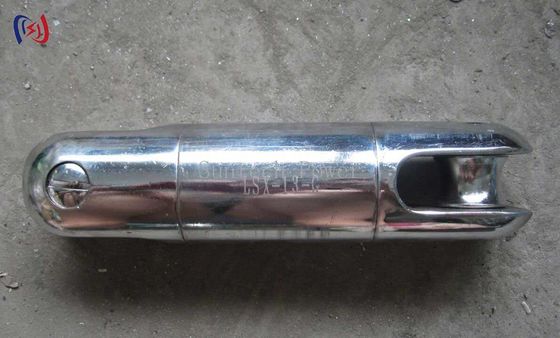

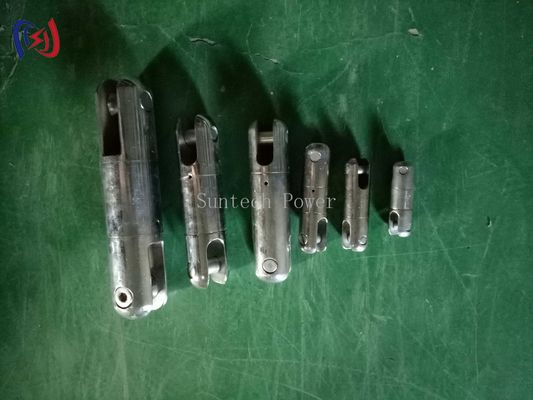

5KN - 250KN Swivel Joint Pilot Wire Conductor Stringing Tools Transmission Line
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Swivel Joint | Item No.: | 17121-17130 |
|---|---|---|---|
| Rated Load: | 5-250KN | Weight: | 0.2-8KG |
| Warranty: | 1 Year | ||
| Highlight: | 5KN Swivel Joint Pilot Wire,250KN Pilot Wire,250KN Conductor Stringing Tools |
||
5KN - 250KN Swivel Joint Pilot Wire Conductor Stringing Tools Transmission Line
Product Description
Swivel Joint Conductor Stringing Tools Transmission Line Stringing Tools
About Suntech Power Tools: Located in southeast China, the earliest origin of Power Tools Leading City in China. We manufacture various cable pulling tools and hydraulic tension pullers for transmission work. All products are OEM compatible and professionally produced per ISO 9001:2008, sold to over 50 countries worldwide with excellent brand reputation. Customization available for items like stringing blocks, cable rollers, cable jack stands, etc. No MOQ required for Construction Safety Tools.
Key Features
- High strength, lightweight design with excellent appearance
- Smooth operation when passing through corners, pulleys, tension machines, and traction equipment
- Fixed Joint Anti-twist Connector is suitable for traction of connecting anti-twisting wire rope
- Used in transmission lines for traction of wire or underground cables
- Connects with net sleeve and wire rope to release wire rope twisting
Technical Specifications

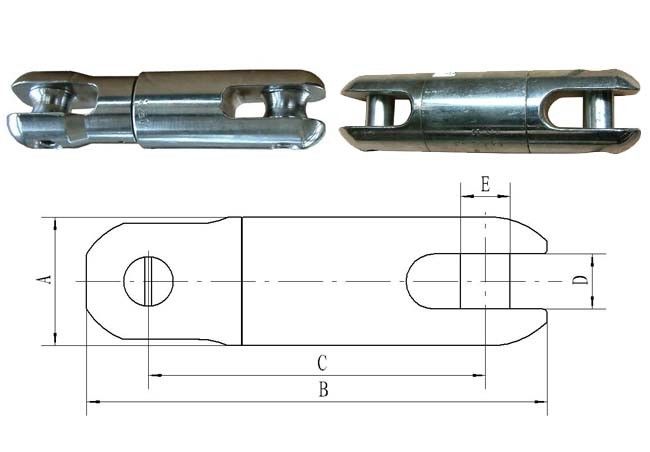

| Item Number | Model | Rated Load (KN) | Main Size (mm) | Weight (Kg) | A | B | C | D | E |
|---|---|---|---|---|---|---|---|---|---|
| 17121 | SLX-0.5 | 5 | 19 | 0.20 | 61 | 40 | 8 | 9 | |
| 17122 | SLX-1 | 10 | 30 | 0.40 | 100 | 70 | 12 | 13 | |
| 17123 | SLX-2 | 20 | 35 | 0.55 | 120 | 90 | 14 | 14 | |
| 17124 | SLX-3 | 30 | 37 | 0.65 | 129 | 95 | 16 | 16 | |
| 17125 | SLX-5 | 50 | 42 | 1.50 | 154 | 116 | 18 | 17 | |
| 17126 | SLX-8 | 80 | 57 | 2.40 | 220 | 165 | 24 | 22 | |
| 17127 | SL130 | 130 | 62 | 3.50 | 248 | 192 | 26 | 24 | |
| 17128 | SL180 | 180 | 75 | 7.20 | 294 | 222 | 26 | 26 | |
| 17129 | SL250 | 250 | 85 | 10.5 | 331 | 251 | 30 | 30 | |
| 17130 | SL250V | 250 | 80 | 8.0 | 323 | 243 | 30 | 30 |
