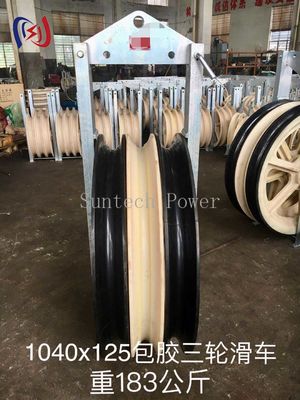

1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools

1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools
1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools 1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools

Large Image :  1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools Get Best Price

Product Details:
Place of Origin: Ningbo, China
Brand Name: Suntech
Certification: ISO9001
Model Number: SHDN1040
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Wooden Case
Delivery Time: 7-15days
Payment Terms: L/C,T/T
Supply Ability: 1000 PCS/Month
Contact Now
Detailed Product Description
Name: 1040 Series Stringing Block Sheave: 1/3/5
Rated Load: 50-200KN Weight: 62-330KG
Sheave Features: MC Nylon Or Middle: MC Nylon Sheave Conductor: Rubber Lined MC Nylon Sheave Warranty: 1 Year
Explain: Maximum Suitable Conductor ACSR1120
Highlight:

1040 Series Large Rope Pulley

,

Large Rope Pulley Customized

,

Overhead Transmission Line Pulley

1040 Series Large Rope Pulley Customized Overhead Transmission Line Tools
Product Description

1040 Series Stringing Block Customized Overhead Transmission Line Tools

Suntech Power Tools, located in southeast China, is a leading manufacturer of power tools in the region. We specialize in producing cable pulling tools, hydraulic tensioners, and pullers for transmission work. All products are manufactured per ISO 9001:2008 standards and exported to over 50 countries worldwide.

Key Features
  • Maximum suitable conductor: ACSR1120
  • Sheave dimensions: 1040×900×125mm (outside diameter × root diameter × sheave width)
  • Standard type features full rubber lining for wire wheel (half rubber lining available upon request)
  • Customization options available for stringing blocks, cable rollers, and cable jack stands
  • No minimum order quantity (MOQ) requirements for construction safety tools
Product Specifications

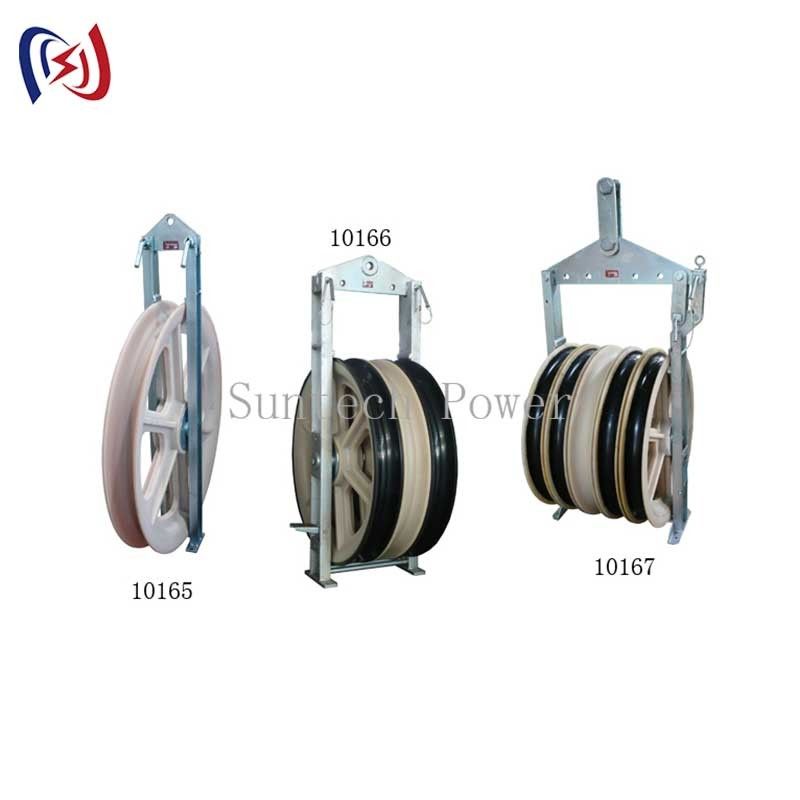

Item No. Model Rated Load Weight Sheave Sheave Features
10165 SHDN1040 50 62 1 MC nylon sheave
10166 SHSQN1040 100 200 3 Middle: MC nylon sheave
Conductor: rubber lined MC nylon sheave
10167 SHWQN1040 200 330 5

Tag:

large rope pulley,

large cable pulleys,

universal stringing block
