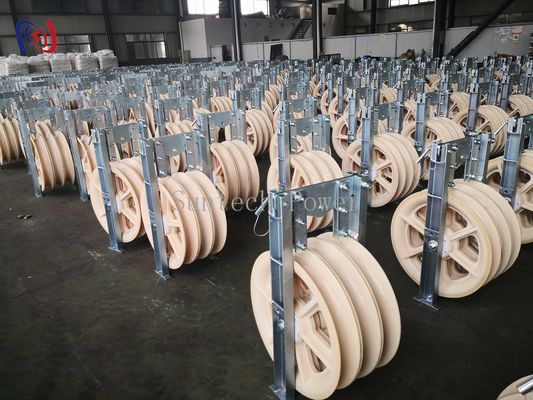

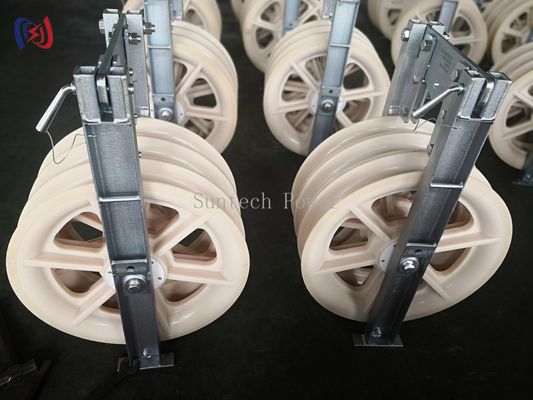

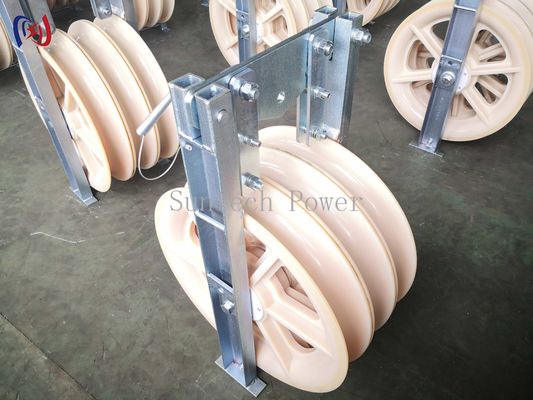

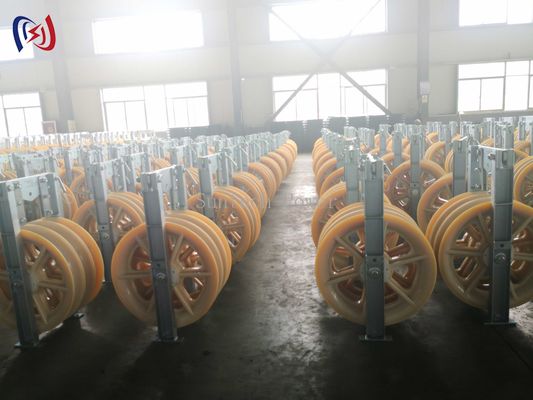

Conductor ACSR500 Universal Stringing Block 60KN Large Cable Pulleys
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | 660 Series Stringing Block | Item No.: | 10121-10128 |
|---|---|---|---|
| Sheave: | 1/3/5 | Rated Load: | 20-60KN |
| Weight: | 30-150KG | Warranty: | 1 Year |
| Highlight: | Conductor ACSR500 Universal Stringing Block,Universal Stringing Block 60KN,60KN Large Cable Pulleys |
||
Conductor ACSR500 Universal Stringing Block 60KN Large Cable Pulleys
660 Series Stringing Block Maximum Suitable Conductor ACSR500
Product Specifications
This 660×100mm Large Diameter Stringing Block features dimensions (outside diameter × groove bottom diameter × sheave width) of Φ660 × Φ560 × 100 (mm). Designed for maximum conductor ACSR500 (aluminum cross section of 500mm²) with maximum passing diameter of 75mm. Compatible with J500B Splicing Sleeve Protector.
Configuration Options
- Sheave Count: Available in single, three, five, and seven sheave configurations
- Conductor Capacity: Supports single conductor, double bundle, four bundle, and six bundle conductors
- Material Options: MC nylon, aluminum alloy, nylon coated rubber, aluminum coated rubber, or steel intermediate sheave
- MC Nylon Variant: 110mm wheel width supports ACSR630 conductor (630mm²) with 85mm passing diameter and J630B Splicing Sleeve Protector
Technical Specifications
| Item Number | Model | Number of Sheaves | Rated Load (kN) | Weight (kg) | Features |
|---|---|---|---|---|---|
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 | Middle: Cast steel sheave Conductor: Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | Middle: Cast steel sheave Conductor: Rubber lined aluminium sheave |
| 10124 | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSN660 | 3 | 40 | 86 | Middle: MC nylon sheave Conductor: Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | Middle: MC nylon sheave Conductor: Rubber lined aluminium sheave |
| 10127 | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128 | SHWQN660 | 5 | 60 | 110 | MC nylon sheave |
| 10130 | SHQ660A | 7 | 75 | 190 | Middle: cast steel sheave Conductor: MC nylon sheave |
Manufacturer Information
Suntech Power Tools, located in southeast China's Power Tools Leading City, specializes in cable pulling tools and hydraulic tension equipment for transmission work. Our ISO 9001:2008 certified products are exported to over 50 countries worldwide.
We offer OEM services and custom solutions for stringing blocks, cable rollers, jack stands, and construction safety tools with no minimum order quantity requirements.
