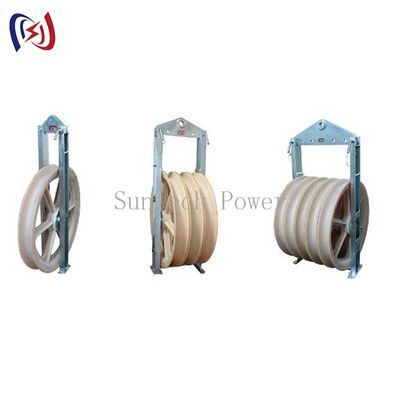

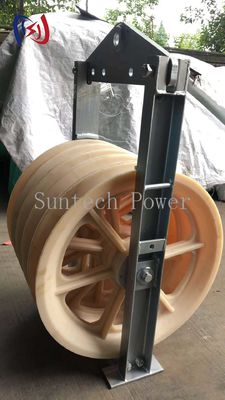

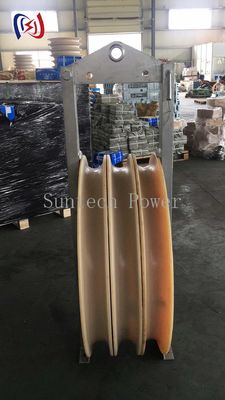

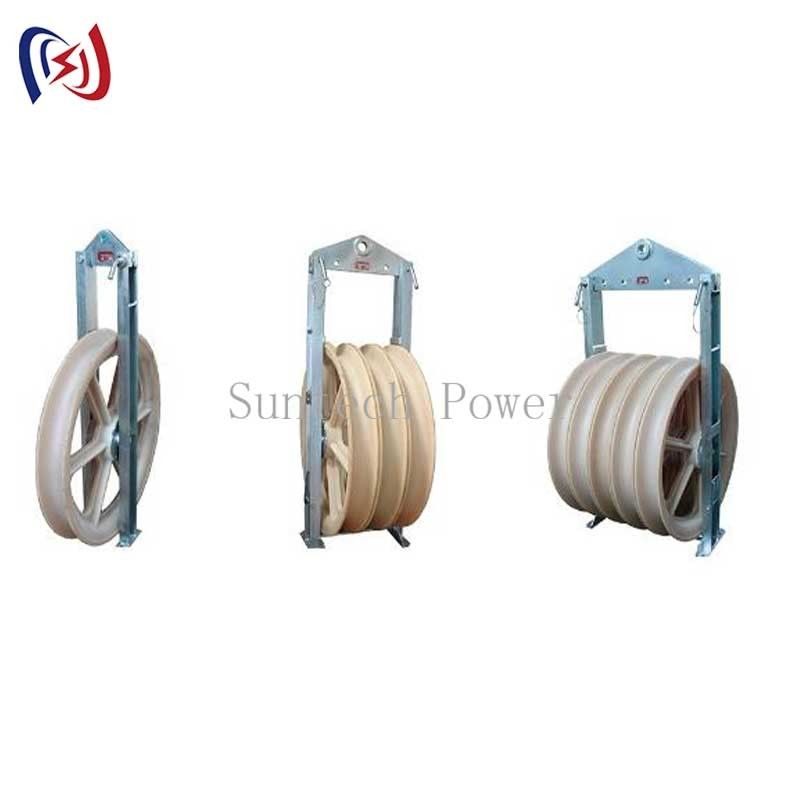

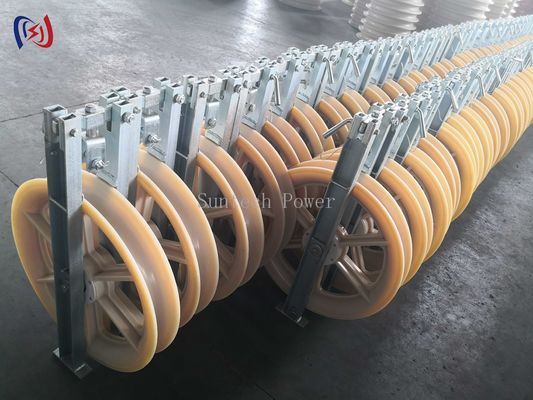

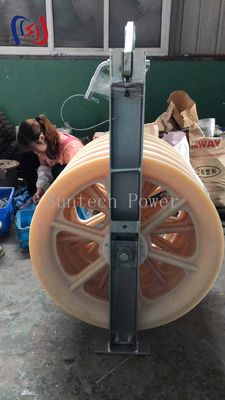

30-150KN Large Diameter Rope Pulley ACSR630 Conductor Stringing Blocks

Large Image : 30-150KN Large Diameter Rope Pulley ACSR630 Conductor Stringing Blocks Get Best Price

Product Details:

Place of Origin:	Ningbo, China
Brand Name:	Suntech
Certification:	ISO9001
Model Number:	SHDN822

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	Negotiable
Packaging Details:	Wooden Case
Delivery Time:	7-15days
Payment Terms:	T/T,L/C
Supply Ability:	1000 PCS/Month

Contact Now

Detailed Product Description

Name:	822 Series Stringing Block	Item No.:	10141-10148
Sheave:	1/3/5/7/9	Rated Load:	30-150KN
Weight:	40-445KG	Sheave Features:	MC Nylon Sheave
Warranty:	1 Year
Highlight:	150KN Large Diameter Rope Pulley , Large Diameter Rope Pulley ACSR630 , ACSR630 Conductor Stringing Blocks

30-150KN Large Diameter Rope Pulley ACSR630 Conductor Stringing Blocks

822 Series Stringing Block Maximum Suitable Conductor ACSR630

The 822 Series Stringing Blocks are engineered for high-performance conductor stringing operations, specifically designed to handle ACSR630 conductors with maximum efficiency and durability.

Key Features

Maximum suitable conductor ACSR630
Sheave dimension (outside diameter × root diameter × sheave width): Φ822×Φ710×110
Rubber lined MC nylon sheave for conductor (customizable options available)

Technical Specifications

Item Number	Model	Number of Sheave	Rated Load (KN)	Weight (kg)	Sheave Features
10141	SHDN822	1	30	40	MC nylon sheave
10142	SHSQN822	3	60	118	MC nylon sheave
10143	SHWQN822	5	120	180	MC nylon sheave
10146A	SHWQQN822	7	120	250	MC nylon sheave
10146	SHQ822	7	120	285	Middle: cast steel sheave
10148	SHJ822	9	150	445	Conductor: MC nylon sheave
10141A	SHDL822	1	30	45	Aluminum Sheave
10141B	SHDLJ822	1	30	48	Rubber lined aluminium sheave

About Suntech Power Tools

Located in southeast China, the origin of power tools manufacturing, Suntech Power Tools specializes in cable pulling tools and hydraulic tension equipment for transmission work. Our products are ISO 9001:2008 certified and exported to over 50 countries worldwide.

We offer OEM services and customization options for stringing blocks, cable rollers, jack stands, and construction safety tools with no minimum order quantity requirements.
