Aluminum Alloy Electrical Gin Pole for Tower Eretion Concrete Electric Pole
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Range: | 8-32M | Section: | 300mm-700mm |
|---|---|---|---|
| Main Part Size: | 50mm-80mm | Accessory Size: | 25mm-50mm |
| Safety Factor: | 2.5K | Weight: | 10.5KG/M-75KG/M |
| Highlight: | electrical crowbar hand tools,electrical tower erection tools |
||

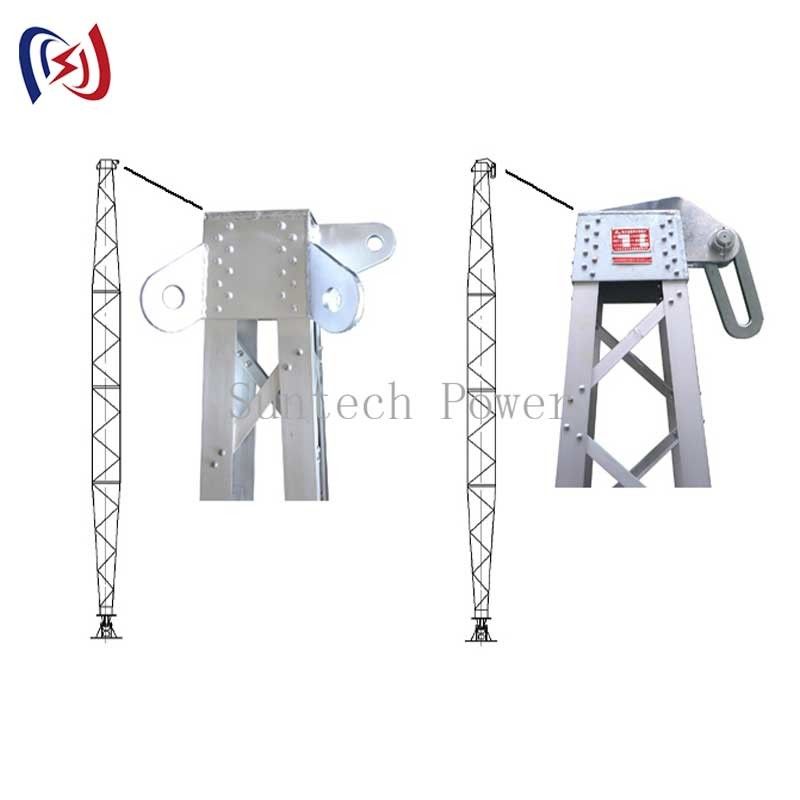

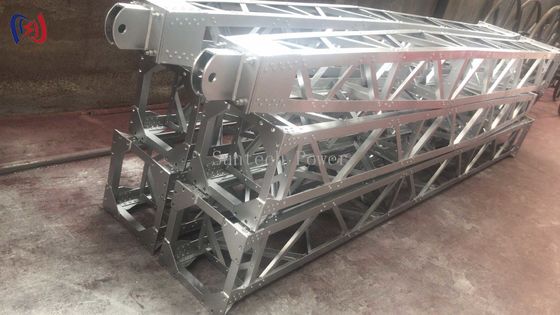

Aluminum Alloy Electrical Gin Pole for Tower Erection Concrete Electric Pole
Use and Characteristics
Designed for transmission and distribution line engineering, this aluminum alloy gin pole is used for sling tower material and positioning pulley set applications.
• Single-arm design allows unrestricted directional use for convenient operation

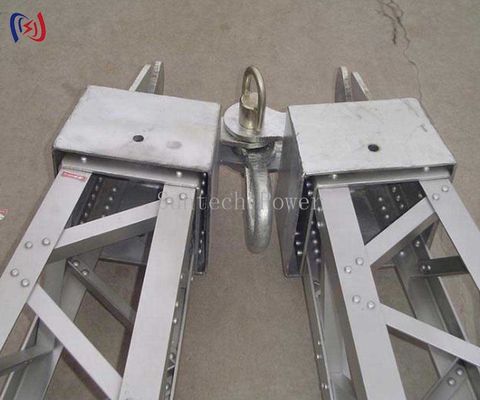

• Constructed with right-angle aluminum titanium alloy sections for durability
• Rivet joint construction ensures portability and long service life
Quality Control

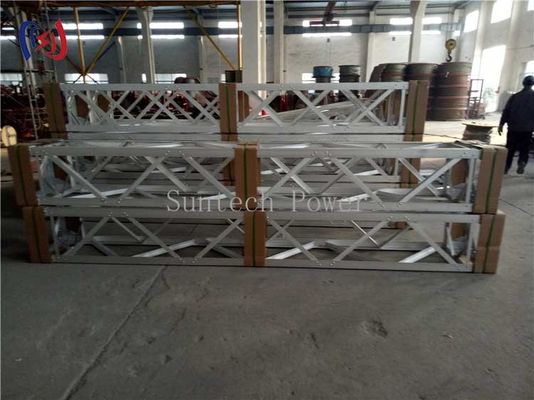

Our complete production facilities and professional team manage the entire process from manufacturing to packaging. All products undergo 100% testing before delivery to guarantee quality.
Our Values
1. Commitment to first-class quality and service excellence
2. Responsibility-driven success through scientific management
3. Customer-focused approach with quality craftsmanship and leading technology
Technical Specifications
| Item Number | Model | Range (M) | Section (MM) | Main Part Size (MM) | Accessory Size (MM) | Vertical Load (KN) | Safety Factor (K) | Weight (KG/M) |
|---|---|---|---|---|---|---|---|---|
| 03131 | LBNX-300A | 8-16 | 300*300 | 50*50*4 | 25*25*3 | 13-38 | 2.5 | 10.5 |
| 03141 | LBNX-300B | 11-18 | 300*300 | 50*50*5 | 30*30*3 | 15-40 | 2.5 | 11.0 |
| 03151 | LBNX-400 | 12-20 | 400*400 | 50*50*5 | 30*30*3 | 14-43 | 2.5 | 14.6 |
| 03511 | LBNX-500A | 12-20 | 500*500 | 60*60*5 | 30*30*3 | 34-75 | 2.5 | 18 |
| 03515 | LBNX-500B | 14-22 | 500*500 | 60*60*5 | 40*40*3 | 2.5 | 20 | |
| 03521 | LBNX-500C | 15-23 | 500*500 | 70*70*6 | 40*40*3 | 42.88 | 2.5 | 21 |
| 03525 | LBNX-500D | 17-25 | 500*500 | 70*70*6 | 50*50*4 | 2.5 | 22 | |
| 03531 | LBNX-600A | 15-23 | 600*600 | 60*60*6 | 40*40*3 | 38.75 | 2.5 | 20 |
| 03535 | LBNX-600B | 17-25 | 600*600 | 70*70*6 | 40*40*3 | 2.5 | 21 | |
| 03541 | LBNX-600C | 17-25 | 600*600 | 70*70*6 | 50*50*4 | 58.119 | 2.5 | 22 |
| 03545 | LBNX-600D | 17-25 | 600*600 | 75*75*6 | 50*50*4 | 2.5 | 24 | |
| 03601 | BNX-300 | 10-15 | 300*300 | 50*50*5 | 30*30*3 | 17-35 | 2.5 | 33 |
| 03602 | BNX-400 | 12-16 | 400*400 | 50*50*5 | 30*30*3 | 29-51 | 2.5 | 43 |
| 03603 | BNX-500 | 16-24 | 500*500 | 63*63*6 | 30*30*3 | 41-93 | 2.5 | 54 |
| 03604 | BNX-600 | 16-32 | 600*600 | 70*70*6 | 40*40*4 | 72-221 | 2.5 | 63 |
| 03605 | BNX-700 | 20-32 | 700*700 | 80*80*6 | 40*40*4 | 115-294 | 2.5 | 75 |
