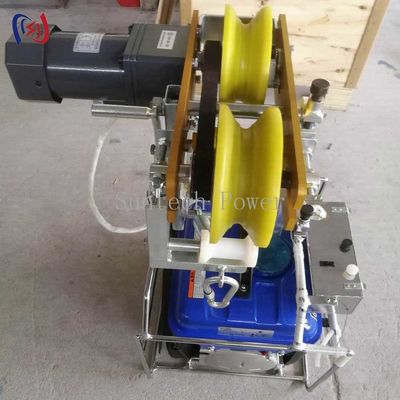

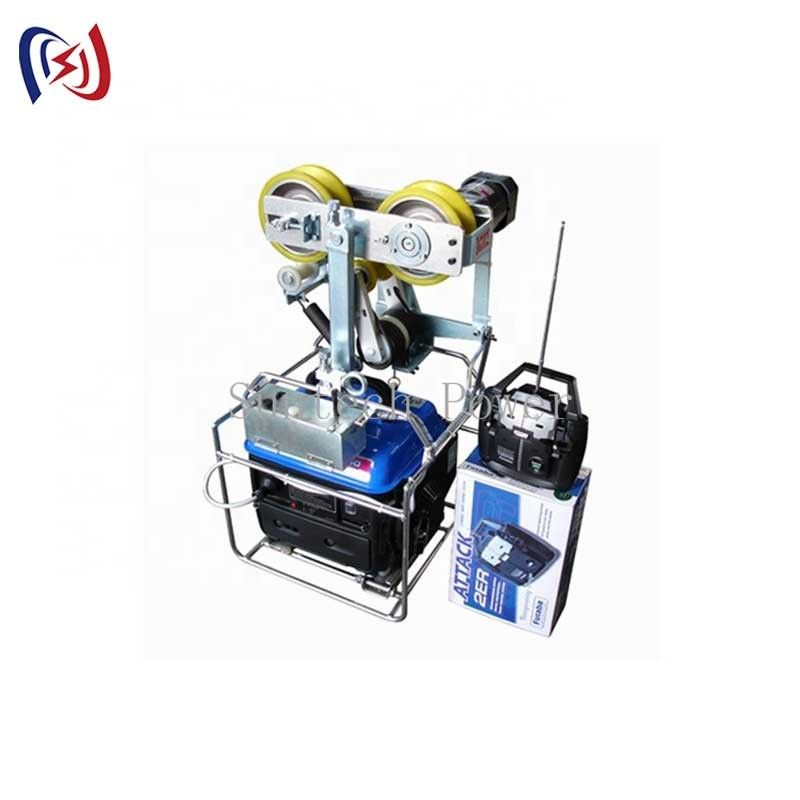

Self Moving Cable Winch Machine 350N Cable Pulling Machine
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Self-Moving Traction Machine | Item No.: | 20121 |
|---|---|---|---|
| Model: | ZZC350 | Block Passed Diameter Range: | 9-13mm |
| Maximum Creeping Angle: | 31 | Gasoline Engine: | YAMAHAET950 |
| Driving Dynamo Type: | 100 YYJ140-3(140W) | Running Speed: | 17m/Min |
| Horizontal Pull: | 350N | Weight: | 46.5KG |
| Highlight: | Self Moving Cable Winch Machine,350N Cable Pulling Machine,Cable Winch Machine 350N |
||
Self Moving Cable Winch Machine 350N Cable Pulling Machine
High-Efficiency Self-Moving Traction Machine - 60% Faster Than Manual Pulling Methods
The Self-Moving Traction Machine is a state-of-the-art cable and pipeline installation system designed for underground, trench, and conduit operations. Featuring an 8000kg (17,637lb) pulling capacity, this machine delivers precise tension control through its hydraulic drive system, ensuring smooth and efficient cable installation. The self-moving capability allows for autonomous operation, reducing labor requirements by 70%.
Key Features:
- Hydraulic Drive System - Provides consistent power and smooth operation
- Auto-Brake Function - Ensures safe load holding during operation
- Self-Moving Mechanism - Reduces manual labor and increases efficiency
- Weatherproof Construction - IP67-rated for all-weather use
Performance Benefits:
- Pulls 100m (328ft) of 4" conduit cable in 10 minutes
- 20,000+ pulling cycles before first maintenance
- 8000kg maximum pull force for heavy-duty applications
- 60dB operation - Quiet enough for urban areas
Technical Specifications:
- Model: ZZC350
- Pulling Capacity: 35T
- Drive System: Hydraulic
- Line Speed: 15m/min (49ft/min) under load
- Rope Capacity: 100m (328ft) synthetic rope
- Compliance: ISO 9001
- Warranty: 1 year
Ideal Applications:
- Underground power cable installation
- Telecom fiber optic line pulling
- Industrial conduit wiring
- Bridge and tunnel cable projects
| Item No. | 20121 |
|---|---|
| Model | ZZC350 |
| Block passed diameter range(mm) | Φ9-Φ13 |
| Maximum creeping angle(°) | 31 |
| Gasoline Engine | YAMAHAET950 |
| Driving dynamo type | 100YYJ140-3(140W) |
| Remote control linear distance(m) | 300~500 |
| Dimension(mm) | 422*480*758 |
| Running speed(m/min) | 17 |
| Horizontal pull(N) | 350 |
| Weight(KG) | 46.5 |
